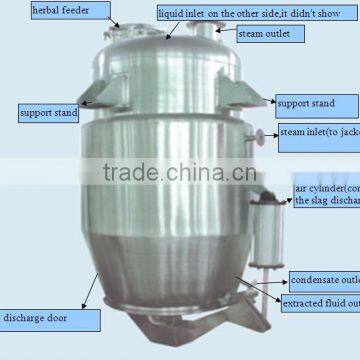

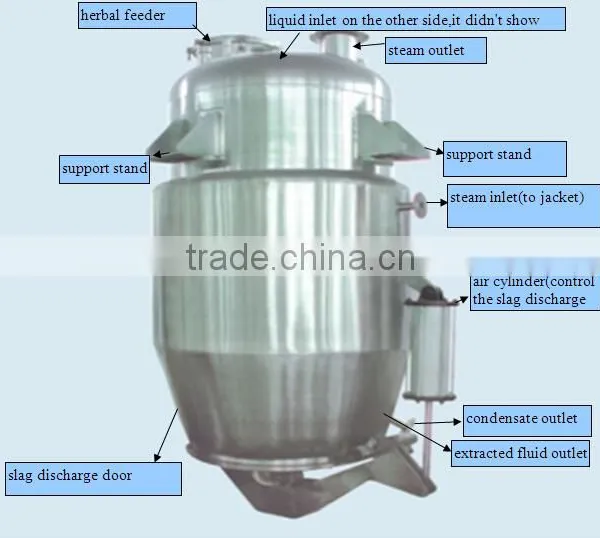

2000L herbal plant extraction equipment
The equipment seerves as normal pressure,temperature dip,thermal influx and compel lent cycle,infiltration and extraction of aroma oil and reclaim of organic solvent,etc in such industries as pharmacy,vegetable,animal,food and chemistry.especially effective in the case of dynamic extraction or inverse extraction,featuring short time of extraction and high pharmacy content.
Technology parameter
Model and specification | TQ-Z-1 | TQ-Z-2 | TQ-Z-3 | TQ-Z-4 | TQ-Z-6 | TQ-Z-8 |
Volume(L) | 1200 | 2300 | 3200 | 4300 | 6300 | 8500 |
Designed pressure inside pot(Mpa) | 0.09 | |||||
Jacket design pressure(Mpa) | 0.3 | |||||
Material imputting diameter(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area(m2) | 3 | 4.7 | 6.8 | 8 | 10 | 12 |
Condensing area(m2) | 4 | 5.4 | 8 | 10 | 10 | 15 |
Cooling area(m2) | 1 | 1 | 1 | 1 | 2.2 | 2.2 |
Filtering area(m2) | 0.25 | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 |
Residue exhausting diameter(mm) | 800 | 800 | 800 | 800 | 1000 | 1000 |
Steam cost(kg/h) | 285 | 346 | 570 | 660 | 718 | 903 |
Water cost(t/h) | 2.1 | 2.5 | 4.2 | 4.5 | 5.5 | 6.7 |
Heating steam orifice(mm) | 32 | 32 | 40 | 40 | 50 | 50 |
Gas exhausting orifice(mm) | 100 | 100 | 125 | 125 | 150 | 150 |
Cooling water pipe atifice(mm) | 40 | 40 | 50 | 50 | 50 | 65 |
Motor power(KW) | 2 | 3 | 4 | 5.5 | 5.5 | 7.5 |
Agitating speed(r/min) | 24 | 24 | 24 | 36 | 36 | 36 |
The matching facilities include collecting machine, cooler, filter, oil-water separator and cylinder operating plate.

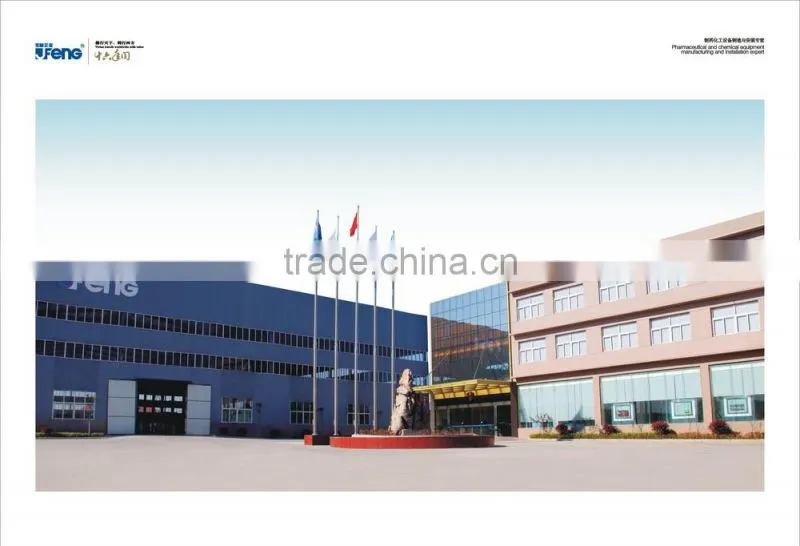

Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
We sincerely look forward to building long-term and mutually beneficial business relationships with our
distinguished customers.
Applications of our product:

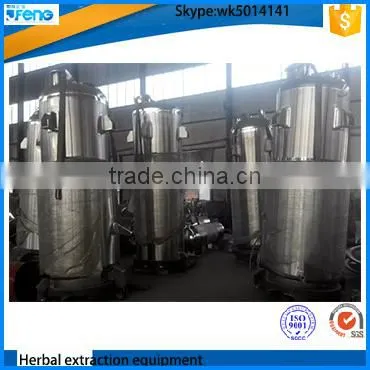

The herbal extraction equipment is used in chinese medicine process
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
