QN-1000 Series Spherical Stainless Steel Vacuum Distillation Concentrator

Jiangsu Jufeng Machinery Co., Ltd.

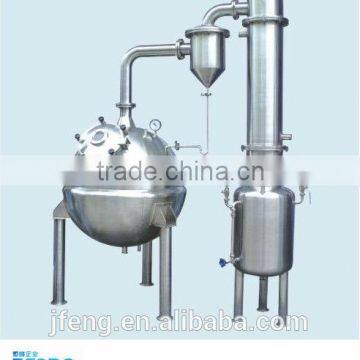

QN-1000 Series Spherical Stainless Steel Vacuum Distillation Concentrator thumbnail-1

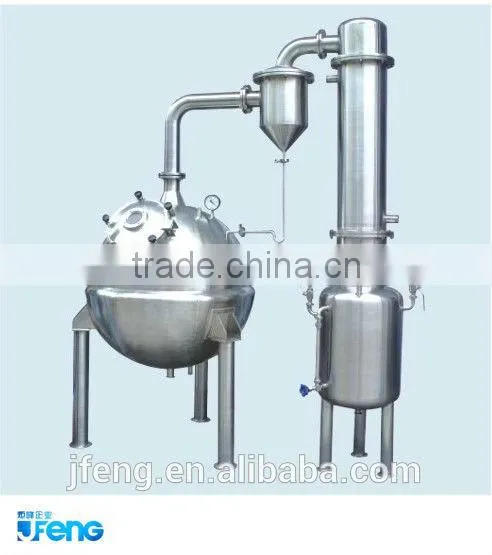

QN-1000 Series Spherical Stainless Steel Vacuum Distillation Concentrator photo-1
US$ 10,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Pharmaceutical Processing
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo /Qingdao/lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pharmaceutical Processing
Power Source Electric
Process Vacuum Distillation
Place of Origin Jiangsu, China
Brand Name JFeng
Model Number JFQN
Voltage 380V
Power(W) according to capacity
Dimension(L*W*H) according to capacity
Weight according to capacity
Certification ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



QN-1000 series spherical stainless steel vacuum distillation concentrator

Product Description

 Application

The sphere concentration pot mainly by the concentration pot main body, the condenser, the steam fluid separator, is composed the fluid barrel four parts, may use in to manufacture drugs, profession and soon food, chemical industry to material craft and so on fluid concentration, distillation and organic solvent recycling. Because uses the reduced pressure concentration, therefore the concentration time is short, also cannot destroy  the material active principle. This equipment and the material contact are partial is the stainless steel manufacture, has the good anti-corrosive performance ,durable, conforms to the GMP medicine standard.

 Technical parameter

Specification

Model

QN-300

QN-500

QN-700

QN-1000

Evaporation quanity

(kg/h)

70

120

145

195

Nominal volume

(L)

300L

500L

700L

1000L

Inside diameter of ball(mm)

800

990

1115

1250

Steam pressure

(Mpa)

0.09

Vacuum degree

(Mpa)

0.06-0.07MPa

Heats up the area

(m2)

1.1

1.6

2

2.5

Condensation area

(m2)

2.4

3.2

3.5

4.5

Equipment weight

(kg)

380

450

630

950

steam consumption(kg/h)

77

132

159

214

water consumption(T/h)

2

4

6

7

steam inlet(mm)

25

25

40

40

water inlet and outlet(mm)

30

30

40

40

Out size(mm)

L

1900

2030

2100

2335

W

1100120013001520
 h 2300 2500 2500 2765



QN-1000 series spherical stainless steel vacuum distillation concentrator

QN-1000 series spherical stainless steel vacuum distillation concentrator

QN-1000 series spherical stainless steel vacuum distillation concentrator

Company Information

With the development of market demands and the improvement of production technology, the company is gradually increasing its business range, which includes fruit juice, beverage, dairy turn-key projects, biological engineering, pharmaceutical engineering, sanitary fluid fittings, etc.

QN-1000 series spherical stainless steel vacuum distillation concentrator

Our Services

Jufeng enterprise is a professional diversfied machinery manufacturer integrating design,  development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.



 QN-1000 series spherical stainless steel vacuum distillation concentrator



FAQ



About Delivery time

Q-----What’s the delivery term for making business with us?

A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;



About Lead Time

Q------What’s the lead time after placing order?

A------Usually it takes about 25~30 days after we received your deposit.

     However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.



About Payment Term

Q------What’s the Payment Term?

A------ By T/T in Advance, or Irrevocable L/C at Sight.



Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
