US$ 5,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food Processing
Process:
Drum Evaporator
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double- Effect EvaporatorUS$ 5,000 - 100,000MOQ: 1 Set -
Evaporator For Food ProcessingUS$ 5,000 - 100,000MOQ: 1 Set
-
QN-100 Series Vacuum ConcentratorUS$ 5,000 - 15,000MOQ: 1 Perch
-
TQ Series Multi-functional Extracting TankUS$ 2,000 - 6,000MOQ: 1 Set
-
SJN2 Double Effect Evaporator for Liquid MaterialsUS$ 5,000 - 50,000MOQ: 1 Unit
Condition
New
Application
Food Processing
Process
Drum Evaporator
Place of Origin
Jiangsu, China
Brand Name
JF
Model Number
JF
Voltage
according to different capacity
Power(W)
according to different capacity
Dimension(L*W*H)
according to different capacity
Weight
according to different capacity
Certification
ISO9001,TUV
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

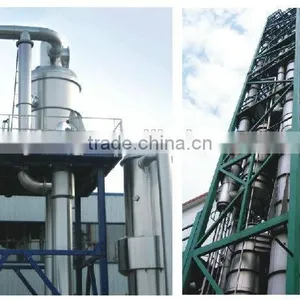

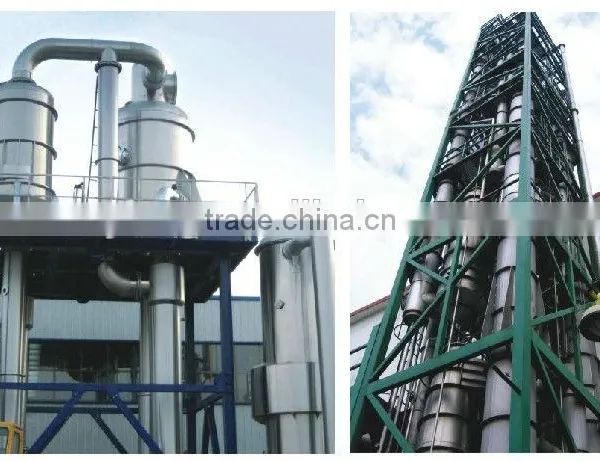

Double Effect Evaporator
1.The equipment adopting two effects down falling film to evaporate the water in the milk and friut juice.
2.The equipment is mainly composed of evaporator, separator, condenser, etc. It is widely used for concentration and dehydration in food, biology, pharmacy, chemical industry, etc.
3.Automatic control:manual operated and full auto control
Characteristics
1. Full closed process, fast and low temperature evaporation;
2. Heating fast with high efficiency and hard to produce the deposit on the machine's inside wall;
3. Large scale of the concentrate ratioas the products between the different effects can recycle separately, so the concentrate ratio can be regulated in large scale;
4. The machine attach with spraying ball and self CIP system.
EQUIPMENT CHARACTERISTICS
We integrated the highlight of imported concentration equipment with that of the counterparts, based on the characteristics of the material, research and develop SJM type three- effect (double effect, single effect) falling-film continuous feeding concentrator. The equipment feature is as follows:
1. Continuous feeding and discharge, stable and convenient operation. The only operation package of setting of different parameters at the beginning of feeding, assurance of reliable and stable feeding supply and easy regulation can certainly produce continuous, stable and efficient concentration, get qualified density and simultaneously recover solvent.
2. Large concentration density, (1.25-1.28), high heat efficiency and effective energy-saving fruit. To this system, we used optimum to leave a vaporization heat transmission coefficient of 3400-3800w(m2.k),which is very benefit to concentration of Chinese extraction liquid. The cause for it is that the material flows quickly with the form of film inside the acceleration pipe, and simultaneously, the temperature difference for heat is somewhat small, (just 8-10°C ).The material can form quick flashing, the medicine liquid stays and be heated for short time; the adaptation scope of material viscidity is wide, (50-500cp); the even heating excludes crystallization, and then to deposition and even coke. So it features little destroy to effective element, full utilization of heat energy and fruitful energy-saving.
3. Convenient to employment of advanced control mode. The temperature index for series SJM concentration flow is mainly subject to the temperature of each of effect. Each of parameter keeps stable during system performance, which benefits the utilization of advance control unit featuring (PLC and man- machine interface control) and leaves the lower cost of control equipment, makes the production of Chinese drug by automatic control great convenience.
