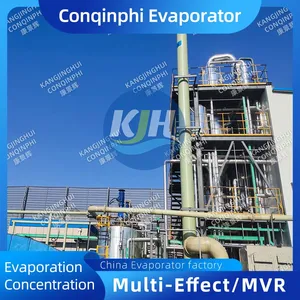

MVR Forced Circulation Evaporator System With Remote Monitoring Interface
Product Spotlights
High-efficiency MVR forced circulation evaporator with remote monitoring interface, reducing energy costs by up to 70%. Anti-scaling design handles high-solids wastewater. Customizable capacity and materials. PLC/HMI control with Ethernet/Modbus/4G connectivity for real-time data access. Trusted manufacturer with ISO certifications and global delivery.
US$ 6480 - 785000
MOQ: 1 Combo
Key Specifications
Get Latest Price
Material:
Other, Stainless Steel 316L / 304
Certification:
Other, ISO9001
Evaporation Capacity:
1 – 100 tons/day
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Related Products
-
MVR Forced Circulation Evaporator System for High-Concentration Wastewater TreatmentUS$ 6480 - 785000MOQ: 1 Combo -
MVR Forced Circulation Evaporator With Corrosion-Resistant Titanium Heat ExchangerUS$ 6480 - 785000MOQ: 1 Combo
-
Automatic MVR Forced Circulation Evaporator for Pharmaceutical Salt RecoveryUS$ 6480 - 785000MOQ: 1 Combo
-
MVR Forced Circulation Evaporator Featuring High-Efficiency Centrifugal CompressorUS$ 6480 - 785000MOQ: 1 Combo
-
Industrial MVR Forced Circulation Evaporator With Mill Test Report and WarrantyUS$ 6480 - 785000MOQ: 1 Combo
Material
Other, Stainless Steel 316L / 304
Certification
Other, ISO9001
Evaporation Capacity
1 – 100 tons/day
Operating Temperature
50°C – 120°C
Power Supply
380V / 50Hz (customizable)
Control System
PLC + HMI with Remote Interface
Remote Interface
Ethernet / Modbus / 4G (optional)
Application Industry
Wastewater treatment, chemical, pharmaceutical
Design Type
Forced circulation with anti-scaling
As a leading manufacturer based in Qingdao, China, Qingdao Conqinphi Environmental Technology Group Co., Ltd. (established 2015) specializes in designing and producing high-efficiency evaporation systems. Our MVR Forced Circulation Evaporator System with Remote Monitoring Interface is a state-of-the-art solution for industrial wastewater concentration and zero-liquid-discharge (ZLD) processes. Built with robust forced circulation technology, this system ensures stable operation even under scaling or high-viscosity conditions, while the integrated remote interface allows real-time control and data logging from anywhere.
Key Features & Technical Specifications
- Forced Circulation Design – Prevents fouling and scaling by maintaining high flow velocity, ideal for solutions with high solids content or tendency to crystallize.
- Mechanical Vapor Recompression (MVR) – Reuses the vapor compressor to reduce energy consumption by up to 70% compared to traditional multi-effect evaporators.
- Remote Monitoring Interface – Equipped with PLC and HMI, supports Modbus TCP, Ethernet, or 4G communication for remote access to process parameters, alarms, and historical data.
- Modular & Customizable – Available in various evaporation capacities (1 – 100 tons/day) and materials (SS304, SS316L) to match specific client requirements.
- Low Operating Cost – Minimal steam requirement; only electrical power needed for the compressor and pumps.
- User-Friendly Operation – Touchscreen HMI with intuitive interface, automatic start/stop sequence, and fault diagnosis.
| Parameter | Standard Range | Remarks |
|---|---|---|
| Evaporation Capacity | 1 – 100 t/d | Customizable for larger capacity |
| Operating Temperature | 50 – 120 °C | Dependent on solution nature |
| Power Supply | 380V / 50Hz (3-phase) | Optional 440V/60Hz |
| Compressor Type | Centrifugal or Roots | Based on capacity |
| Material | SS304 / SS316L | Other alloys available on request |
| Remote Communication | Ethernet / Modbus / 4G | Enables SCADA integration |
Advantages for Your Business
- Reduced Energy Costs: The MVR technology typically consumes only 20–40 kWh per ton of evaporated water, drastically cutting your utility expenses.
- Minimized Downtime: Forced circulation reduces scaling, so cleaning intervals are longer – saving labor and chemical costs.
- Enhanced Process Control: With the remote monitoring interface, your maintenance team can oversee multiple units from a central location, receive instant alerts, and adjust parameters without being physically present.
- Reliable Performance: Our systems are built with heavy-duty components and undergo strict quality checks, supported by our ISO9001 and ISO14001 certified management systems.
- Compliance & Sustainability: Help meet environmental regulations by achieving high concentration ratios and clean distillate for reuse or disposal.
At Qingdao Conqinphi Environmental Technology Group, we have over 8 years of experience in manufacturing evaporation systems, with an annual export value exceeding US$10 million. Our factory spans 10,000–30,000 square meters and employs 200+ skilled engineers and technicians. We have successfully supplied systems to markets across North America, Europe, Southeast Asia, and the Middle East. Each system is thoroughly tested before shipment and supported by our responsive after-sales team. Whether you need a standard model or a fully customized solution, we are ready to provide detailed proposals and technical drawings.
Frequently Asked Questions
-
What is the typical energy saving of an MVR forced circulation evaporator compared to traditional evaporators?
Our MVR system can reduce energy consumption by 60–70% compared to single-effect evaporators, and 30–50% versus multi-effect ones, thanks to vapor recompression. -
Can the remote monitoring interface be integrated with existing SCADA systems?
Yes, the standard interface supports Modbus TCP and Ethernet protocols. Custom integration with other protocols (e.g., Profibus, OPC) is available upon request. -
What is the recommended maintenance schedule for this evaporator?
Routine inspection of seals, compressor oil, and control components is recommended every 3 months. Full cleaning of heat exchangers may be needed every 6–12 months depending on feed water quality. -
How do you handle solutions with high scaling potential?
The forced circulation design maintains high velocity (≥1.5 m/s) inside tubes, which significantly reduces scaling. Anti-scaling additives or periodic CIP cleaning can also be advised. -
What is the lead time for a custom system?
Standard models ship within 30–45 working days; custom designs typically require 60–90 days depending on complexity and material availability. -
Do you provide installation supervision and training?
Yes, we offer on-site supervision for installation and commissioning, as well as remote or on-site training for your operators. Optional service packages are available. -
What warranty do you offer?
Our standard warranty is 12 months from the date of commissioning, covering defects in materials and workmanship. Extended warranty plans can be negotiated. -
Can the system handle fluctuating feed flow rates?
Yes, the PLC controls adjust compressor speed and feed pump frequency to maintain stable evaporation under variable inflow. A buffer tank is recommended for extreme fluctuations.
Contact us today for a detailed quotation or to arrange a technical consultation. Let our team help you achieve efficient, cost-effective evaporation with world-class remote monitoring capabilities.
