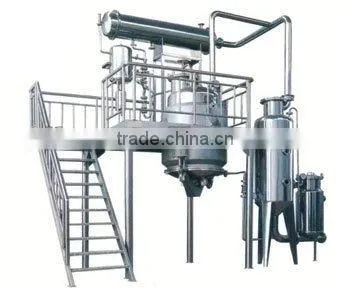

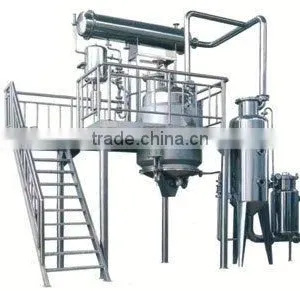

Help CenterJFDE Series Dual-effect Evaporator
Related Products
Item: extraction and concentration unit
Material: SUS304/316L
Volume: 100L-6000L
Application: The equipment for a variety of herbal and plant extracts the active ingredient, concentration, solvent recovery and collection of aromatic oils.
Product Overview:
1, This equipment is mainly extracted from the tank, the outer loop single-effect concentrator and other ancillary equipment, composition, structure compact, easy to operate, set extraction, concentration, solvent recovery in one.
2, the entire production process carried out in a confined state, one-time to complete the extraction, concentration operations. Ability to handle large, less solvent, extraction time and so on.
3, the temperature can be freely controlled at 48-100 °C, can achieve low temperature extraction, heat reflux, low back, low temperature concentration and other process operations, particularly suitable for processing heat-sensitive materials, and can configure the PLC control system.
Main technical parameters:
Model |
DTWZ-D-6 |
DTWZ-D-3 |
DTWZ-D-2 |
DTWZ-D-1 |
Item |
Extractor or Foreign Circulation |
Extractor or Foreign Circulation |
Extractor or Foreign Circulation |
Extractor or Foreign Circulation |
|
Tank working pressure (Mpa) |
Less than0.1 |
Less than0.1 |
Less than0.1 |
Less than0.1 |
|
Jacket working pressure (Mpa) |
Less than0.25 |
Less than0.25 |
Less than0.25 |
Less than0.25 |
|
Cylinder working pressure (Mpa) |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
0.6-0.7 |
|
Feeding Diameter mm |
450 |
400 |
400 |
400 |
|
Heating area m2 |
30 |
12 |
10 |
6 |
|
Condenser area m2 |
60 |
30 |
20 |
10 |
|
Cooler area m2 |
1.5 |
1 |
1 |
0.5 |
|
Volume m3 |
6 |
3 |
2 |
0.5 |
|
Evaporation capacity (Kg / h) |
2000 |
1000 |
700 |
300 |
Note: The above data is in standard type, can be customized according to user specific requirements. When the steam pressure> 0.1Mpa, press the pressure vessel design and manufacture.
