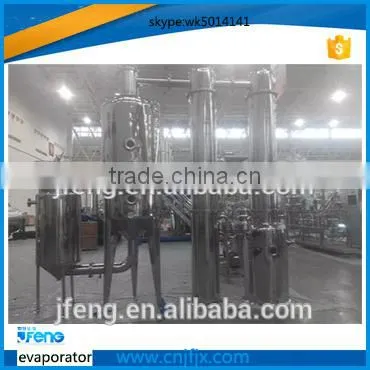

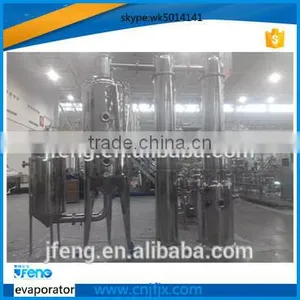

500LWZIII model multifunctional single effect vacuum concentrator
Application:
The equipment is applicable for the concentration and recovery of industrial organic solvent ( Such as alcohol) of traditional chinese medicine, Western medicine, glucose, starch sugar, oral liquid, chemical industry, food, monosodium glutamate and dairy products.It can be used in the low temperature vaccum concentraction of heat sensitive substances with small batches and large varieties.
Equipment structure:

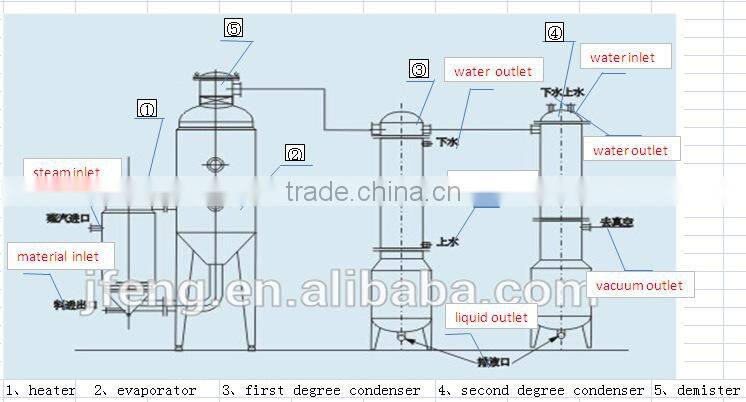

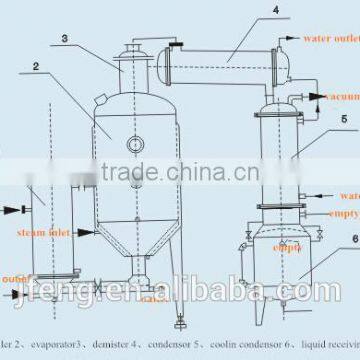

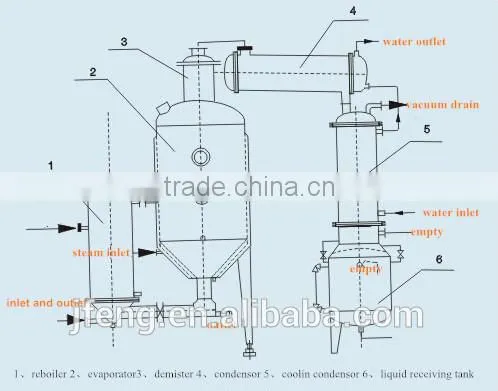

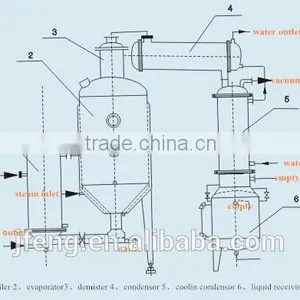

It consists of heater,evaporator,primary condenser ,second condenser,vaccum pump and so on.
Technology parameter:
| Item | Heater | Evaporator | Condenser | ||
| shell side | tube side | tank inside | shell side | tube side | |
Design pressure(MPa)
| 0.09 | 0.09 | 0.09 | 0.3 | 0.09 |
| Working pressure (Mpa) | <0.09 | -0.09 | -0.09 | 0.25 | -0.07 |
| Design temperature ( ℃) | <100 | <100 | <100 | 30~40 | <100 |
| Working temperature ( ℃) | <100 | <100 | <100 | 30~40 | <100 |
| Medium | steam | liquid medicine | liquid medicine | cooling water | flash steam |
| Main material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Volume | 1100 | ||||
| heating exchange area( square meters) | 18 | 28 | |||
| Evaporation capacity | 1000kg/h | ||||
Equipment characteristics and benefits:
1,Alcohol recovery: Large recovery capacity. Adopt vacuum concentraction process. It enhances more than 5-10 times production capacity of the same kind of equipment. The energy consumption is 30% reduced. It has the characteristics
such as small investment and high recovery benefit.
2,Liquid concentration:The equipment adopts external heating natural cycling mode and vacuum negative pressure
evaporating mode, with instantevaporation and great concentrated specific gravity up to1:3. The liquid materials are concentrated without foam under the completely sealed status. The liquid medicine concentrated from the equipment
has no pollution, and has strong flavor of medicine. The cleaning is convenient(Just open the upper and lower covers
of heater for the cleaning )The operation is convenient and the space is small. The heater and evaporator adopt stainless
steel heat preservation structure. The heater preservation adopts polyurethane foaming and the exterior surface adopts
grinding semi-luster polishing. It is in accordance with GMP medicine standard.
With the development of market demands and the improvement of production technology, the company is gradually increasing its business range, which includes fruit juice, beverage, dairy turn-key projects, biological engineering, pharmaceutical engineering, sanitary fluid fittings, etc. In August 2007, it was successfully renamed as Zhejiang Jufeng Machinery Factory and its trademark was changed into “Jufeng”. With the expansion of production scale, the company invested RMB 40 million Yuan in 2009 in establishing Jiangsu Jufeng Machinery Co., Ltd. That took an area of 25000 square meters.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
