Specifications
1,authorized by ISO9001:140012, Energy saving, high efficiency,
3,environmental protection
4,safety system
5,CE
1.SAFETY
the security system is composed of two water seals, pressure sensors, temperature sensors and safety valves
2.ENERGY SAVING
1)Flame path is designed as spiral so that quantity of heat can be fully used.
2)Tail gas recycle use by the reactor
3)catalyst helps to shorten the pyrolysis time ,saves heating fuel
3.HIGH YIELD
1. Catalyst helps to improve oil quality and oil yield
5.ENVIRONMENTAL PRODUCTION
1.waste gas
Flammable gas can be recycle used by the reactor.

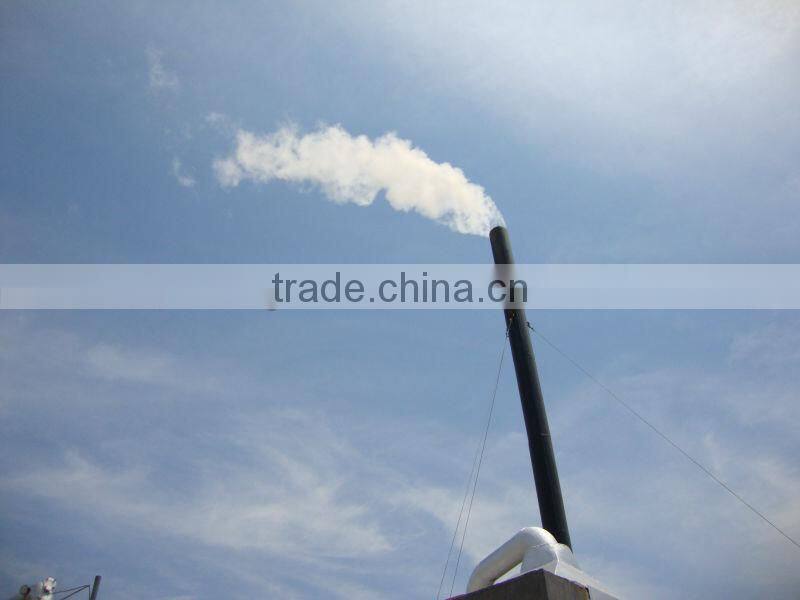

Waste smoke can be disposal by strong spray tower and activated carbon adsorption tower ,let the harmless smoke out!
2.waste water
which can use waste disposal equipment to recycling used by strong spray tower
3.waste residues
the whole production process, running in Airtight state!
use backside discharger help to save the carbon discharging time and keep the factory clean.

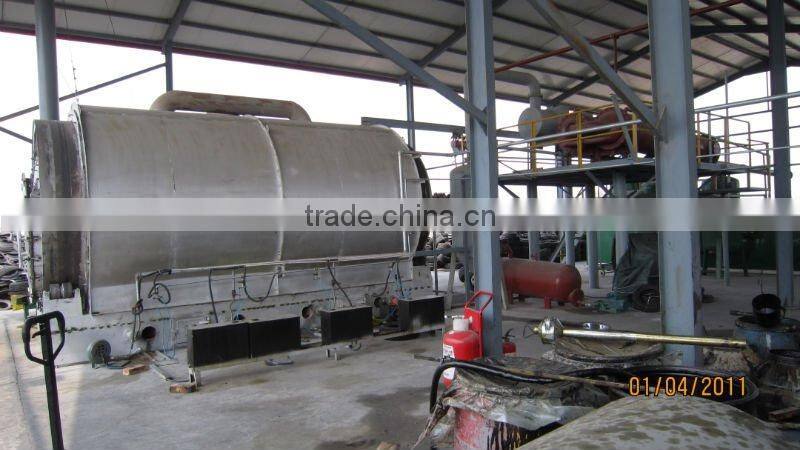

6.THE BRIEF INTRODUCTION OF PYROLYSIS EQUIPMENT
6.1. Six models as below:
NO. |
Model |
Reactor size |
volume |
capacity |
1 |
XHZT-2260 |
2200*6000mm |
23 M³ |
5 MT |
2 |
XHZT-2260 |
2200*6600mm |
25 M³ |
7 MT |
3 |
XHZT-2660 |
2600*6000mm |
32 M³ |
9 MT |
4 |
XHZT-2660 |
2600*6600mm |
35 M³ |
10 MT |
5 |
XHZT-2880 |
2800*6000mm |
37 M³ |
10 MT |
6 |
XHZT-2880 |
2800*6600mm |
41 M³ |
12 MT |
6.1.High configuration
The reactor is made of Q245R Boiler plate with 16mm thickness
Strong spray tower stainless steel
Activated carbon adsorption tower stainless steel
Draft fan stainless steel

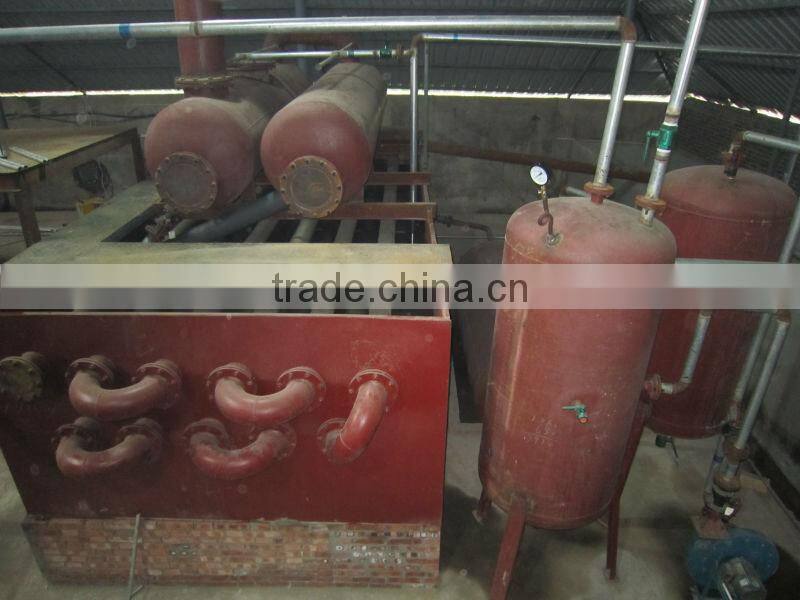

Cooling system made of 2condensor ,cooling tower &1set of calandria system
6.2. Fuel
The fuel can be coal, oil, gas & firewood.
6.3. End product percentage
Tyre oil 40%-45%, Carbon black 30%-35%, Steel wire 10%, Waste gas 10%
6.4 pyrolysis time:
Feeding time: 1.5-2hours by using auot-feeding machine
Pyrolysis time: 8-10hours
Cooling time: 2-3hours by using calandria cooling system,cooling surface around 32m³
Discharging time: 1.5-2hours by using backside discharger
6.5 Cover land:around 200Square meters
6.5. Delivery time:20-25days after we receive deposit.
6.6.We will supply the spare part for free when shipment
Supporting wheel :1set
Metal pads:each 2pcs
Temperature gauge :2pcs
Pressure gauge:2pcs
6.7. The shipment and the containers
2200*6000 |
two 40HQ containers |
2200*6600 | |
2600*6000 |
one 40FR open container and one 40HQ container |
2600*6600 | |
2800*6000 | |
2800*6600 |
6.8. FOB Port (China)
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
6.9. after-sales service
(1)We will provide the foundation drawings and catalyst formular once we receive deposit
(2)installation
we wil send 1-3 engineer to your local for guide installation and debugging
3)In normal use condition ,reactor warranty:3years,lifelong time5-6years!
