Reliable quality waste Plastic and Rubber pyrolysis machine to fuel oil plant
OUR ADVANTAGE:
a. we use the underground dedusting system , the main part of the dedusting system is called strong spray tower . it took us 4 years to get the national patent of the strong spray tower
b. we use 2 condensers and one set of calandria cooling system to make the cooling line longer and cooling surface wider to get more oil. the calandria is made from galvanized tube
d.there is frequency device in the control pannel which can adjust the speed of the reactor
e. the security system is composed of two water seals, pressure sensors, temperature sensors and safety valves

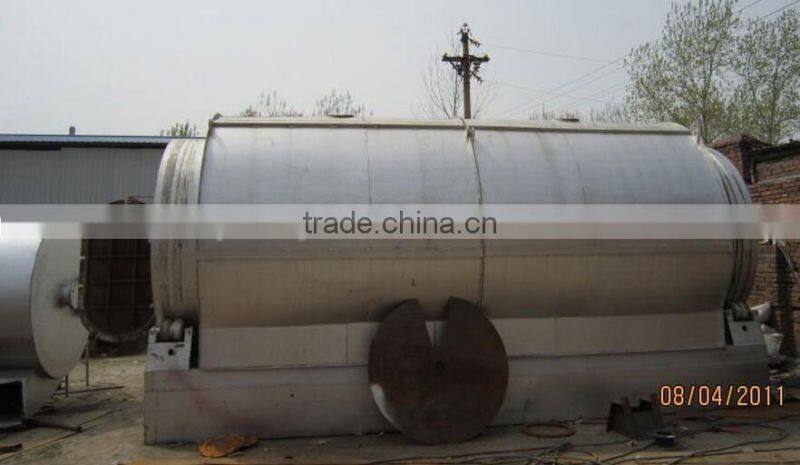

f.Integration case to keep the reactor warm

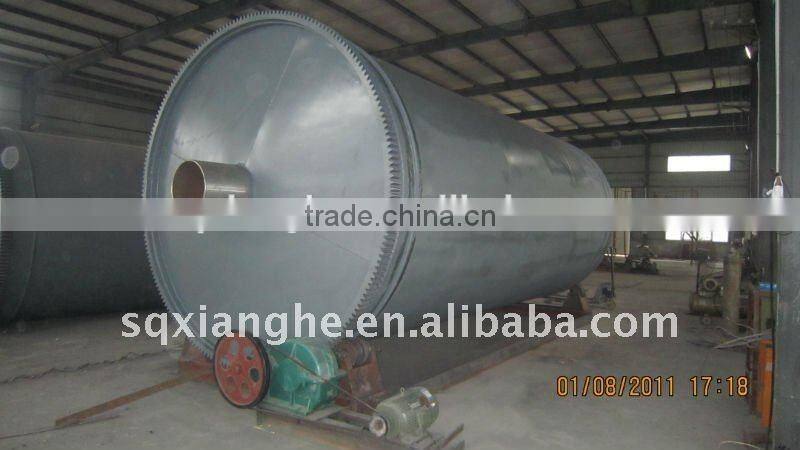

g.we adopt outer gearinggearwheel for the reactor drive
h.we adop supporting wheelwhich can bear heavy load!
I:It works in nagative pressure system ,low down pyrolysis temperature,short pyrolysis time,ensure the saftey of process
j:slaging and steel removal at same time! save time
k:continous feeding ,save labour
L:20tons capacity
BRIEF DESCRIPTION:
5.1 .Model and detail
NO |
Name |
Parameter |
1 |
The raw materials: |
waste tires, plastics and oil sludge,city solid waste |
2 |
Total Capacity: |
15 tons/day.,20 tons/day |
3 |
the size of reactor: |
2.2*6.0m, 2.2*8m |
4 |
Average oil productivity |
diesel oil: 40%-45% |
5 |
Heating material |
Wood,coal ,oil,gas |
6 |
Feeding |
Continuous feeding |
7 |
Working pressure |
Slightly nagative pressure |
8 |
Cover land |
200 square meters |

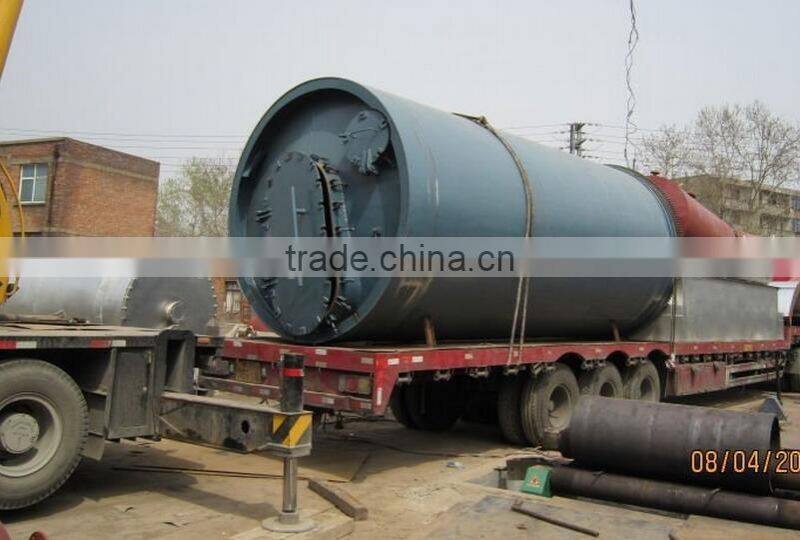

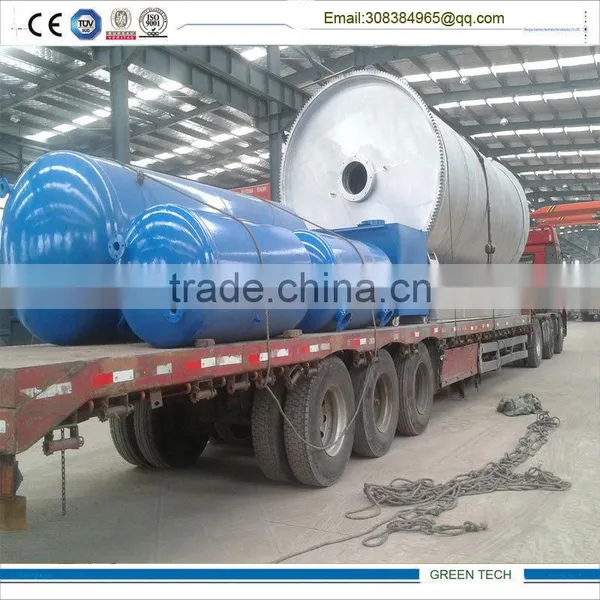

5.3. The shipment and the containers
Model |
Reactor material |
Size |
Container |
XHZT-CP10 |
Q345R alloy steel |
2200*6000*16 |
3*40HQ |
XHZT-CP15 |
Q345R alloy steel |
2200*6000*16 |
3*40HQ |
XHZT-CP20 |
Q345R alloy steel |
2200*8000*18 |
4*40HQ |

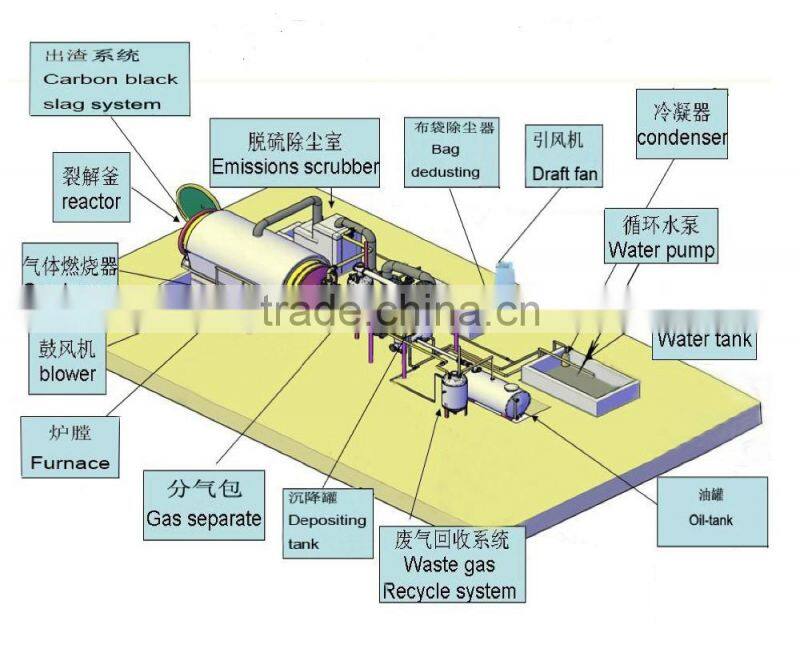

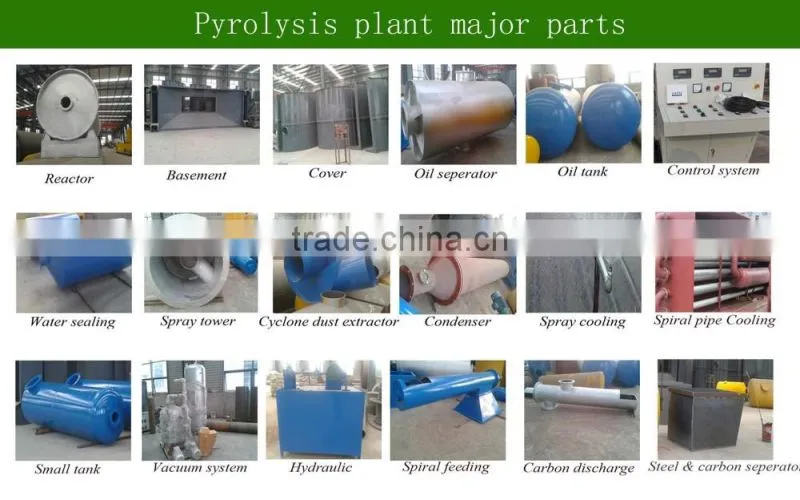

Main equipment list
1.Mainframe

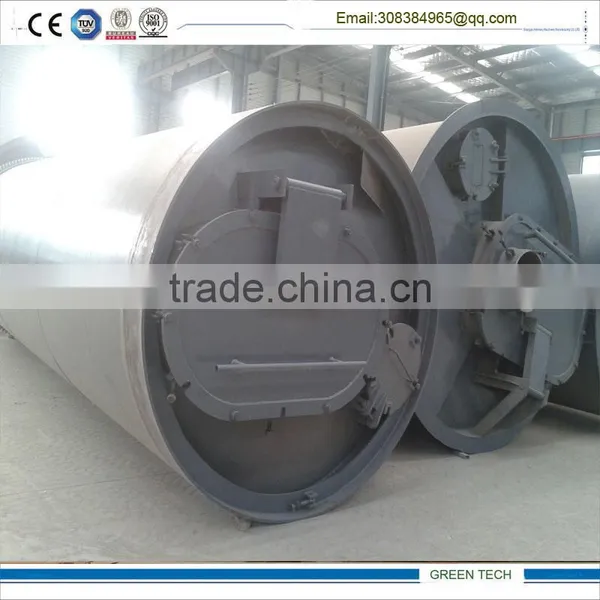

*reactor
*base
*integration case
*drive device
2.cooling
*sub-air package
*catalyst tower
*condenser
*cooling pool
*cooling system
*oil-water separater
*water sealing
3.dusting disposal
*strong spray tower
*draught fan
*high pressure pump
*activated carbon absorption tower
*chimney
*cooling tower
4.power distribution cabinet
5.Attachment (pump,valve,pipe and so on)
Q:Instalation
A:At the client’s request, Shangqiu Harmony can provide installation Technicians to supervise and assist in the assembly and
commissioning of the equipment. Travel and accommodation costs, plus US$50 per day per man to be met by the client.
A:Standard delivery time for stationary crusher plant is 20 days from receipt of deposit.
