Semi-Continuous Pyrolysis Line For Waste Rubber /Tyre /Plastic to Oil Energy

Name: Semi-Continuous Pyrolysis Line For Waste Rubber /Tyre /Plastic to Oil Energy
Brand: xhzt
SKU: 141477744
Availability: InStock

Shangqiu Harmony Machinery Manufacturing Co., Ltd.

US$ 28,000 - 56,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Tire Machine

Tire Machine Type:

Tire Recycling Machine

Payment & Shipping

Payment Methods:

Port of Shipment:

Lian Yungang /shanghai/qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Tire Machine

Tire Machine Type Tire Recycling Machine

Place of Origin Henan, China

Brand Name xhzt

Model Number XHZT-2800-6600

Power(W) 21kw

Dimension(L*W*H) 2800-6600

Weight 35-40 Ton

Certification CE ISO SGS

Warranty 2 Years

After-sales Service Provided Engineers available to service machinery overseas

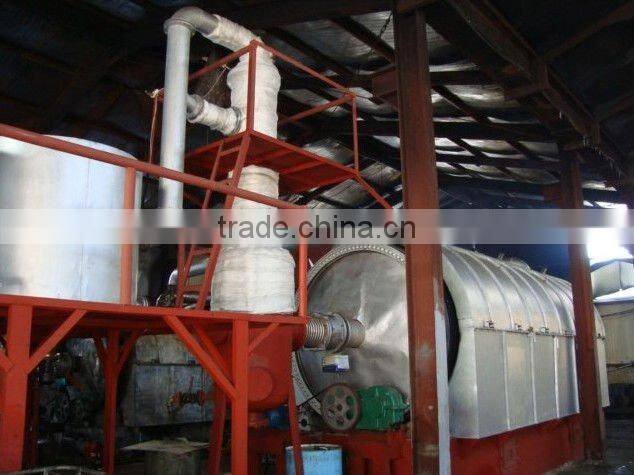

Semi-Continuous Pyrolysis Line For Waste Rubber /Tyre /Plastic to oil energy

Major parts

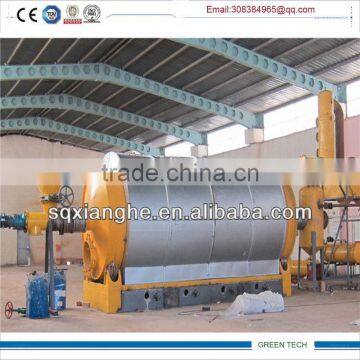

Reactor	1. Made of Q245R boiler steel. Also can choose Q345R 2. Auto-welding both inside and outside 3. With rock wool and first grade alumilum insulation board

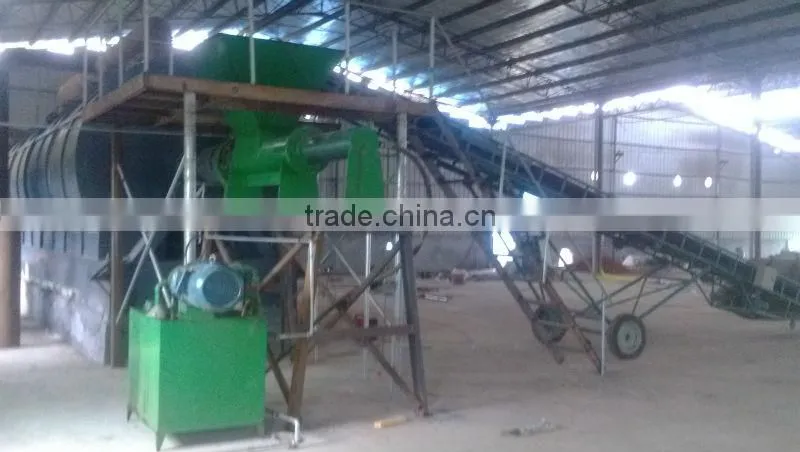

Auto-feeder	1. 60 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and time
Catalyst chamber	1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled
Oil-water separator	1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety
Condenser	1. Include condenser pipe, horizontal condenser and waste gas condenser 2. The oil gas is cooled separately by small pipes inside condenser 3. Light oil is collected here
Vacuum device	1.Keep machine running under normal pressure 2.Have founction of keeping safe
Anti-back fire device	1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering
Dust removal device	Dispose of flue gas caused by using coal, wood, oil or natural gas.

Final product and usage

output	usage

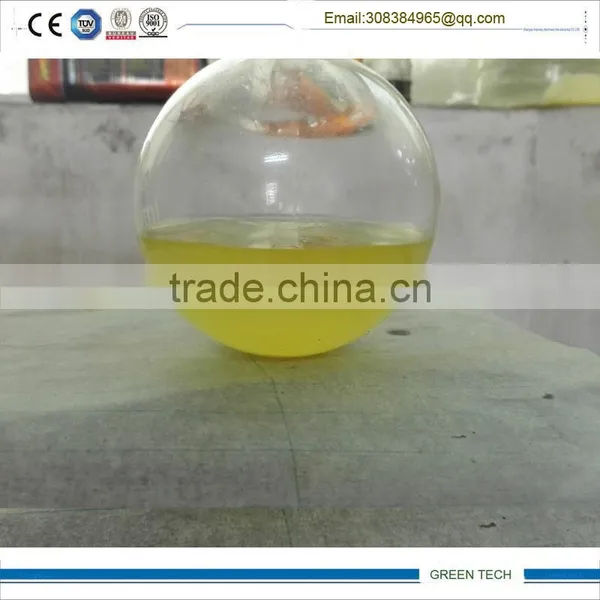

crude oil(45%-55%)	Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on
carbon black(30%-35%)	Make carbon black bars through carbon black pellet machine as fuel grinding to Increase the mesh of carbon black to make new tyre ,painting and so on
steel wire(10%)	The steel wire from waste tyre can be re-sale to steel factory
combustible gas(5%)	recycled to heat the reactor as fuel.save energy

Profit Analysis Report of waste tires oil extraction machine
1set 10 tons capacity machine as sample
NO.	Iterm	Cost of per batch
1	10 tons of waste tire	10T* 130$/T= 1300$
2	0.3 tons of caol	0.3* 97.6$/T= 29.28$
3	water	0.4$
4	electricity	15.6$
5	workers	4* 16.3$= 65.2$
total cost		1410.48$
NO.	Iterm	Income
1	Crude oil (40%-45%)	10T* 40%* 715.5$/T= 2862$
2	Carbon black (30%-35)	10T* 30%* 73$/T= 219$
3	Steel wire (10%-15%)	10T* 10%* 300$/T= 300$
4	Gross profit	3381$
5	Daily net profit	1970.52$
6	Monthly net profit	43351.44$
7	Yearly net profit	433514.4$
