Twin Style Waste Plastic and Tire Recycling Machines Getting Pyrolysis Oil 20ton per Day

Twin Style Waste Plastic and Tire Recycling Machines Getting Pyrolysis Oil 20ton per Day thumbnail-1
Twin Style Waste Plastic and Tire Recycling Machines Getting Pyrolysis Oil 20ton per Day thumbnail-2
Twin Style Waste Plastic and Tire Recycling Machines Getting Pyrolysis Oil 20ton per Day photo-1
Twin Style Waste Plastic and Tire Recycling Machines Getting Pyrolysis Oil 20ton per Day photo-2
US$ 35,000 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, tyre pyrolysis machine
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Shangqiu Harmony Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
lianyungang&qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, tyre pyrolysis machine
Place of Origin Henan, China
Brand Name XHZT
Model Number XHZT-2866
Voltage 380V
Power(W) 20KW
Dimension(L*W*H) 2800*6600*16mm
Weight 35T
Certification ISO CE
Warranty 1-5years
After-sales Service Provided Engineers available to service machinery overseas

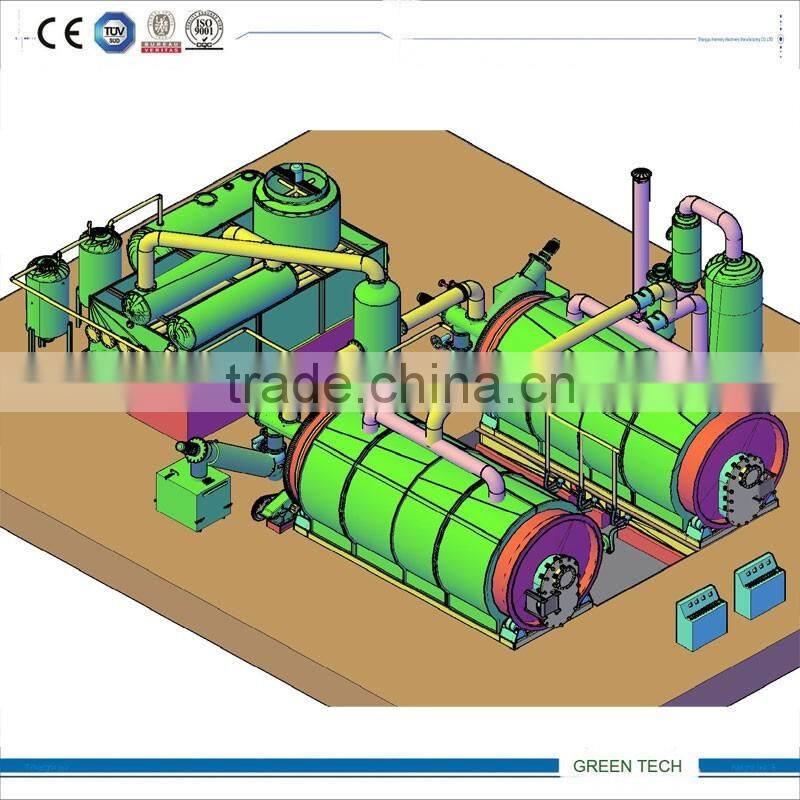

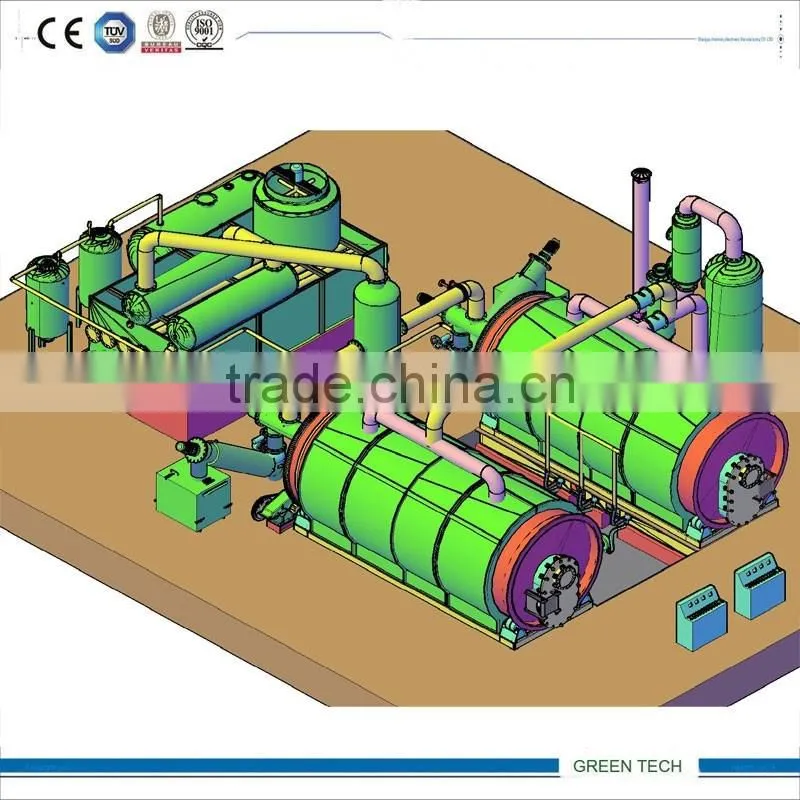

 1.Work program:Twin style waste plastic and tire recycling machines getting pyrolysis oil 20ton per day

2.Single machine parameter:

NO.

Name

Parameter

1

The raw materials:

waste tyres,/plastic, oil sludge

2

Daily capacity:

10 ton/day

3

The size of reactor

2800*6000mm 16mm thickness

4

Reactor material

Q345R

5

Average oil productivity:

30%-80%,

6

Average carbon productivity:

20%-35%

7

Plastic oil rate

30%-80%

8

pyrolysis time

6-8 hours

9

Discharge time

1.5 hour

10

Feeding time

3 hours

11

Cooling time

3 hours

12.

Working pressure

Normal /slightly negative

13

Power

18 kw

14

Fuel

Coal. Wood, gas etc

15

Working area

1000 square meters

16

Total weight

35 000kgs

17

Reactor rotate speed

0.25-0.4/min

18

Noise

No less than 85DB

19.

Certificate

Ce, Iso,

20.

Carbon slag out

Automatic

 Twin style waste plastic and tire recycling machines getting pyrolysis oil 20ton per dayTwin style waste plastic and tire recycling machines getting pyrolysis oil 20ton per day



 3.final out put and usage:



  1. FUEL OIL

It is the main product from the oil produce of pyrolysis process, widely used for industrial

and commercial purposes. Fuel oil composes of 45% to 53% of the total output.

  1. CARBON BLACK

Carbon Black is the main product recycled by pyrolysis technology. The amount of recycled

carbon black is 30-35% (depend on the type of tyre) of the total amount of scrap tyres recycled

 in the system. Carbon black can be used as raw material in many industries. We can further

 process it and increase the mesh by grinding machine, or make it into carbon pellet by carbon

pellet machine.

  1. STEEL WIRE

Tyre contains steel wires that can be detached at the end or the tyre recycling process.

 It is about 10% to 15% of the output.

  1. GAS

Gases are the products that produced during the process of recycling. These gases are

 non-condensable and occupy about 10% to 20% of the output.



4.Oil rate for different material:

Twin style waste plastic and tire recycling machines getting pyrolysis oil 20ton per day



Oil yied/day

Waste tire/ rubber

Big tyres

45%--50%

Car tyres

40%

Bicycles and motorcycles tyres

30%--35%

Waste plastic

Fishing net

45%--50%

Safety net , farm-oriented film

Conwenient bags , weave bags

40%

Off cut of recycled paper mill

20%--30%



























5.you may interest



















Pyrolysis plant

Type

Daily capacity

Used for

Final Product and usage

Batch type

3ton

5Ton

10ton

12ton

15ton

20ton

Waste tyre

Plastic

Rubber

Oil sludge

Oily waste

Others



 Fuel oil



Used for heating boiler as furnace oil

Or refined for distillation oil

Semi-continuous type

15Ton,

20Ton

Fully continuous type

20ton

30ton

60ton

Special type

20Ton

15ton



Distillation plant





Fully continuous type

3ton

5ton

10ton

15ton

20ton

30ton

40ton



Used motor oil

Used lube

Washing parts oil

Pyrolysis oil

Crude oil

Others



A..

base oil

for heavy vehicles



B. diesel for car and other
