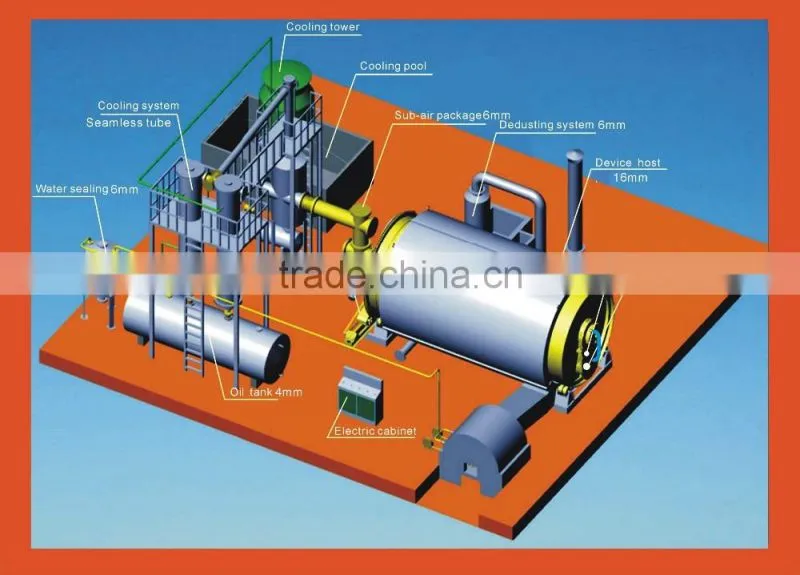

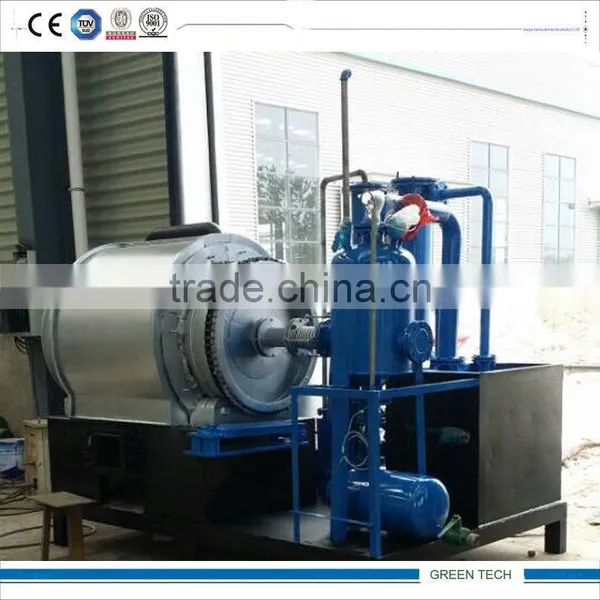

1.Work flow:
A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
nology specialty

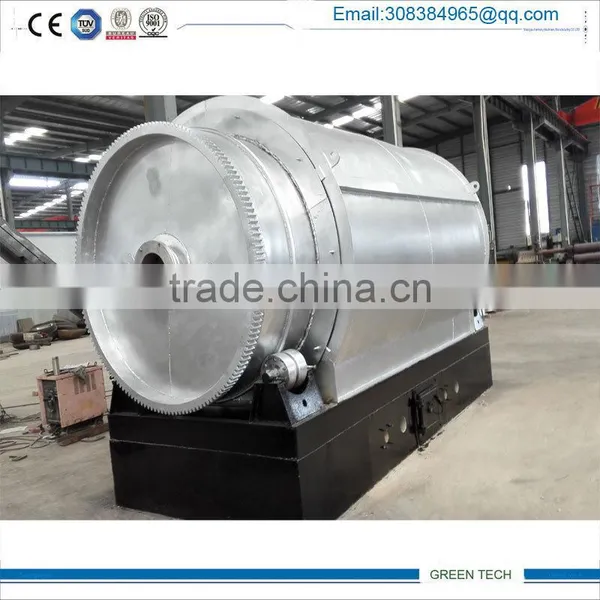

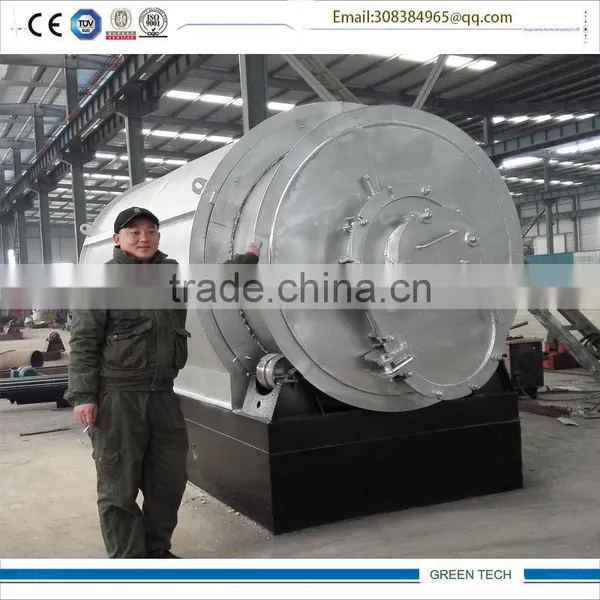

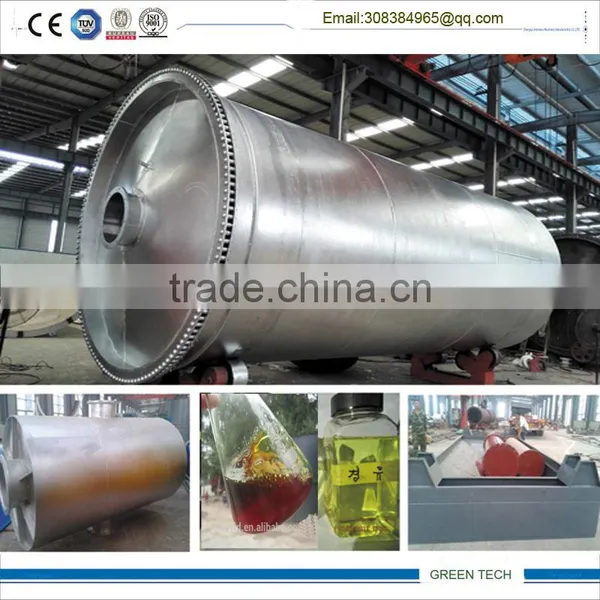

NO. | Name | Parameter |
1 | The raw materials: | waste tyres,/rubber/plastic/oil sludge |
2 | Daily capacity: | 5-7 ton /day |
3 | The size of reactor (D*L) | 2200*6000mm /2100*6600 mm |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-50%, |
6 | Average carbon productivity: | 30%-35% |
7 | Average steel productivity: | 10%-15% |
8 | Plastic oil rate | 30%-80% |
9 | Average waste-gas productivity: | 5-8% |
10 | pyrolysis time | 6hours |
11 | Discharge time | 1.5 hour |
12. | Feeding time | 2hour |
13 | Cooling time | 3hours |
14 | Working pressure | Normal /slightly negative |
15 | Power | 15 kw |
16 | Fuel | Coal. Wood, gas etc |
17 | Working area | 1000 square meters |
18 | Total weight | 28000kgs |
19 | Reactor rotate speed | 0.25-0.4/min |
20. | Noise | No more than 85 db |
21. | Type | NEW TECH Pollution free |
22. | Certificate | CE,.ISO. |
3.Work flow:
4.Payment term and delivery:
1.) Payment term: 30% TT advance payment 70%TT payment before plant shifting .

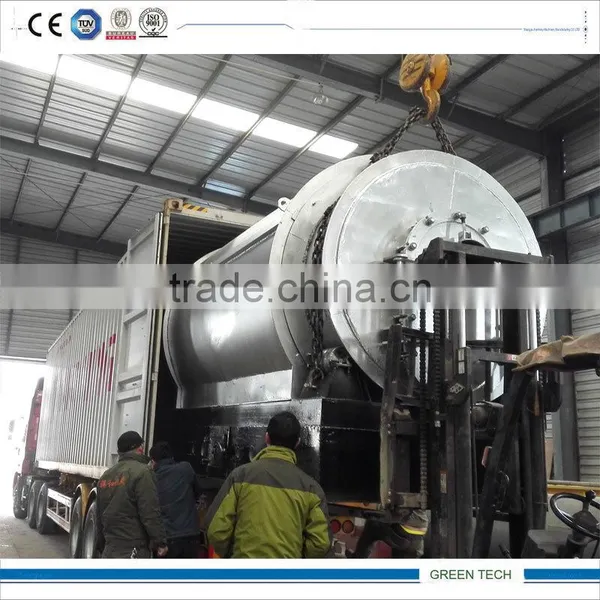

2.) Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
3.) About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4.) Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation

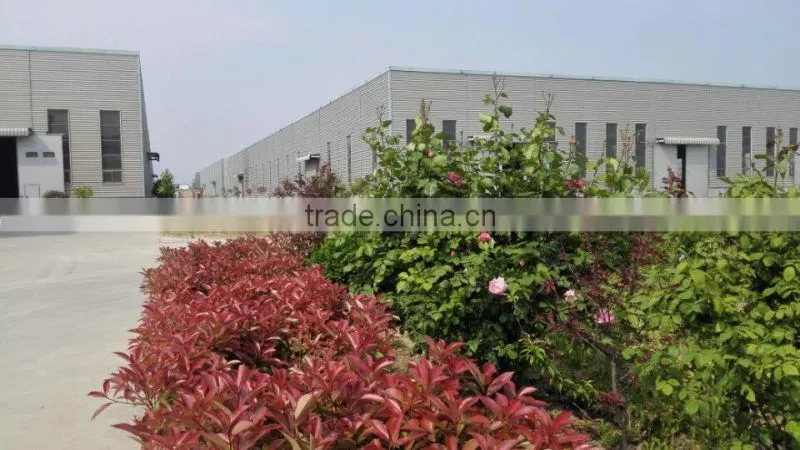

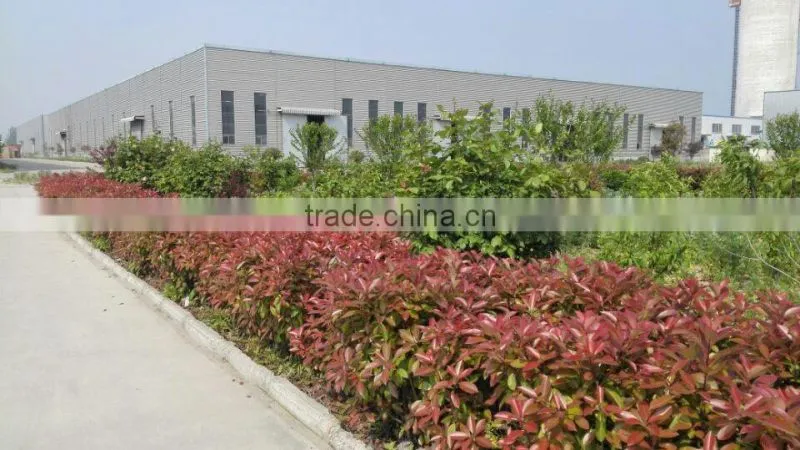

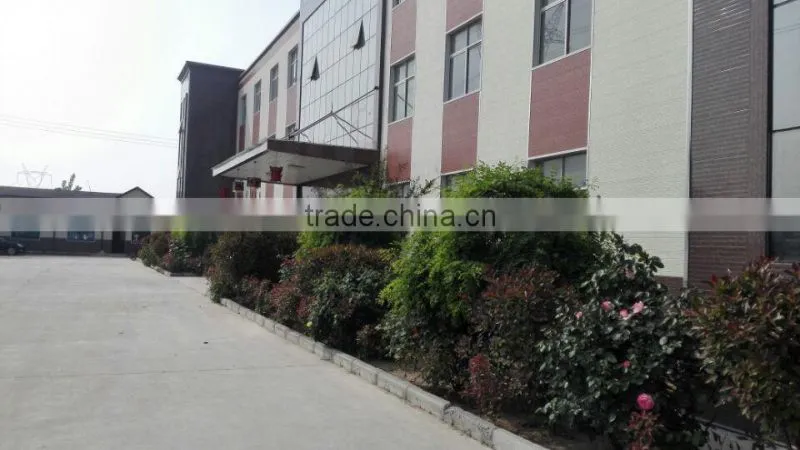

5.About us

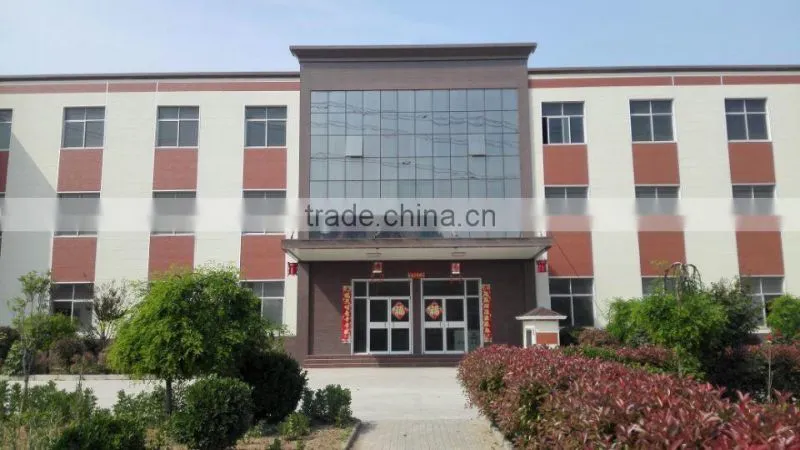

Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
5.Our customer :
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong, Taiwan | |
Oversea users | The Middle East | Iran,Iraq,Lebanon |
East Asia | Korea | |
Europe | Poland,Turkey | |
Africa | Mauritius | |
South America | Brazil | |
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | |
South Asia | Pakistan,India | |
| Europ | Italy |
6.our products:
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 3ton 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type | 3ton 5ton 10ton 15ton 20ton 30ton 40ton
| Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
