1.Plant features:
A) completely pollution free. Carbon slag automatic and slag more fast than normal design
b) Improved an simplified design of plant, more easy to use, and cut down plant cost
c) All parts including small parts we use high standard material to keep our quality for long term usage.
d). Dedust system use latest design, no black smoke emit to air by chimney
e) fast installation
nology specialty
NO. | Name | Parameter |
1 | The raw materials: | waste tyres,/rubber/plastic/oil sludge |
2 | Daily capacity: | 5-7 ton /day |

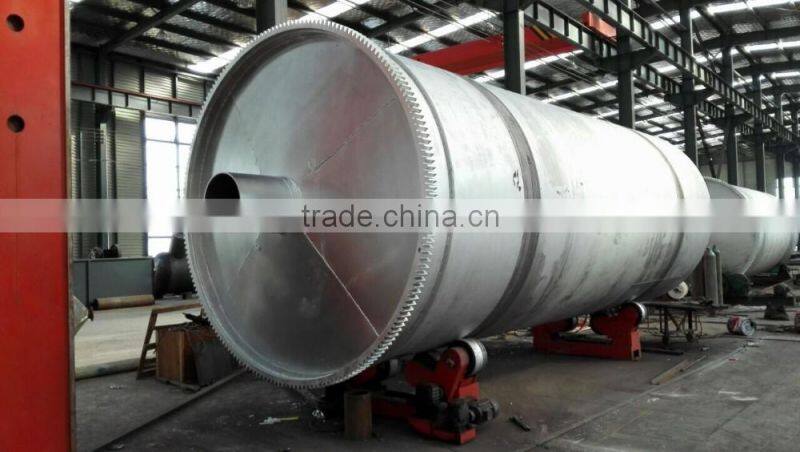

3 | The size of reactor (D*L) | 2200*6000mm /2100*6600 mm |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-50%, |
6 | Average carbon productivity: | 30%-35% |
7 | Average steel productivity: | 10%-15% |
8 | Plastic oil rate | 30%-80% |
9 | Average waste-gas productivity: | 5-8% |
10 | pyrolysis time | 6hours |
11 | Discharge time | 1.5 hour |
12. | Feeding time | 2hour |
13 | Cooling time | 3hours |
14 | Working pressure | Normal /slightly negative |
15 | Power | 15 kw |
16 | Fuel | Coal. Wood, gas etc |
17 | Working area | 1000 square meters |
18 | Total weight | 28000kgs |
19 | Reactor rotate speed | 0.25-0.4/min |
20. | Noise | No more than 85 db |
21. | Type | NEW TECH Pollution free |
22. | Certificate | CE,.ISO. |
3.Work flow:
4.About us

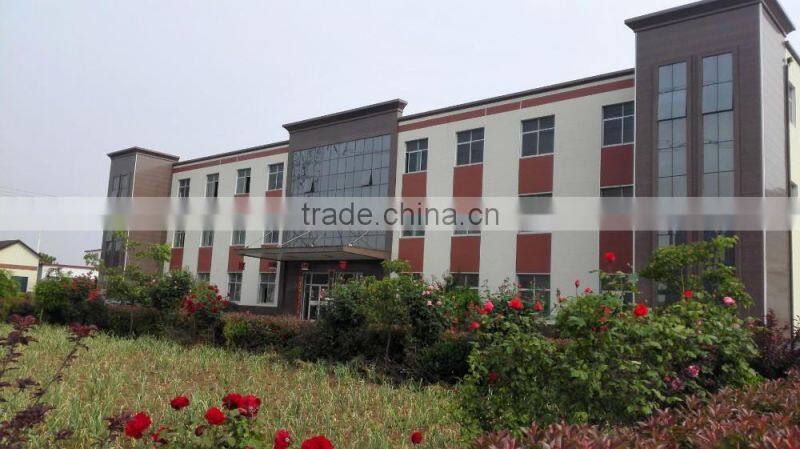

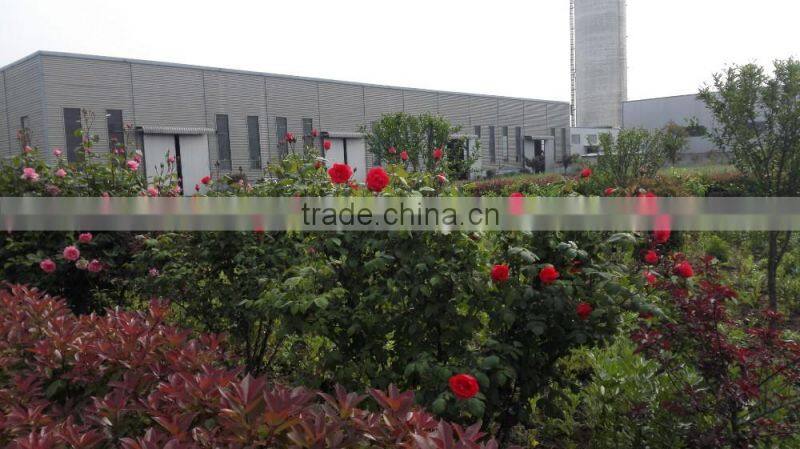

Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
5.Our customer :
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong, Taiwan | |
Oversea users | The Middle East | Iran,Iraq,Lebanon |
East Asia | Korea | |
Europe | Poland,Turkey | |
Africa | Mauritius | |
South America | Brazil | |
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | |
South Asia | Pakistan,India | |
| Europ | Italy |
6.our products:
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 3ton 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type | 3ton 5ton 10ton 15ton 20ton 30ton 40ton
| Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
7. Economic analysis ?
Profit Analysis Report of waste tires oil extraction machine | ||
1set 10 tons capacity machine as sample | ||
NO. | Iterm | Cost of per batch |
1 | 10 tons of waste tire | 10T* 130$/T= 1300$ |
2 | 0.3 tons of coal | 0.3* 97.6$/T= 29.28$ |
3 | water | 0.4$ |
4 | electricity | 15.6$ |
5 | workers | 4* 16.3$= 65.2$ |
total cost | 1410.48$ | |
NO. | Iterm | Income |
1 | Crude oil (40%-45%) | 10T* 40%* 715.5$/T= 2862$ |
2 | Carbon black (30%-35) | 10T* 30%* 73$/T= 219$ |
3 | Steel wire (10%-15%) | 10T* 10%* 300$/T= 300$ |
4 | Gross profit | 3381$ |
5 | Daily net profit | 1970.52$ |
6 | Monthly net profit | 43351.44$ |
7 | Yearly net profit | 433514.4$ |
