8 TPD Tyre recycling Machine To Oil pyrolisis system

Product Application

convert solid oilly waste to good oil

it can be used for :

tyre ,rubber ,plastic, medical waste, city garbage, oilly waste,, oily sand, oily stone, oily pitch ,oily coal

Main Features

1) special design, when loading raw material , more fast , saving feeding time

2) 3-level dedust system, make sure the exhaust smoke is white water steam. pollution free

3)  reasonable desing for slag discharge device, shorten slag discharge time

4) good technich make sure 100% anit-explosion

5) special technonoly ,make sure the oily waste not stick on the reactor .

Machine Parts

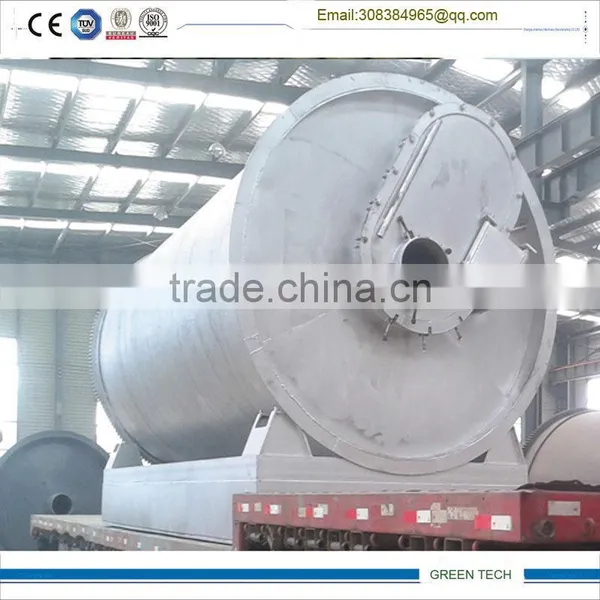

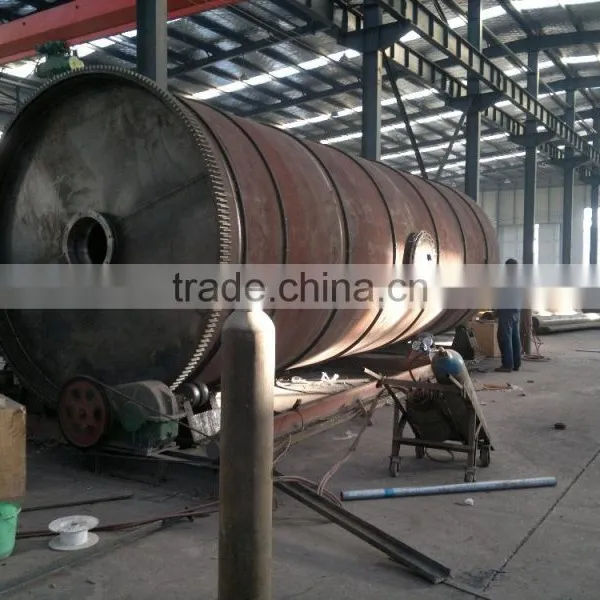

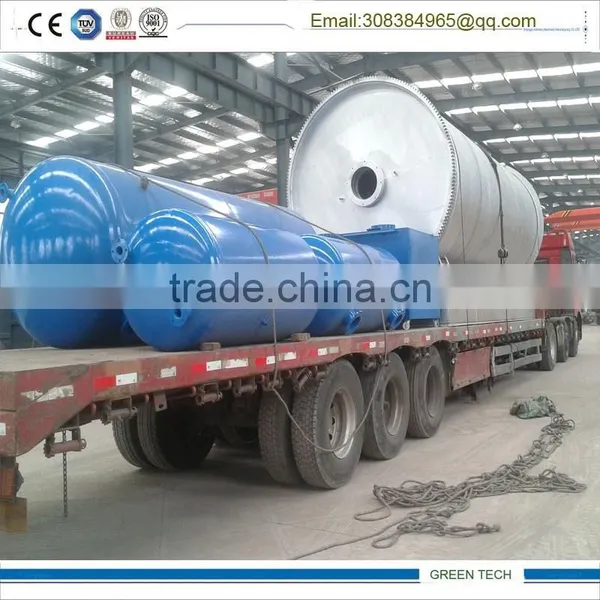

Name: pyrolysis  reactor

function :

laod raw material, oily waste in side reactor and heating reactor ,here solid waste change to oil gas .

Main parts

Name: air bag
funcation:
oil gas go out of reactor and go in air bag,

here have oil and light oil will be separated,

heavy oil to go heavy oil tank, light oil to go cooling system.

Machine Parts

Name: cooling system
function:
to cool down the oil gas , after it come out of distillation  tower and catalyst tower

Main parts

Name: dedust system
function:
to treat the smoke produced by  burning fuel to heat reactor , after smoke go through dedust system,

the black smoke will be cleaned to water steam, and sulfer will be removed
