1.Plant features
a. The complete set of unit produces no smoke and smell with favourable effects of
environmental protection.
b. The pressure release device operates through water circulation, which greatly im
proves the security of the system.
c. The release of pressure during the production dramatically increases the output
within certain time and meanwhile improves the quality of oil.
d. The heating system adopts hot air heating technology, which improves the safety
performance of production and heating efficiency.
e. High efficiency fuel gas heating system. When the heated gas reaches 150 during
refining, a large amount of gas will be generated: through methane to butane, which
cannot be liquefied under normal temperature. A large quantity of energy will be gen
erated after these gases fully burn within a specially designed gas burner. Then energ
y will be saved greatly.
nology specialty
NO. | Name | Parameter |
1 | The raw materials: | Fuel oil /waste machine oil / transformer oil/waste lube |
2 | Out put | Base oil |
3 | Daily capacity: | 10ton /day |
4 | The size of reactor(L*W*H) | 2600-6600 |
6. | Reactor material | Q345R |
7. | Final oil out rate | 75-85 % |
8. | Feeding way | continuous |
9 | Slag out | Auto continuous |
10 | Working area | 500-600 square meters |
11 | Cooling way | By water |
12. | Heating way | Direct/indirect |
13 | Working presure | Normal/slightly negative |
14 | Effective working temperature | 200-400℃ |
15 | Power | 15kw |
16 | voltage | 220v/380v |
17 | Fuel to heating | Coal wood, gas oil, etc |
18 | type | Pollution free |
19. | certificate | CE.ISO |

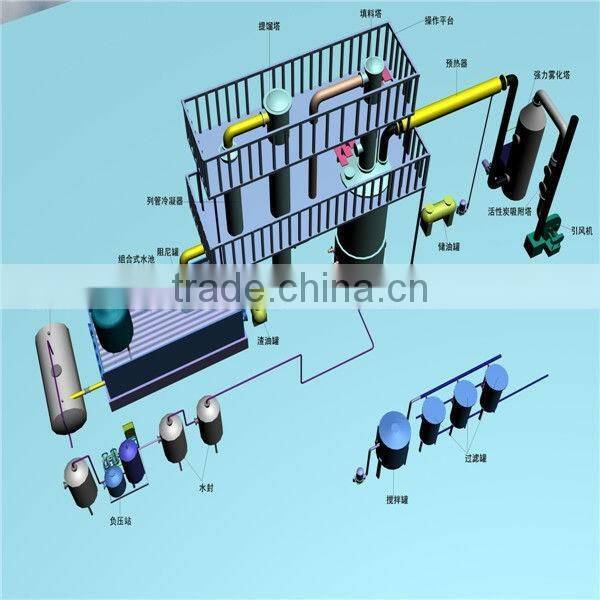

3.Work flow:

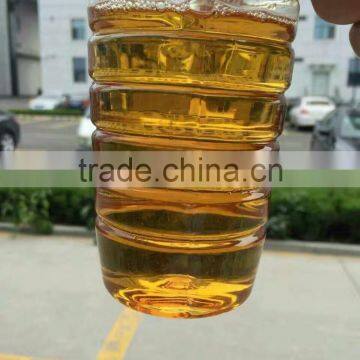

4.oil we get
5.About us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
6.Our customer :
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong, Taiwan | |
Oversea users | The Middle East | Iran,Iraq,Lebanon |
East Asia | Korea | |
Europe | Poland,Turkey | |
Africa | Mauritius | |
South America | Brazil | |
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | |
South Asia | Pakistan,India | |
| Europ | Italy |
6.our products:
Pyrolysis plant | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 3ton 5Ton 10ton 12ton 15ton 20ton | Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil
Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton | |||
Distillation plant |
Fully continuous type | 3ton 5ton 10ton 15ton 20ton 30ton 40ton
| Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
| A.. base oil for heavy vehicles
B. diesel for car and other |
