1.Brief introduction:
The membrane filtration press ,whose filtration chamber is composed by membrane plate and the chamber plate ,with the help of the feeding pump,the solid and liquid are separated by the filter medium(filter cloth) .After the filter cake is formed,and then air or liquid goes into membrane plate.The second squeezing happens by membrane late bulk and lower moisure content.
Filter for viscous materials require higher moisture content and for users of this machine have their unique characteristics.
Plate with enhanced molded polypropylene, polypropylene plate with diaphragm mounted together, sturdy, secure, not easy fall off, long service life
Advantages of membrane filter press:
- High product throughput
- Reduction of the residual moisture of the filter cake
- Shorter filtration, wash and cake cycles
- Drier cakes means energy saving on cake drying and transportation
- The optimized cake structure facilities quicker and better washing results
- Varying product quantities and compositions present no problems to the membrane filter press
- High degree of automation, labor-saving and ease to operate:adopting PLC control system, including automatic keeping pressure, automatic pulling board, quick program functions,ect.

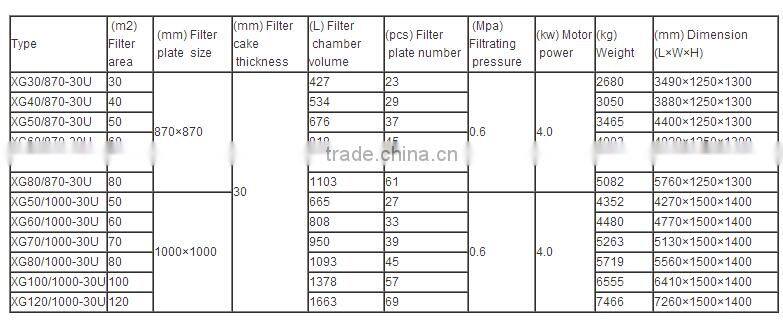

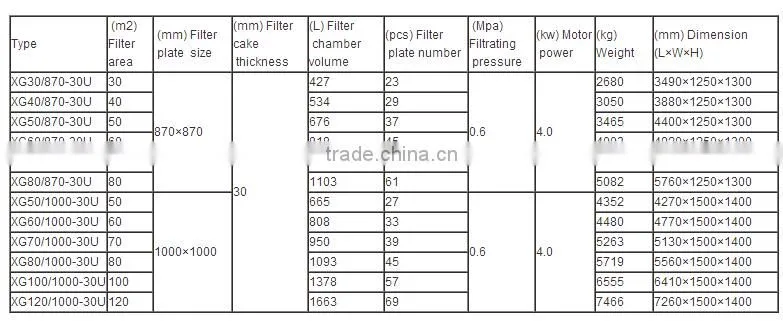

Specifications and technical parameters of membrane filter press:

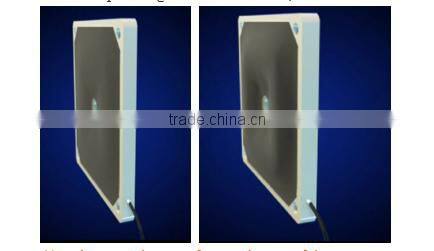

Pictures to show you principle of the second sequeezing process
01.After the filter cake are formed ,the diaphragm valve open and air or liquid (usually water)goes into the membrane plate
02.The membrane plate filled with air or liquid,so the membrane plate is expanded, this can make the second squeezing of the filter cake,and lower the moisture content
Membrane plates of membrane filter press are made from RPP material moulded. Diaphragm and RPP are enchased togerher to become firm, so they do not fall off easily and have a longer service life.

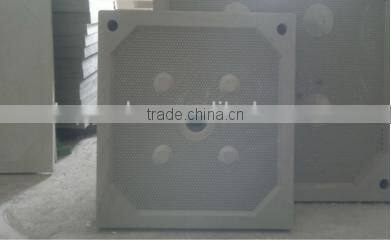

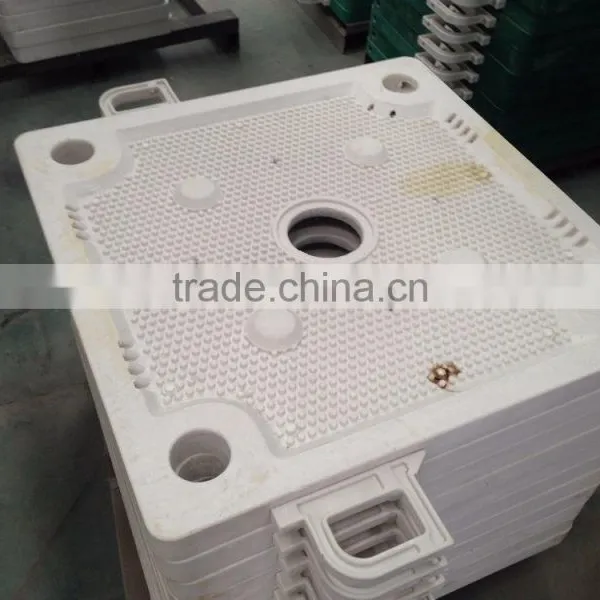

Membrane plate of membrane filter press

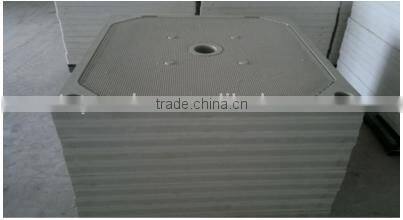

Membrance matching plate of membrane filter press

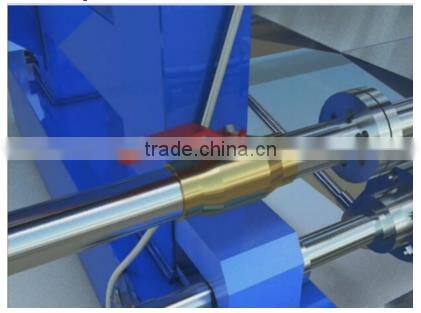

Below device is used for the automatic type ,which can pulling plates one by one automatically ,we called the pulling plates device.

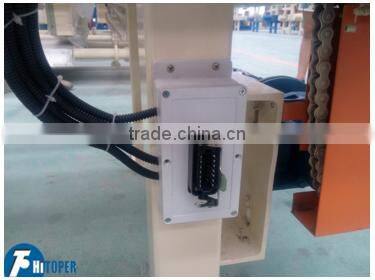

Plate shifting control switch of membrane filter press

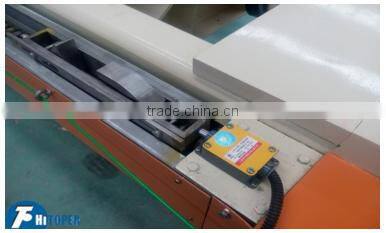

Limit switch of membrane filter press
Master control of membrane filter press
Packaging & Shippingfely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Our technical engineer can also guide the installation,testing ,solve problems and so on in your country if required.
