China High Quality Domestic Brand Filter Export Worldwide,cast Iron Long Lifetime Filter Press
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Money Gram
You May Like
-
PP Plate-frame Cardboard Filter Press Used for Beverage Industry Filtration
-
Cast Iron Plate-frame Press Filter for Palm Oil Rough Fltration and Separation
-
Hot Sale !High Feeding Pressure Ceramic Filter Press
-
Portable Filter Press,round Cotton Cake Filter Press
-
Mobile Filter Press Manufacturer.round Cotton Cake Filter Press
-
Hydraulic Press Machine, 800 Type High Pressure Round Plate Filter Press
Product Details
| Condition | New | Type | Separating Plant | |
| Product Type | Other, filter & separator | Place of Origin | Henan, China | |
| Brand Name | Toper | Model Number | BY40/800-25 | |
| Voltage | 380V/220V | Power(W) | 0.6kw | |
| Weight | 6400kg | Dimension(L*W*H) | 3550*1380*1300mm | |
| Certification | CE | Warranty | 18 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China high quality domestic brand filter export worldwide
v Brief introduction of the China high quality domestic brand filter export worldwide
The high pressure filter press is made by high quality cast iron or ductile iron precision casting, with
characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture,
unloading, and long service life.
Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate,
potassim sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..
v Features of the China high quality domestic brand filter export worldwide
- 1. Widely be used for dewatering high temperature materials.
- 2. Plate and frame of filter press, the heart of filter press
- 3. Material of plate and frame: cast iron
- 4. Max temperature: up to 300 degree celsius
- 5. Resistance to high temperature and high pressure.
- 6. Long use life.
v Technical parameters of the China high quality domestic brand filter export worldwide
Manual discharge type
| Type | Filter area (m2) | Filter plate size (mm) | cake thickness (mm) | chamber volume (L) | plate number (pcs) | frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) | Dimensions(mm) L×W×H |
| BY40/800-25 | 40 | 800 x 800 | 25 | 496 | 30 | 31 | 0.6 | 6400 | 3550×1380×1300 |
| BY50/800-25 | 50 | 624 | 38 | 39 | 7650 | 3970×1380×1300 | |||
| BY60/800-25 | 60 | 752 | 46 | 47 | 8900 | 4420×1380×1300 | |||
| BY70/800-25 | 70 | 880 | 54 | 55 | 10500 | 5320×1380×1300 | |||
| BY80/800-25 | 80 | 1008 | 62 | 63 | 11800 | 3500×1380×1300 | |||
| XY40/800-25 | 40 | 30 | 595 | 30 | 0.8 | 6750 | 3720×1380×1300 | ||
| XY50/800-25 | 50 | 749 | 38 | 8100 | 3950×1380×1300 | ||||
| XY60/800-25 | 60 | 902 | 46 | 9400 | 3950×1380×1300 | ||||
| XY70/800-25 | 70 | 1056 | 54 | 11100 | 4180×1380×1300 | ||||
XY80/800-25 | 80 | 1210 | 62 | 12500 | 4400×1380×1300 |
Automatic discharge type
| Type | Filter area (m2) | Filter plate size (mm) | cake thickness (mm) | chamber volume (L) | plate number (pcs) | Filtrating pressure (Mpa) | Weight (kg) | Dimensions(mm) L×W×H |
| XZ50/800-30 | 50 | 800 x 800 | 30 | 730 | 38 | 0.8 | 9000 | 4170×1300×1300 |
| XZ60/800-30 | 60 | 883 | 46 | 10800 | 4560×1300×1300 | |||
| XZ70/800-30 | 70 | 1036 | 54 | 12000 | 4960×1300×1300 | |||
| XZ80/1000-30 | 80 | 930 x 930 | 1194 | 45 | 0.8 | 13800 | 4775×1400×1400 | |
| XZ90/1000-30 | 90 | 1323 | 51 | 15500 | 5245×1400×1400 | |||
| XZ100/1000-30 | 100 | 1479 | 57 | 16800 | 5915×1400×1400 | |||
| XZ80/1200-30 | 80 | 1130 x 1130 | 1226 | 31 | 0.8 | 17600 | 4100×1620×1520 | |
| XZ90/1200-30 | 90 | 1379 | 35 | 18800 | 4340×1620×1520 | |||
| XZ100/1200-30 | 100 | 1532 | 39 | 20800 | 4580×1620×1520 | |||
| XZ120/1200-30 | 120 | 1838 | 47 | 23500 | 5060×1620×1520 | |||
| XZ150/1200-30 | 150 | 2300 | 59 | 27500 | 5780×1620×1520 | |||
| XZ180/1200-30 | 180 | 2758 | 71 | 31500 | 6500×1620×1520 |

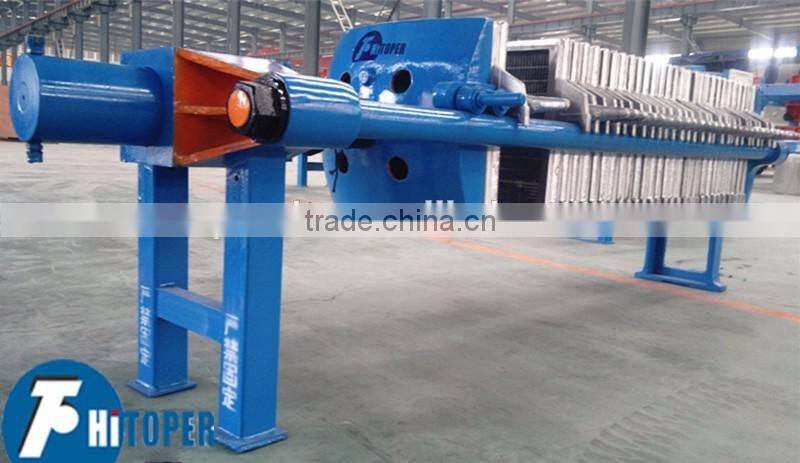

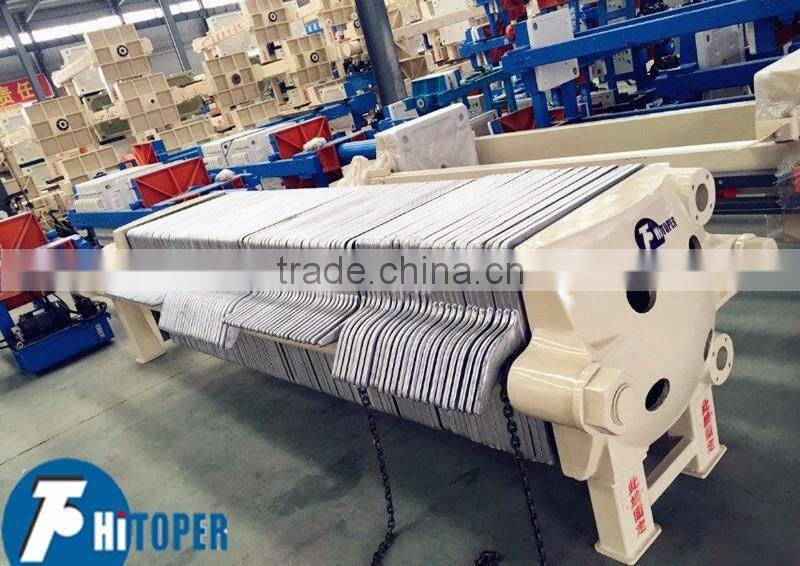

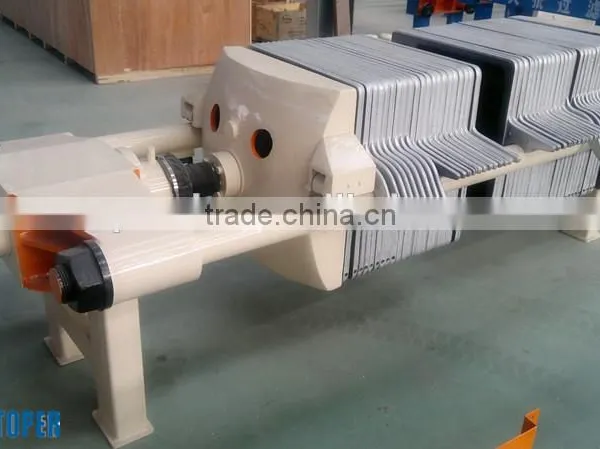

v photos of the China high quality domestic brand filter export worldwide

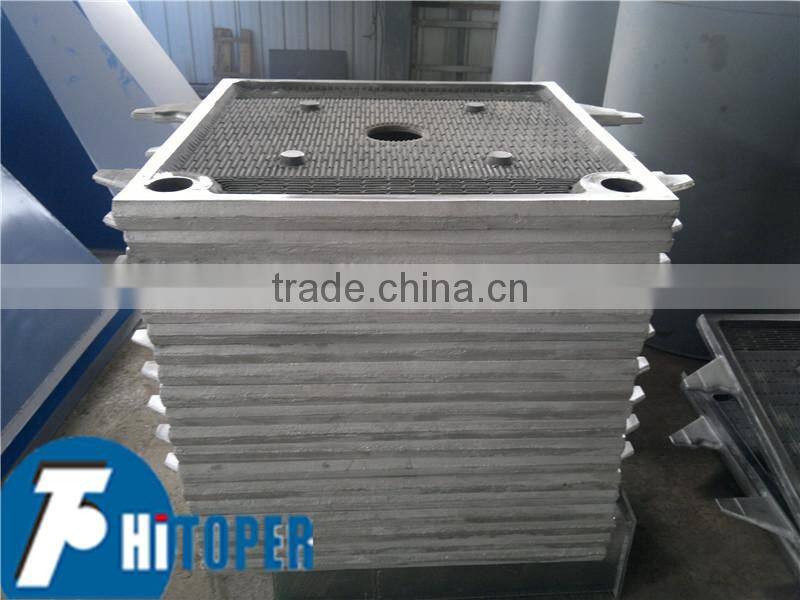

Frame & plate type and chamber type fitler plate
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required
v About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional
exporter and service provider of filter and separation equipment . Also we focus on full service for
filtering project from design to after-sale service and fast supply of spare parts.
Since 2006, Zhengzhou Toper has supplied products ans service to over 200 enterprises of 30 more countries ans areas
excluding China mainland
Southeast Asia:Indonesia, Malaysia, Philippines ans Thailand:
West Asia:Turkey, Uzbekistan and Tajikistan;
Northeast Asia: South Korea, Mongolia,
Middle East:: Israeli, Palestinian, Oman, Bahrain, Iran”
Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania ;
North America: Canada, America
South America:Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia;
Africa: South Africa, Algeria and so on.
