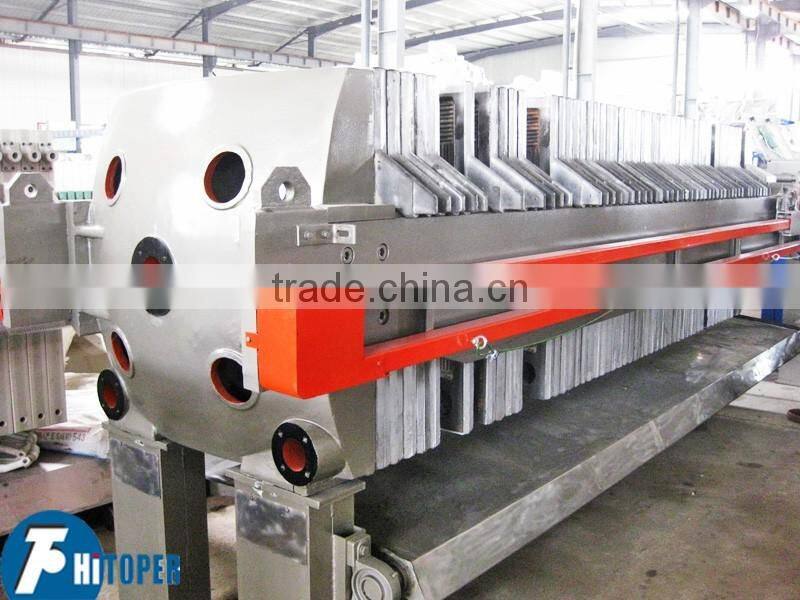

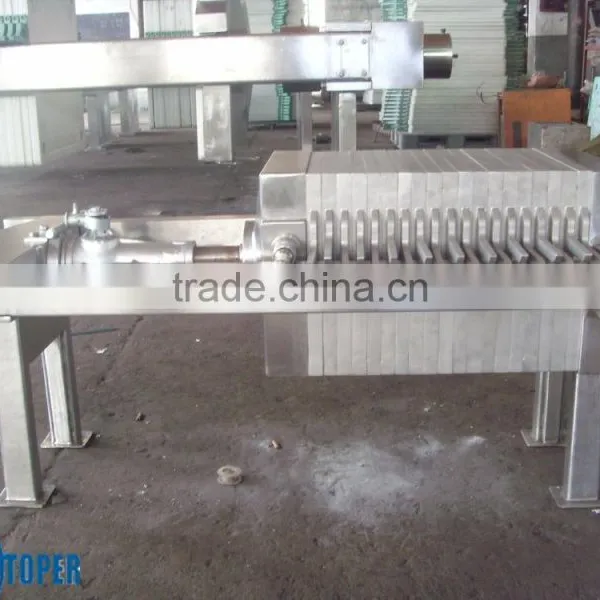

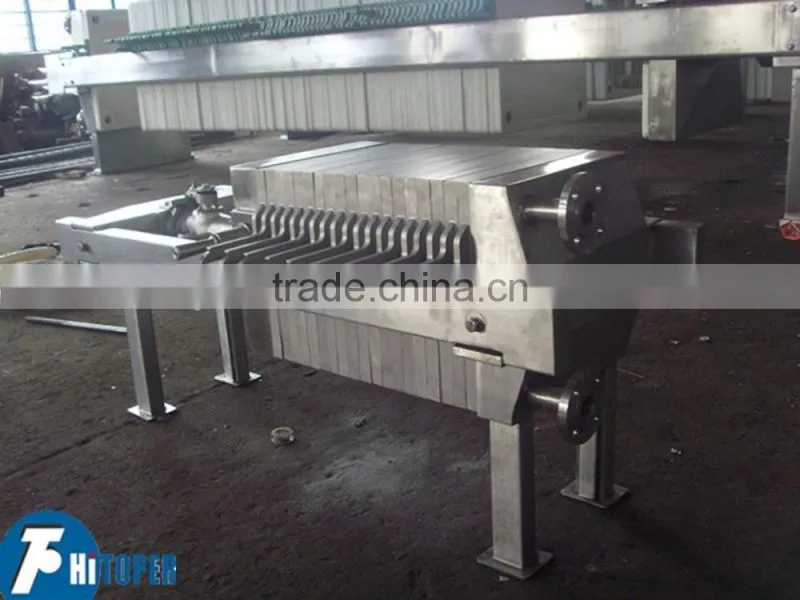

stainless steel/SS filter press/frame and plate filter press machine
There are paperboards or filtrating materials to seal the gaps between filtrating frames and filtrating plates. This filter press is a stainless plate and frame precise one ( or called stainless paperboard filter press) with large filtrating capacity and filtrating areas over 2m2. A fixed bar is equipped to set paperboard under filter press to make it convenient to put filtrating material. It uses precise degerming paper to filtrate different kinds of health wine, wine.
Features:
1.Material:Stainless steel
2.Filtration pressure:0.6Mpa-2.5Mpa
ing temperature:80C
Application:
It can be used in all kinds of suspension liquid for separating solid and liquid, such as food, environmental protection lighty industry, medicine, chemical industry, metallurgy, petroleum industry, etc., especially large quantity of liquid beverage precise filtration or degerming filtration in beer, white spirit, wine, oil.
Parameters of all types:
Specification | Filter area (m2) | Filter plate size (mm) | Filter cake thickness (mm) | Filter chamber volume (L) | Filter plate number (pcs) | Frame plate number (pcs) | |
BAQ1/320 | 1 | 320*320 | 25 | 13 | 4 | 5 | |
BAQ2/320 | 2 | 25 | 9 | 10 | |||
BAQ3/320 | 3 | 38 | 14 | 15 | |||
BAQ4/450 | 4 | 450*450 | 51 | 9 | 10 | ||
BAQ6/450 | 6 | 76 | 14 | 15 | |||
BAQ8/450 | 8 | 102 | 19 | 20 | |||
BAQ10/450 | 10 | 122 | 24 | 25 | |||
BAQ12/450 | 12 | 152 | 29 | 30 | |||
BAQ16/450 | 16 | 203 | 39 | 40 | |||
BAY4/450 | 4 | 51 | 9 | 10 | |||
BAY6/450 | 6 | 76 | 14 | 15 | |||
BAY8/450 | 8 | 102 | 19 | 20 | |||
BAY10/450 | 10 | 122 | 24 | 25 | |||
BAY12/450 | 12 | 152 | 29 | 30 | |||
BAY16/450 | 16 | 203 | 39 | 40 | |||
BAQ10/610 | 10 | 550*550 | 122 | 15 | 16 | ||
BAQ12/610 | 12 | 152 | 19 | 20 | |||
BAQ15/610 | 15 | 189 | 24 | 25 | |||
BAQ20/610 | 20 | 250 | 32 | 33 | |||
BAY10/610 | 10 | 122 | 15 | 16 | |||
BAY12/610 | 12 | 152 | 19 | 20 | |||
BAY15/610 | 15 | 189 | 24 | 25 | |||
BAY20/610 | 20 | 250 | 32 | 33 | |||
BAQ15/630 | 15 | 630*630 | 189 | 18 | 19 | ||
BAQ20/630 | 20 | 250 | 24 | 25 | |||
BAQ30/630 | 30 | 377 | 37 | 38 | |||
BAY15/630 | 15 | 189 | 18 | 19 | |||
BAY20/630 | 20 | 250 | 24 | 25 | |||
BAY30/630 | 30 | 377 | 37 | 38 | |||
BAY30/800 | 30 | 800*800 | 442 | 22 | 23 | ||
BAY40/800 | 40 | 595 | 30 | 31 | |||
BAY50/800 | 50 | 748 | 38 | 39 |

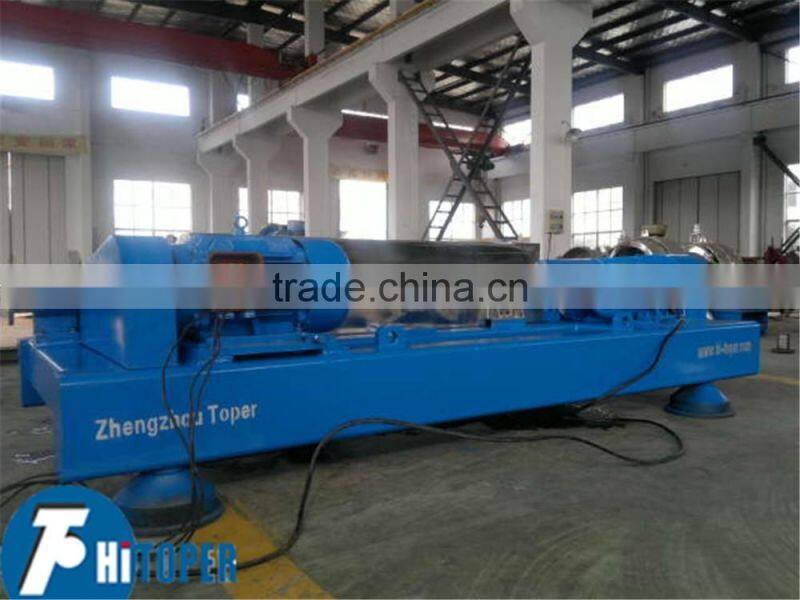

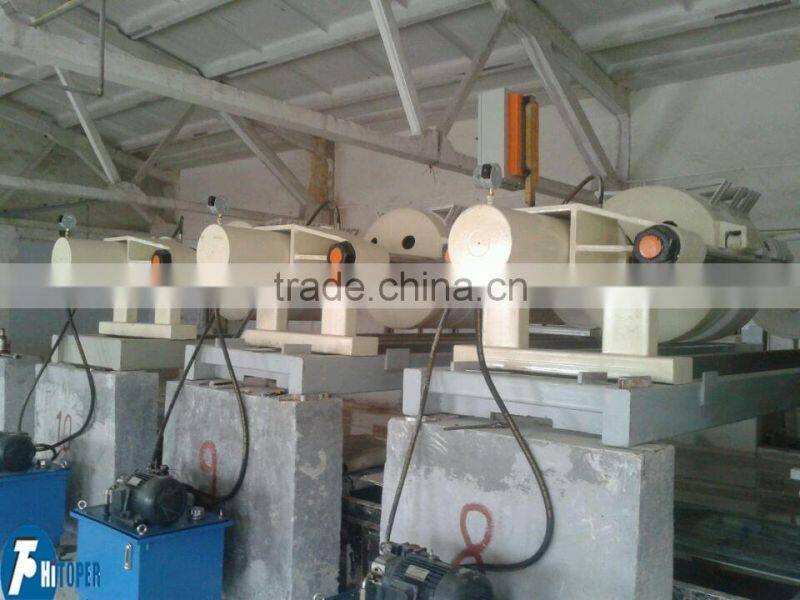

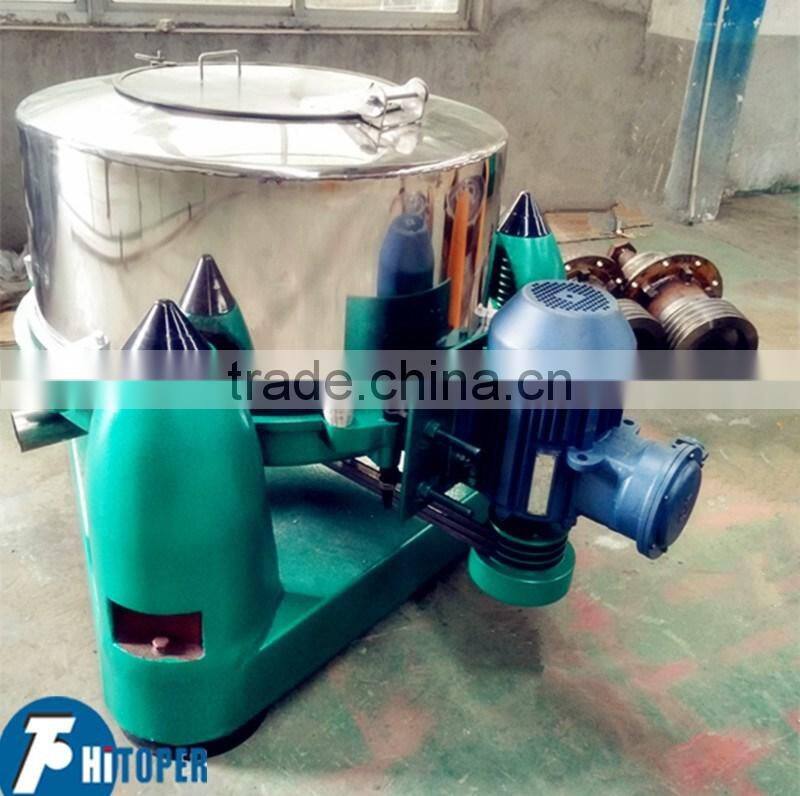

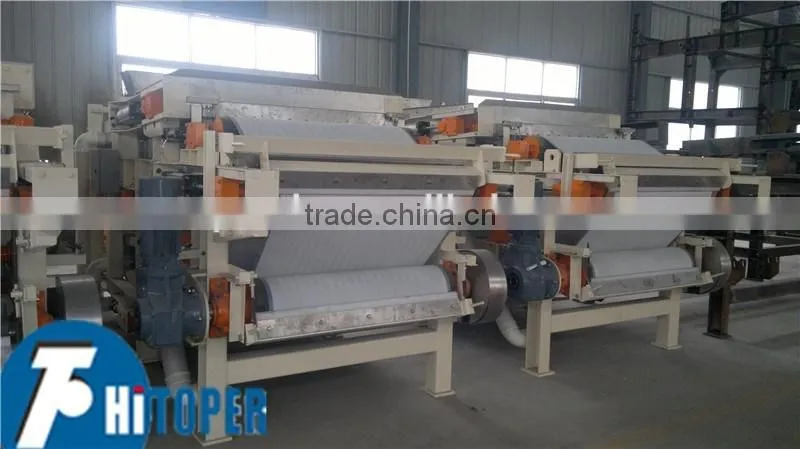

Various filter and separation in our factory:
