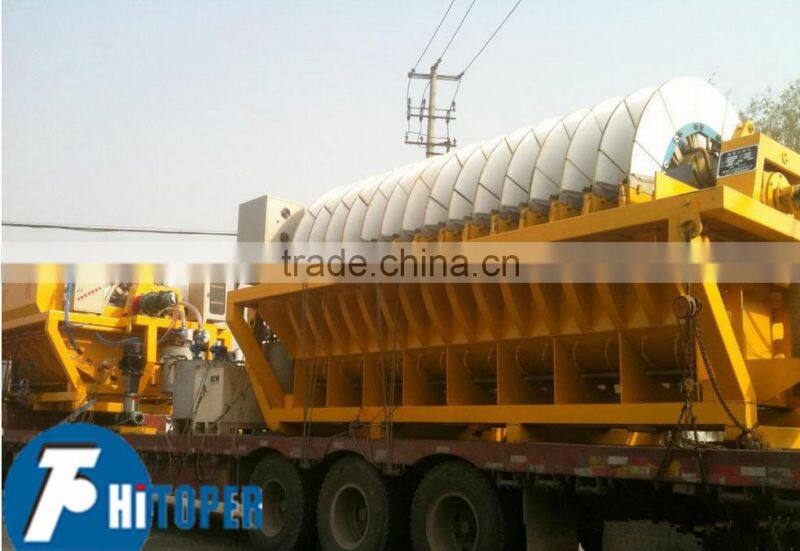

Black ore separation and dewatering equipment,
China offered vacuum disc filter for sale
Brief Introduction:
This kind of filter equipment is a kind of solid-liquid deparation equipment using a vacuum as a driving force.It is a fine filteratio equipment used for iron concentrate,non-ferrous metal concentrate and non metal ore concentrate filtration dehydration and filtration dehydration.
Structure And Components
Disc vacuum filter tank, filter shaft, main drive, filter plate, separated valve, slurry agitator, unloading equipment, filter cloth washing, centralized lubrication systems and electronic control systems and other components.
Feature
Heavy duty disc vaccum filter used for metal minera fully absor the advantages of similar foreign products.For features of big density of metal mineral,quick subsidence,strong impact of filtrate containging solid particles to filter tubes,we already optimized perfoemance and the realiability of components ,and then it has firm structure,smooth operation ,automatic transmission,strong mixing ,reliable shaft end sealing ,wear-resisting ceramic filter tube ,long service life ,high strength filter sector,large porpostiy ,smooth surface and high strenght of the filter cloth,high discharge rate of filter cake ,long serive life,ensure the metal mineral in the solid-liquid separation for good indicator of dehydration.
Technical data
| Type | ZPG 10-2 | ZPG 15-3 | ZPG 20-4 | ZPG 25-5 | ZPG 30-6 | ZPG 35-7 | ZPG 40-8 | ZPG 60-5 | ZPG 72-6 | ZPG 120-10 | ||
| Filter area (m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 60 | 72 | 120 | ||
| Disc filter quantity (pcs) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 5 | 6 | 10 | ||
| Capacity (t/h*m2)> | 0.7-1.0 | |||||||||||
| Cake thickness (mm) | >=10 | |||||||||||
| Cake water content (%) | <=10 | |||||||||||
| Disc filter | Diameter (mm) | 2000 | 3100 | |||||||||
| Rotation speed (r/min) | 0.3-1.2 | |||||||||||
| Motor | Rotation speed (r/min) | Adjustable | ||||||||||
| Power (Kw) | 3 | |||||||||||
| Mixer | Rotation speed (r/min) | 80-110 | ||||||||||
| Motor reducer | Rotation speed (r/min) | 80-110 | ||||||||||
| Power (Kw) | 3 | |||||||||||
| Tank volume (m3) | 0.86 | 1.38 | 1.85 | 2.29 | 2.72 | 3.1 | 3.59 | 9.8 | 11 | 14.5 | ||
| Dimension L*W*H (mm) | 2450* 2820* 2665 | 2840* 2820* 2665 | 3230* 2820* 2665 | 3620* 2820* 2665 | 4010* 2820* 2665 | 4502* 2820* 2665 | 4892* 2820* 2665 | 4750* 4205* 3740 | 5250* 4205* 3740 | 7175* 4205* 3740 | ||

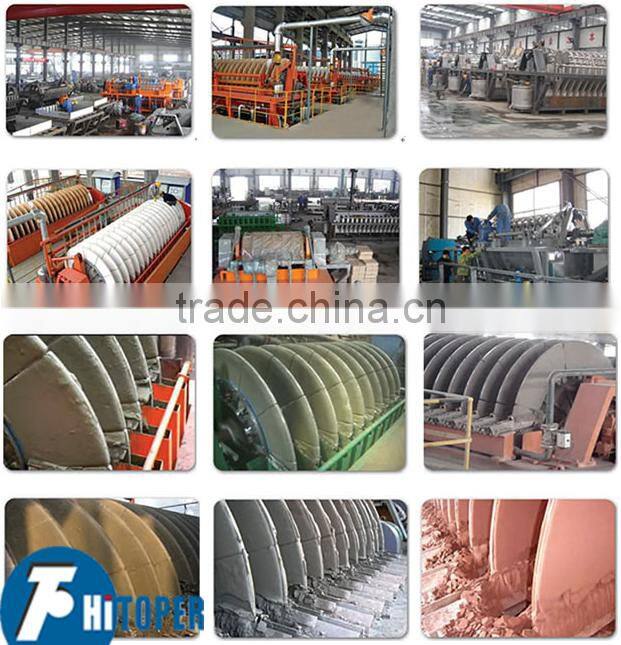

Widely application of the vacuum disc filter made in China:
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
ALL OF OUR FILTER AND SEPARATOR EQUIPMENT SERIES
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
