Automatic dischrge centrifugal separation of milk
1.separate 2 or 3 material
cess 10m3/ h
nvenient operation
4.automatic discharge
Working principle of water filter system
Disc centrifuge is vertical, drum installed at vertical shaft head, through the gear rotates in high speed droved by motor. There is a group of mutual nested dish parts - disc in the drum. A small clearance between discs. Suspension (or emulsion) by the drum center feed pipe join drum. When the suspension (or emulsion) flows through the gap, solid particles (or liquid) under centrifugal force sink on the disc and forme sediment (or liquid layer). Sediment slide from disc surface and from accumulation in the drum biggest internal diameter place. the liquid discharge out drum from the liquid discharge port . The role of the disc is shorten the solid particles (or liquid) settlement distance, expand subsidence area. Due to discs greatly improve the separator production capacity. Accumulate in drum is removed from drum by men after stopping, or vent through the discharge mechanism under non-stop situation.
Disc separator can complete two kinds of operations: liquid-solid separation (i.e. low concentration suspending liquid separation), says clarifying operation; Liquid-liquid separation (or liquid-liquid-solid) separation (namely emulsion separation), says separation operation.
Main Application of disc separator used in water filter system
Disc separator is one of the settlement centrifuge, used for separate difficult separation materials (such as viscous liquid and small solid grain composition of suspending liquid density or similar liquid composition of the emulsion, etc.). Separator of disc separator is the most widely used sedimentation centrifuge.
1. Mineral oil industry: fuel and lubricating oil purification used in ship host, diesel engine, power stations and etc ;
2. Dairy industry: fresh milk clarification and cleaning, degreasing,
3. Vegetable oil industry: palm oil purification and clarification, degumming, take off soap, dehydration and dewaxing, etc. of vegetable oil refining;
4. Beverage industry: beer, juice, beverage clarification, plant protein extraction, Biological engineering fermentation liquid clarification;
5. Starch industry: starch slurry enrichment and classification;
6. The pharmaceutical industry: purification or clarification during antibiotic, biochemical pharmacy extraction process, traditional Chinese medicine pharmacy clarification etc;
7. Chemical industries: chemical raw materials purification or clarification;
8. Wool grease industry: from wool washing wastewater in extraction and purification of wool grease;
9. Latex industry: purification and concentration of natural rubber whey;
10. The other industries, such as laboratory, petroleum, coking, kaolin, pulp recovery, electrolytic treatment, waste water treatment, environmental protection, etc., and the extraction of plant and animal protein, animal fat extraction and refining, mixed fatty acid separation.
Main technical data:
item | model | |||
DHY320 | DHY400 | DHY500 | ||
drum |
inner diameter(mm) | 265 | 400 | 500 |
rotating speed(r/min) | 7300 | 6525 | 5900 | |
separation factor | 7900 | 9290 | 10300 | |
capacity(m3/h) | 2 | 5 | 10 | |
Motor power(kw) | 4 | 11 | 18.5 | |
Dimension (L×W×H) mm | 950×950×1280 | 1500×900×1500 | 1805×1400×1120 | |
weight (kg) | 580 | 1000 | 1500 | |
Pictures:

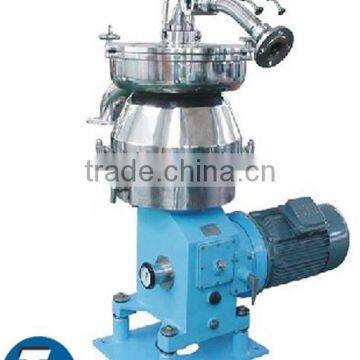

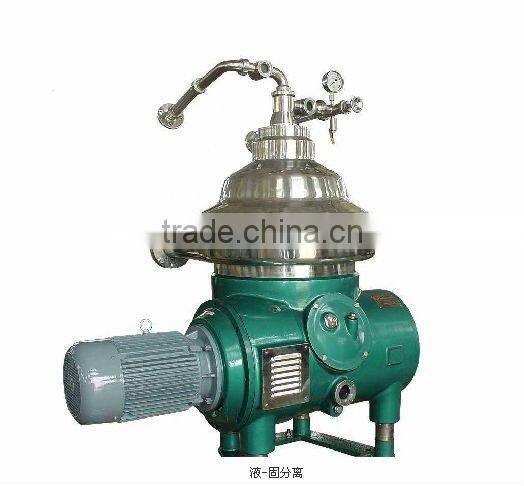

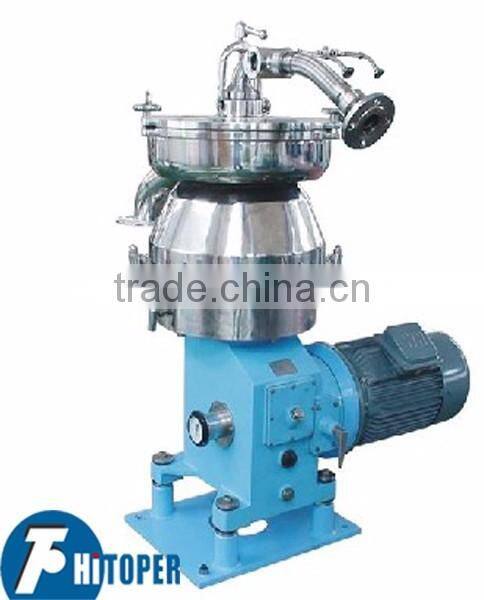

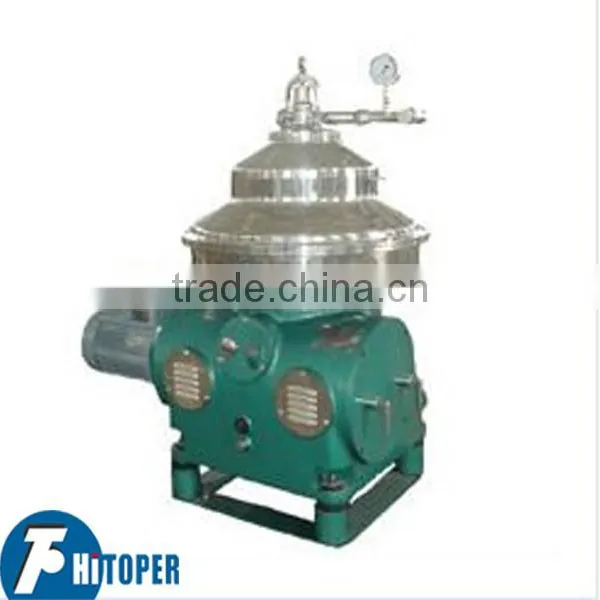

water filter system disc separator
