Product Details
Place of Origin: | Henan, China | Brand Name: | HI-TOPER | Model Number: | TPFL--PP01 |
After-sales Service Provided: | No overseas service provided |
Product Description
Filter element Introduction:
Filter element is a filter cleaning function professional terms, in order to purify the original fluid separation devices simple resources and resources are now mainly used in the oil filter cartridge, air filtration, water filtration and other filtration industry.
Filter element separation of solid particles in a liquid or gas, or a different material components to make full contact, speed up response time, you can protect the normal operation of the equipment or clean air, when the fluid enters the home of a certain size filter cartridge, its impurities are blocked , and clean stream flowing out through the filter. Liquid filter the liquid (including oil, water, etc.) of the liquid contaminated by unclean until the state of production and living needs, which is the liquid reaches a certain cleanliness.
Air filter contaminated air is clean to the state of production and living needs, that is, up to a certain air cleanliness.
Filter material :
Paper filter
Fiber filter: sintered metal fiber glass fiber polypropylene fiber polyester fiber mat
Comb filter: stainless steel mesh
Line gap filter
Installed in the filtration device, an element for the separation of substances, according to the material, use is divided into a variety of metal filters, activated carbon filters, air filters and other filtration,
Sintering carpet
Depth in line filter
Common species
1.Air Filter element
Also known as the air filter cartridge air filter, air filter, style. Mainly for engineering locomotives, cars, farm vehicles, laboratories, sterile operating room and operating room in a variety of sophisticated air filtration.

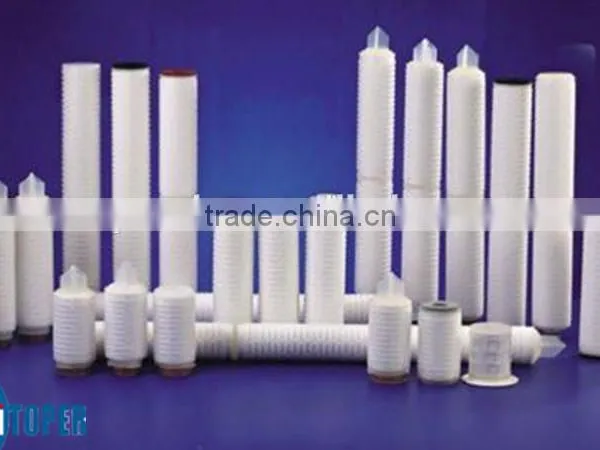

2.PP filter element
PP meltblown filter cartridge is also called melt-blown polypropylene microfiber filter cartridge made of hot-melt entangled fibers forming a three-dimensional space random porous structure, pore size dimension along the filtrate flow gradient distribution, collection surface, deep , fine fine filter in one, trapping different size impurities. Filter accuracy range 0.5-100μm, its flux is 1.5 times more than the same precision peak house filter can be configured to cover different types of connectors to meet the needs of various engineering installation.
3.Wound filter element
From the textile fiber yarn with good precision filtration performance wound on porous skeleton refined. Its yarn material are polypropylene fiber, acrylic fiber, cotton fiber. By controlling the tightness of the winding yarn and dilute density can be made when the winding different precision filter, can effectively remove a variety of liquid suspended solids, particles and other impurities, for a variety of liquids have a high purifying effect.
4. Folding microporous filter element
Microporous polypropylene folded filter (Polypropylene) thermal spray fiber membrane, nylon (Nylonb) polytetrafluoroethylene (PTEE) microporous membrane as the filter media made into precision filter element, with small and large filtration area, high precision. Filtration precision ranging from 0.1μm to 60μm. Filter cover seal and the overall structure of the connection are using hot-melt adhesive. Filter connector is internationally accepted three types: 222 connectors, 226 connectors, flat. Products in the factory have to undergo a rigorous integrity testing to ensure product performance and stability.
5. Activated carbon filter element
Activated carbon filter products are two major categories: compressed activated carbon filter, bulk activated carbon filter.
1), compressed activated carbon filter using activated carbon from coal and coconut shell activated carbon adsorption high as a filter material, to be food-grade adhesive sintering compression molding. Compression charcoal filter inside and outside were each wrapped in a layer of non-woven fabrics have filtration to ensure that carbon core itself does not fall charcoal, charcoal core at both ends with flexible NBR seals, so that the carbon core into the cartridge It has a good seal.
2) ,bulk loaded activated carbon filter will require special activated carbon particles in the plastic housing, the end cap weld with welding equipment in both end faces of the housing, respectively, at both ends of the housing into a nonwoven fabric functional filtration filters, ensure carbon core will not fall in the use of charcoal and black. According to customer needs, the housing cover may be made of different types of connectors. Interface: flat compression, pipeline (models: 4042,4044,4046 and so on).
6. Double filter
On sections: polypropylene meltblown filter accuracy 5μm
Under section: granular activated carbon filter built activated carbon 170g
Material: ABS, PP
Length: 250mm outer diameter: 70mm flux: 8L / S total flux: 6-8T
Activated carbon indicators: strength> 90; iodine value (mg / g)> 950; methylene blue value (mg / g)> 120
7.Ceramic filter
As the use of ceramic filters is a natural physical material, so it will not produce secondary pollution in water purifiers use, meanwhile, as the minerals are not in all but in addition to not like pure water, it will keep the water beneficial minerals, while effectively removing silt, bacteria, rust, never plug, long service life, filtering effect of excellence, etc., At the same time it is not afraid to plug, able to adapt to water quality is very bad situation. Currently the highest precision filtration international double control film ceramic filter ceramic filter, the average pore size of 0.1μm. The cartridge filter with water do not boil after, you can drink, fully meet the national direct drinking water standards.
8.Stainless steel filter
Stainless steel filter (Stainless Steel filter) [1], with good good filter performance, filtration of 2-200μm uniform particle size may play a surface filtration performance, the main multi-layer stainless steel sintered mesh filter, filtration accuracy of 0.5 -200μm, its dimensions according to user requirements.
Stainless steel filter features:
A good filter performance, filtration of 2-200μm uniform particle size may play a surface filtration properties;
2 corrosion resistance, heat resistance, pressure resistance, abrasion resistance;
3 stainless steel filter pore uniform, accurate filtering accuracy;
4 stainless steel filter flow per unit area of large;
5 stainless steel filter suitable for low temperature, high temperature environment; can be reused after cleaning, replace free.
Applications
· Pharmaceutical industry: a variety of antibiotics and other liquid pre-filter
Food and beverage industry: wine, mineral water, drinking water filtration
· Oil industry: oil field water filter
· Electronics industry: high-water pre-filtration
· Chemical industry: a variety of organic solvents, acids, lye filtration
Metallurgical industry: for filtering rolling mill, continuous casting machine hydraulic system filters and a variety of lubrication equipment.
Textile industry: purification and uniform filter polyester melt in the drawing process, the protection filter air compressor, compressed gas oil in addition to water.
Technical performance
· Filter Accuracy: 0.1um0.2um0.45um1um3um5um10um20um30um50um
· Filter Length: 5 '10 "20" 30 "40"
* Filter Diameter: 69mm83mm131mm
· Filter inner diameter: 28mm ~ 40mm
* Try the PH value: 1-12
• Maximum temperature: ≤80 ℃ 0.1Mpa when
· Maximum working pressure: 0.3Mpa50 ℃ when
Maximum Anti-pressure: 0.2Mpa25 ℃ when
· Top sterilization temperature: 120 ℃ for half an hour
