Ultracentrifuge, liquid-liquid tubular separation machine hot saled for water oil filtration
High speed tubular centrifuge introduction:
Centrifuge test tube is a kind of centrifugal equipment with high separation factor, The minium separation particle size is 1 micron. It is esprcially used in extraction, enrichment and clarification of material with the following situations: the specific gravity difference between solid phase and liquid phase is small; the partical size is small and solid content is low; the medium is strong corrosive, Mainly used in the solid-liquid separation adn liquid-solid separation for food, chemical, beverage, biological pharmacy, blood products, solid-liquid separation of intermediates and so on, this machine is with the advantages; good separation effect, high yiled, somall cover area, easy operation. etc.
GQ clarify series:
GQ clrify type is mainly uesd for various suspension very difficulty to seaprate, especially suitable for suspension that is low concentration and fine grain, small specific gravity difference between solid phase and liquid phase, soli particles with large density deposit on the inner wall of the drum, gradually forming a sediment layer, which needs artificial discharge after downtime. the clarified fluid to the upper part of the drum is discharged from the drainage mouth.
Main application: the clarfication for all kinds of liquid medicine, glucose chlorhexidine, malic acid, various oral liquid, Asiatic moonseed rhizome, extraction for coal tar, graphite slag, a varierty of protein, algae, pectin, refining for honey, blood separation, hypha of vaccine, the settlement of various glucose, purification of paint, dye, resin, rubber solution.
GQ clarify series technical parameters:
| Model | drum | nozzle diameter (mm) | Productivity (water flow) (kg/h) | power (kw) | weight (kg) | ||||
| Inner diameter (mm) | Height (mm) | volume (L) | Rotary speed (r/min) | separation factor | |||||
| GQ45 | 45 | 280 | 0.45 | 50000 | 60000 | 2,3 | 150 | 0.75 | 90 |
| GQ75 | 75 | 450 | 2.7 | 21000 | 22500 | 4,6 | 500 | 1.5 | 300 |
| GQ105 | 105 | 730 | 6 | 19000 | 21000 | 6,8 | 1500 | 2.2 | 480 |
| GQ125 | 125 | 730 | 7.4 | 16000 | 18000 | 5,8,9 | 2000 | 3.0 | 520 |
| GQ137 | 137 | 730 | 9 | 15000 | 17000 | 6,8,10 | 3000 | 3.0 | 550 |
| GQ150 | 142 | 730 | 10 | 15000 | 17000 | 8,10,12 | 3000 | 3.0 | 550 |
GF separation series:
GF tubular centrifuge is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-solid separation with few impurities, liquid with larger density deposit on the outer wall of the drum,liquid with smaller density deposit on the inner wall of the drum. Both of them get tobe the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.
Main application: transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification, all kinds of powder materials, Span- 80 material liquid purification, various oral liquid, various medical liquid, the separation of contenders 0'(plasma separation of biological medicines and plasma sxtraction for animal blood). cooking oil, Cai Pan soaking liquid, tea polyphenol, soybean phospholipid concentrate refine, oil-water separation and wastewater treatment,etc.
Technical parameters of the high speed tubular centrifuge :
| Model | drum | nozzle diameter (mm) | Productivity (water flow) (kg/h) | Power(kw) | weight (kg) | ||||
| Inner diameter (mm) | Height (mm) | volume (L) | Rotary speed (r/min) | separation factor | |||||
| GF45 | 45 | 280 | 0.45 | 50000 | 60000 | 2,3 | 150 | 0.75 | 90 |
| GF75 | 75 | 450 | 2.7 | 21000 | 22500 | 4,6 | 500 | 1.5 | 300 |
| GF105 | 105 | 730 | 6 | 19000 | 21000 | 6,8 | 1500 | 2.2 | 480 |
| GF125 | 125 | 730 | 7.4 | 16000 | 18000 | 5,8,9 | 2000 | 3.0 | 520 |
| GF137 | 137 | 730 | 9 | 15000 | 17000 | 6,8,10 | 3000 | 3.0 | 550 |
| GF150 | 142 | 730 | 10 | 15000 | 17000 | 8,10,12 | 3000 | 3.0 | 550 |

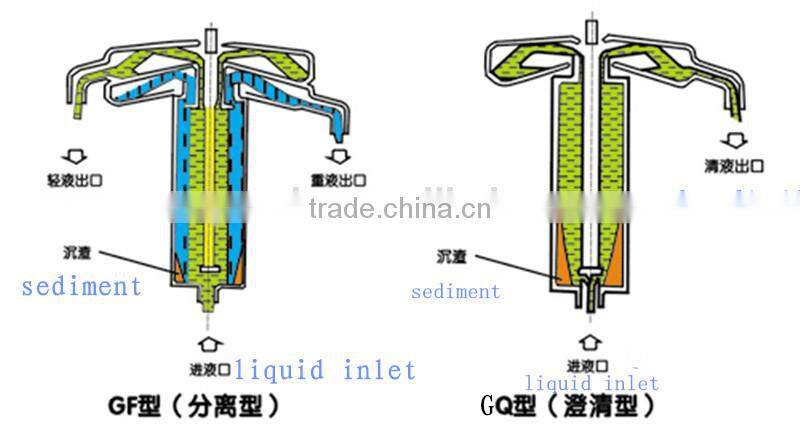

Tubular Centrifuge Principle:
Other type of Toper centrifuge series:
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.Our technical engineer can also to your country guide for the installation ,operation ,solve problems and so on if required.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of
various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing
devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth.
The products are simple in structure but good in separating effects, convenient in use, and widely
applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing,
paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment
industries.
All of our products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
