Product Details
Condition | New | Type | Centrifuge | |
Product Type | Other, separator | Place of Origin | Henan, China | |
Brand Name | Toper | Model Number | PS300 | |
Voltage | 380V/220V | Power(W) | 1.1KW | |
Weight | 180KG | Dimension(L*W*H) | 890*600*500 | |
Certification | CE | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

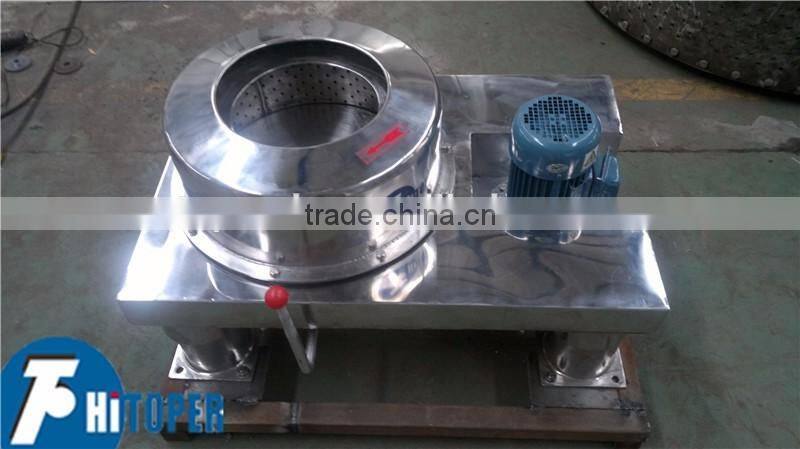

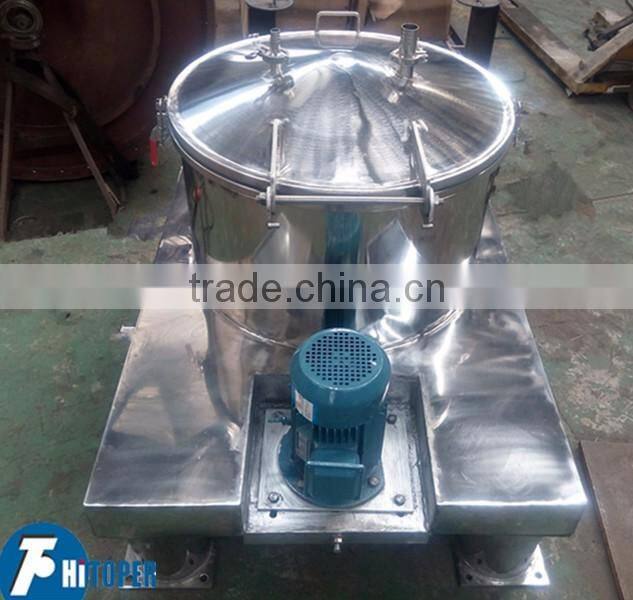

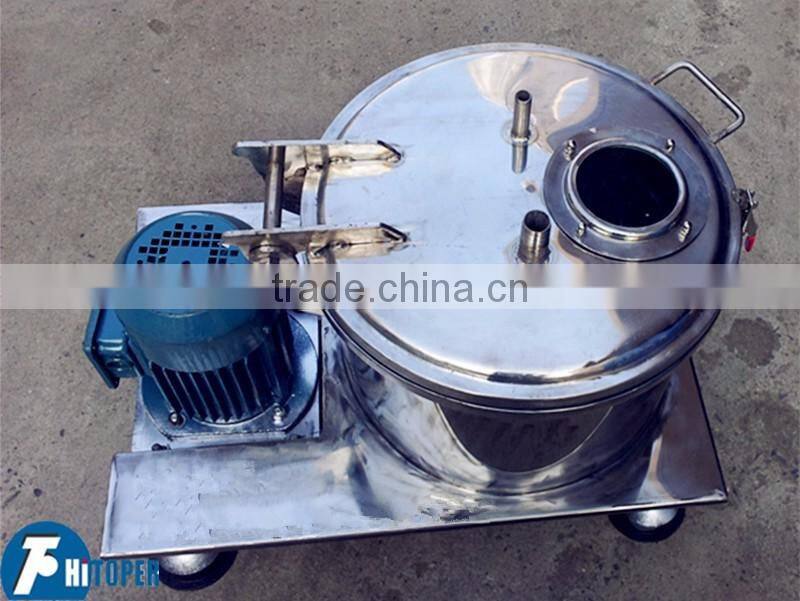

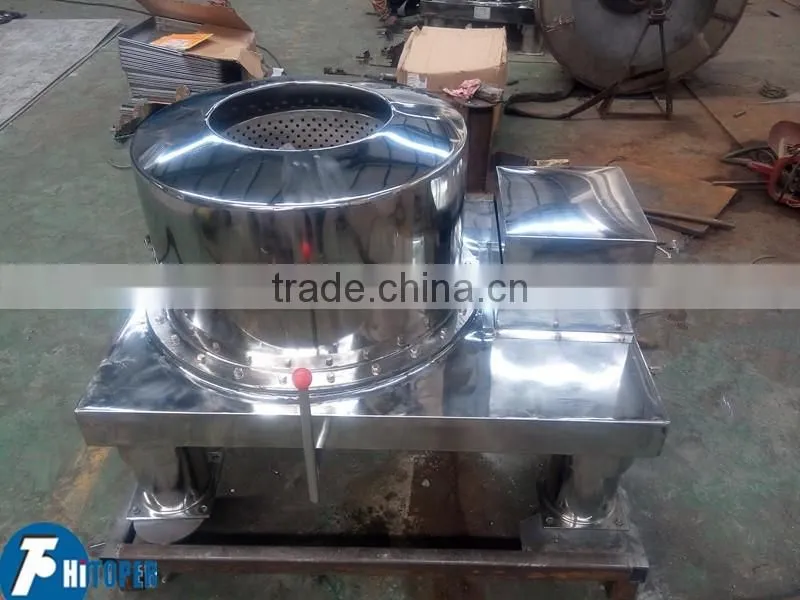

Centrifugal screeners drum centrifuge of stable working flat-plate type
PS type flat-plate centrifuge structure and features:
It is top discharging closed type and intermittent operation filter euipment. Materials goes into the drum through the feeding pipe on the housing of hermetic closure, under the action of centrifugal force, the liquid is discharged out of machine through the filter medium, and solid are remained inthe drum, after drum stops, open the top cover to discharge. It has such features of smooth running, esay operation and feeding, washing and dehydrating under the state of hermetic closure.
High Lights of the PS Type flat-plate centrifuge unit :
- Ps type adopts plate andhigh viscosity damper shock absorbers, no concrete foundation and easy operation adn maintenance.
- The drum, housing and foundation plate are polished; all fasteners are stainless steel; driving components are stainless steel; seals are silicone rubbers, with cleaning spray system, the machine is in line with the GMP requirement.
- The housing is fitted with big cover, easily discharges, good sealing, suitable for thr processing separating poisonous and harmful medium. It uses explosion-proof motor variable frequency drive, anti-static V-belts, filling nitrogen protection and it is suitable for processing inflammable and explosive solid-liquid separation.
- The machine has the good seal, explosion-proof and highly filtration
Technical data of PS flat-plate centrifuge :
type | drum | separation factor | (kw) power | opening limit | (kg) weight | (mm) dimensions | |||
(mm) diameter | (L) volume | (kg) limit | (r/min) speed | ||||||
PS300 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 1000 | 180 | 890×600 ×500 |
PS450 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 1160 | 250 | 980×650 ×870 |
PS600 | 600 | 40 | 50 | 1500 | 756 | 3 | 1700 | 800 | 1300×880 ×900 |
PS800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 2000 | 1300 | 1800×1200 ×1140 |
PS800-NA | 800 | 100 | 135 | 1500 | 1008 | 7.5 | 2000 | 1300 | 1800×1200 ×1140 |
PS1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2250 | 2000 | 2050×1500 ×1140 |
PS1000-NA | 1000 | 150 | 200 | 1200 | 806 | 11 | 2250 | 2000 | 2050×1500 ×1140 |
PS1200 | 1200 | 250 | 300 | 800 | 431 | 11 | 2700 | 2500 | 2350×1650 ×1370 |

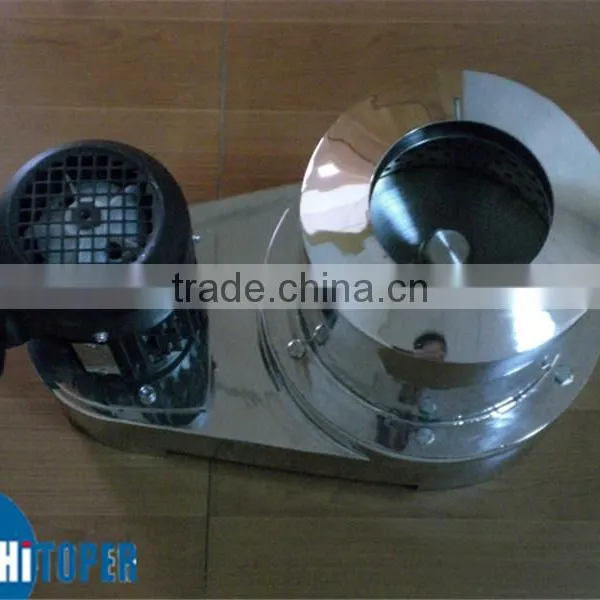

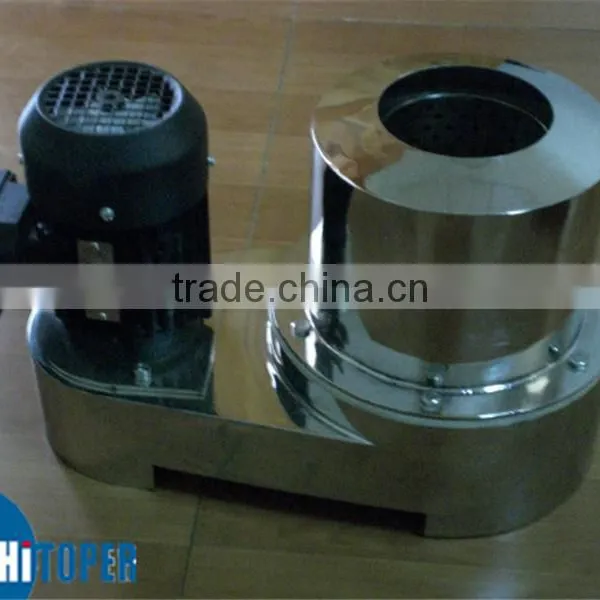

Different model of the PS seires flat-plate centrifuge :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely
Order Notice:
- For different requirements of separation, we have designed for customers to choose the appropriate type, when the customer order, customer can confirm the following circumstances.
- Base: With concrete foundation and without concrete founfation(with shock absorber_
- Material: Parts contact the material can be stainless steel, titanium, carbon steel, rubber lining, and plastic lining.
- Drive method:Using electromagnetic speed motor drivecan be realized in low-speed feeding, high-speed separation requirmentsl improve operations, suitable for a variety of materials separation. Need explosion-proof occasion, can be used in explosion-proof motor drive inverter. Generally no need of speed sdjustable occasion, can be used ordinary or explosion-proof motor.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
