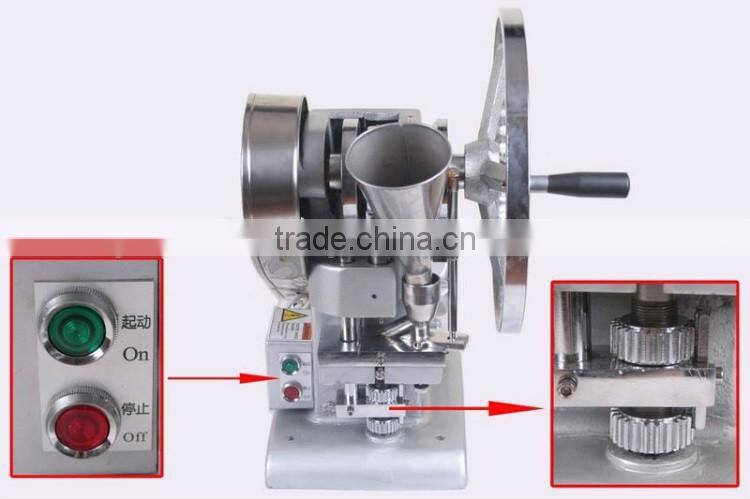

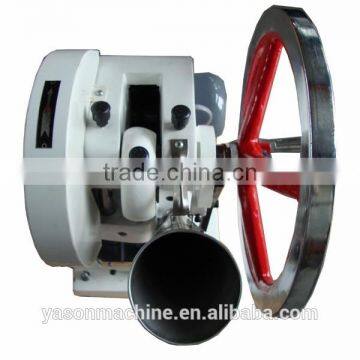

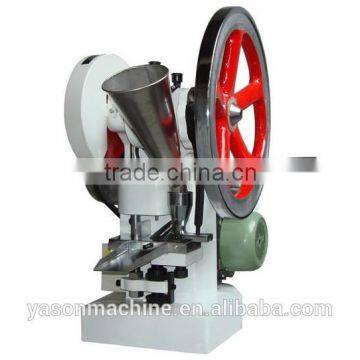

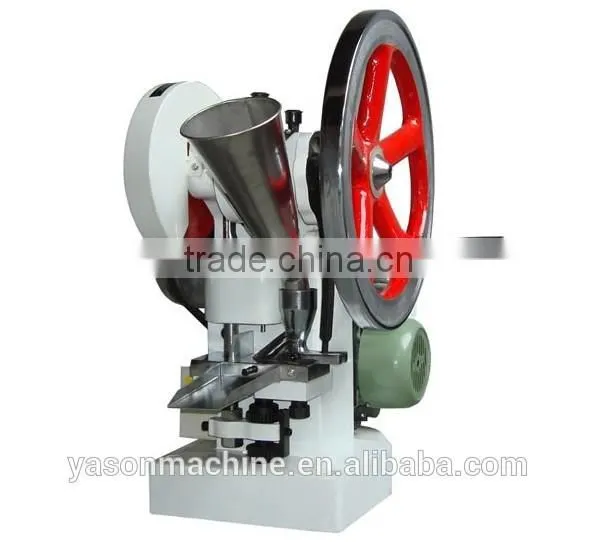

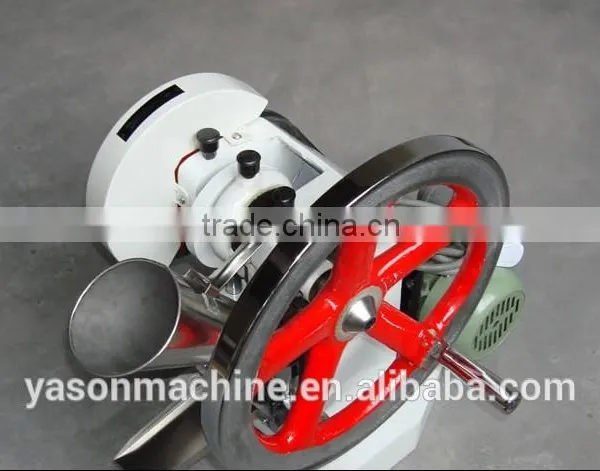

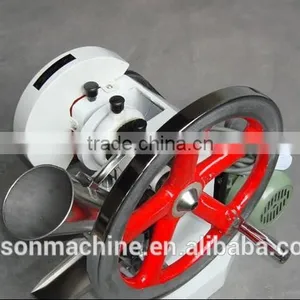

TDP1.5 Single Punch Tablet Presser
- 1000 Piece / Pieces per Month
- shenzhen
- T/T D/P D/A Credit Card PayPal
- High standard single punch tablet molding machine pills press tablet making Table press machine
- salt tablet press machine milk tablet machine pill press machine for sale
- Single Punch Tablet Press forming machine ,milk slice press machine,pills pressing machine
- Single Punch Tablet Pressing machine ,milk slice press machine with high quality
- 2022 hot sale Tablet Press forming machine ,milk slice press machine,mini press tablet machine
- Auto medicine powder rotary pill tableting machine automatic tablet press machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | YASON |
Model Number: | TDP-1.5 | Type: | Single Punch | Production Capacity: | 4500pcs/h |
Max. Pressure(KN): | 15KN | Max. Tablet Thickness(mm): | 12mm | Max. Tablet Diameter(mm): | 12mm |

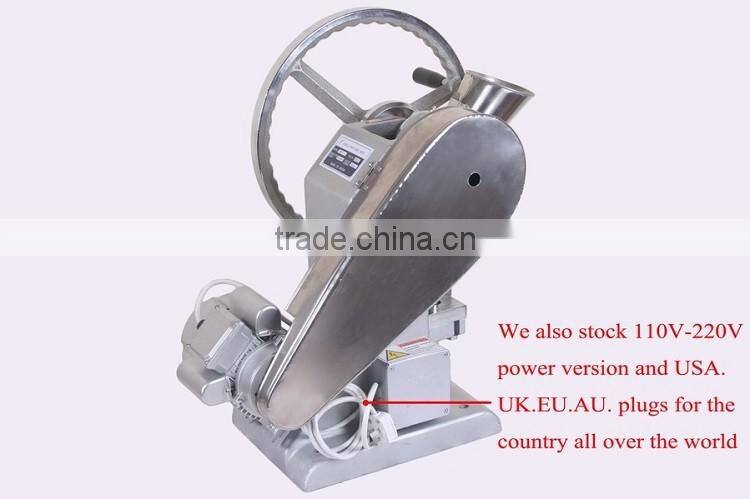

Voltage: | 220V/380V, 110V or 220V or 240v or 380v or any Voltage customized | Power(W): | 0.55kw | Weight: | 70kg |
Dimension(L*W*H): | 570*380*630mm | Certification: | CE | After-sales Service Provided: | No overseas service provided |
Product Description
TDP single punch tablet press pill press

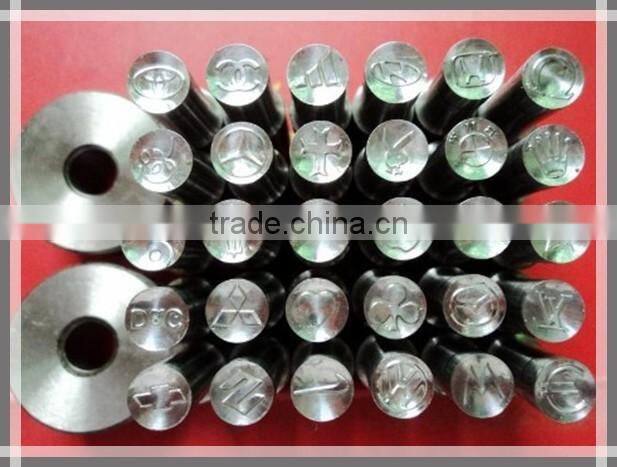

tablet machine with 1 set free round die
EXPRESS MAIL SHIPPING with TRACKING NUMBER
♣Introduction♣
A lot of the branded vitamin tablets on the high street have unnecessary additives and supplements that you just don’t need. This press allows you to mix the vitamins and supplements that you require for your exact diet and convert them into convenient pills.Maybe you are considering setting up a small business selling vitamin, weight loss or herbal tablets. If so this is the right press for you. It is able to produce up to 3000-6000 tablets per hour, using a maximum presser of 15KN. It will run for hours continuously producing identical tablets time after time, giving your business a professional look.
TDP type tablet press,able to make powder and granular material compressed into a circular shaped tablet.Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units.The machine performance is excellent,adaptable,easy to use,easy maintenance,small size,light weight.Without electricity may could also be hand-pressed.A large pressure of tablet press machines,filling a large depth,thus the size range of tablet is large,able to adapt to the pharmaceutical industry to produce a variety of tablet medicine requirements and other industry requirements of produce similar products,deeply welcomed by customers of various industries.
♣Technical Parameters♣
Model: | TDP-0 | TDP-1.5 | TDP-5 | TDP-6 |
Max.Main Pressure (kn) | 15 | 15 | 50 | 60 |
Max.Pressure Diameter(mm) | 12 | 12 | 20 | 25 |
Max.Filling Depth(mm) | 10 | 12 | 16 | 18 |
Max.Tablet Thickness(mm) | 6 | 6 | 6 | 7.5 |
Max. Production capacity (p/h) | 3000 | 4500 | 4000 | 3000 |
Motor (KW) | Manual | 0.55 | 0.75 | 1.1 |
Outside size(mm) | 360*280*450 | 570*380*630 | 700*380*695 | 700*380*695 |
Weight (kg) | 30 | 70 | 140 | 165 |
♣Feature♣
Following are the TDP single tablet press's amazing functions:
- Able to make powder and granular material compressed into a circular shaped tablet
- Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units
- Larger Diameter Tablets up to 25mm
- Presses both Round and Irregular Tablets
- Larger Motor and Compression Force
- Adaptable,easy to use,easy maintenance,small size,light weight
- It will run for hours continuously producing identical tablets time after time
- Friendly Support and Prompt Services
- No special forms to fill out
- Up to 6000 tablets per hour can be achieved,using a maximum presser of 15KN

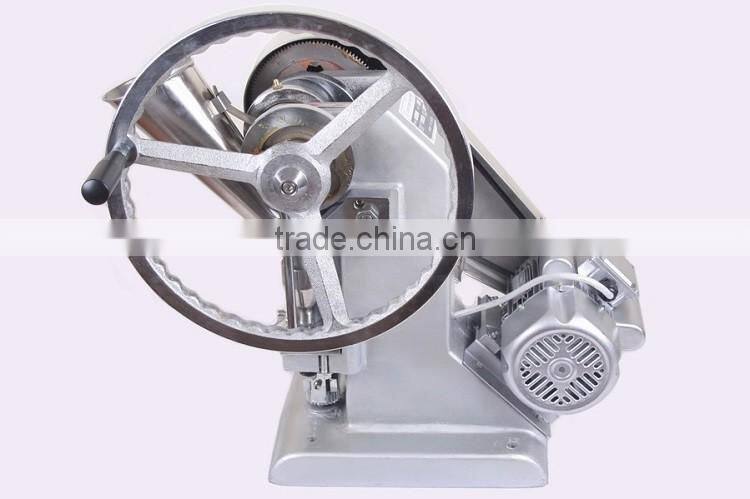

- A powerful electric motor and can also be hand operated
♣How to use♣

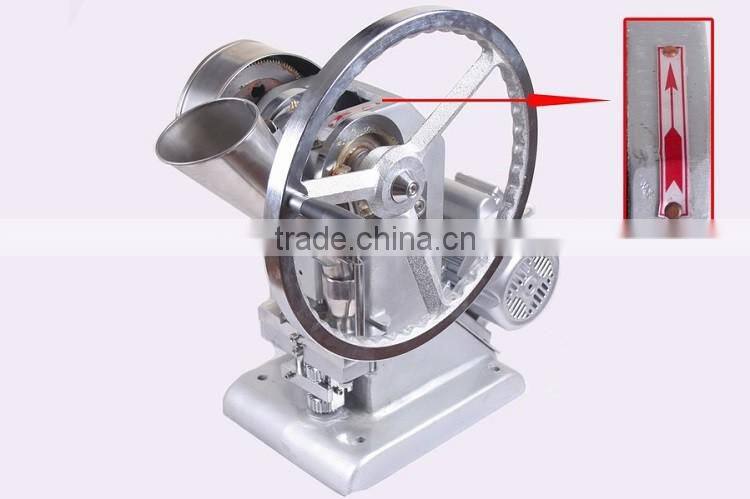

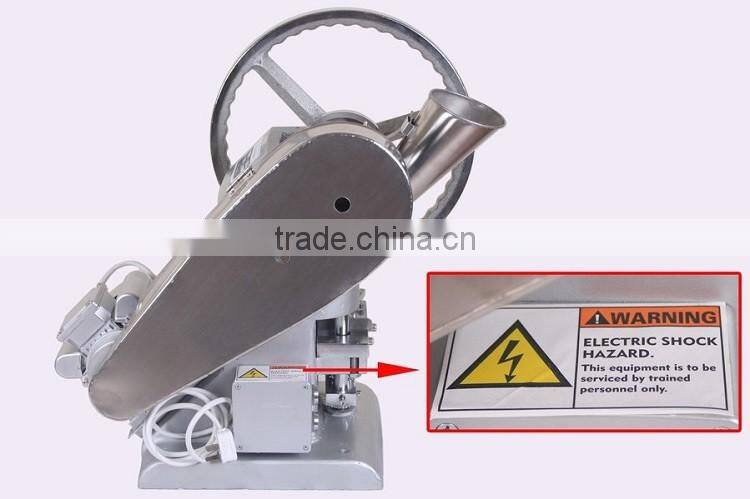

1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.
2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition.
What you will get
1.1 X Single punch tablet press machine
2.Operation Manual will be sent by e-mail
The following is the video about this machine :
/watch?v=xQNfDmnZf3w&feature=youtu.be
♣Item Units and Pictures♣
Packaging:Wooden Case+Film
Shipping Time:Within 5days after payment confirmed
Shipping Method:DHL(only DHL can accept this kind of package),Sea
Why Choose Us?
machines undergoes an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
Before Purchase
Need any information of the item before customers' purchase. On-hand professional technical staff are willing to solve any problems in 24 hours.And an instruction attached with machines' package before the shippment.
Factory Price
Most of machines are produced in our own factory ,thus we can offer you the best price and best technical service at the same time . is committed to providing high quality merchandise with good price.
Payment Method
These payments of T/T, Western Union, Paypal are accepeted. Any problem with payment during the course of payment, some instruction will be offered, only drop your questions by mail, Skype, MSN. Our staff will answer you within 24 hours.
Logistics
Cooperated with reliable internationally trusted logistic service provider such as DHL, EMS and UPS, ship to exceeding 100 countries around the world. A favorable choice of logistic company from our customer is accepted. The goods is frequently shipped out within 3 workdays, not including special important chinese festivals in china.
Tracking Number
We will inform customers of date of shippment, and tracking number will be confirmed, then write to inform our customers in 2-3 days after delivery goods.
Complainment
Any comments, suggestions are appreciated from our customers. Customers' comments will be along with our growing-up experience. will be very grateful to that.
Our company is a professional manufacturer of packing machines and packing materials. On the basis of advanced equipment and workmanship, we have excellent production technicians and an efficient distribution team, as well as good service staff members, so that we can undertake your orders very efficiently. When we have the confidence on the high quality of our products, we offer very competitive prices at the same time.
Our business depends on your business and our purpose is "supporting you". We mainly provide popular products with high quality at home and abroad and create competitive advantages for our customers for their own competition. In addition, you can suggest any design or give any special requirement for our products and we will do our best to settle them for you. We believe our honesty and sincerity will make any cooperation agreeable.
We look forward to long-term and prosperous cooperation with customers around the world. If you have any inquiry, please don't hesitate to contact us and we are on duty during the whole 24 hours. Your satisfaction is exactly what we pursue.
