LK003M Hotest Colorful egg farm recreative game machine accessories ticket dispenser

LK003M Hotest Colorful egg farm recreative game machine accessories ticket dispenser

1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.

2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;

3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;

4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.

Function

1. Program control and counting precision

2. Speed ticket

3. Has a reverse function

4. Score / ticket set-up function

5.Pervent idle

6.Cart ticket cleat-up

7.Prevent pulling tickets

8.LED display

Product parameters

Operaing Voltage: DC+12V+10%

Ticket width: 29mm

Ticket length: 50mm~120mm

Operaing Current:<30mA

Load Current:<1 A

Output Mode:OC

Pulse width:50ms

Package: 20 PCS/ctn

Dimension: 540x275x270mm

G. W: 12.20kg

Application area

2013 latest redemption ticket dispenserwidely used in  kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .

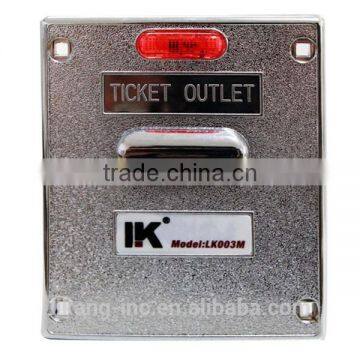

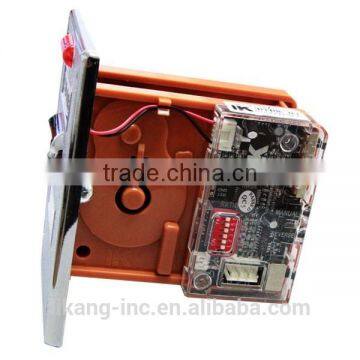

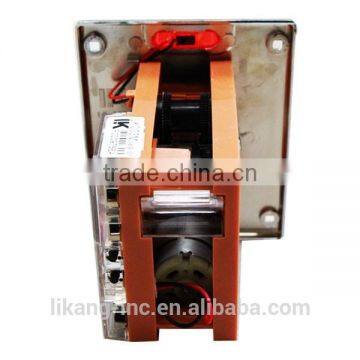

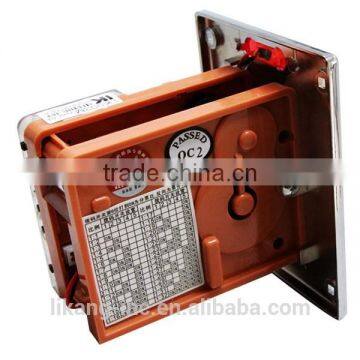

Detailed images

ROHS certification

Company

Shipping

Thanks for your time.For more information,welcome to contact me,Juliet will do my best to support you.
