LK003AC High speed ticket dispenser for Super Mario Bros machine
Function
1. Program control and counting precision
2. Speed ticket
3. Has a reverse function
4.Pervent idle
5.Cart ticket cleat-up
6.Prevent pulling tickets
7. Mantissa memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)
8, Automatic intelligent program recognize long ticket and short ticket(50mm,25mm)
Parameters
| Specification | Voltage | DC 12V ±10% | |||||||
| Operaing current | <30mA | ||||||||
| Load current | <1 A | ||||||||
| Output mode | OC | ||||||||
| Pulse width | 50ms | ||||||||
| Input low voltage | <1.5V | ||||||||
| Input high voltage | 2V-24V | ||||||||
| Speed of tickets | 250mm/s | ||||||||
| Ticket Width | 29mm | ||||||||
| Ticket Length | 50mm~120mm | ||||||||
| Packing Details | Package | 20 PCS/ctn | |||||||
| G.W. | 12.20kg | ||||||||
| Carton Dimension | 540x275x270mm | ||||||||
| Delivry Details | Delivry time | 4-5 days | |||||||
| Payment term | T/T or Westem Union | ||||||||
| Suitable For | Available | kiosk, redemption machine, shop ,parking lot etc. | |||||||
Instructions
1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.
2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;
3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;
4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.
Application area
2013 latest redemption ticket dispenser widely used in kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .

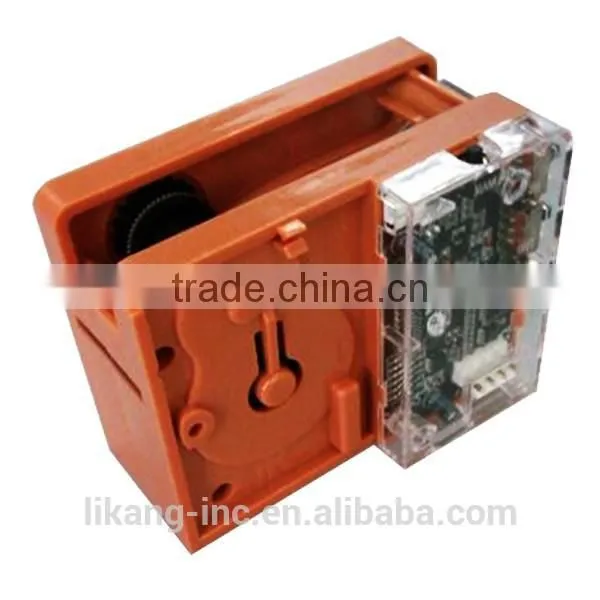

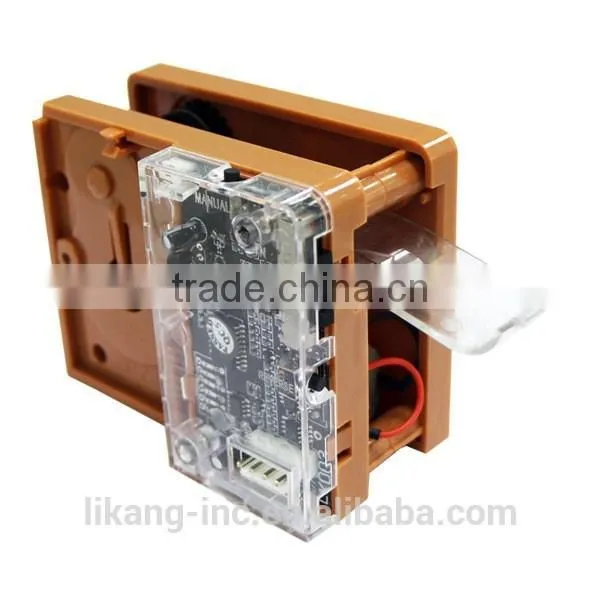

Detailed pictures
ROHS certification
We are a professional maufacturer
We attend many professional shows every year
More products for your reference
Thanks for your time.If you have any question,pls feel free to contact us.
