LK003M Driving Bicycle Simulator Video Arcade Game Machine Parts

LK003M Driving bicycle simulator video arcade game machine parts

1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.

2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;

3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;

4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.

Function

1. Program control and counting precision

2. Speed ticket

3. Has a reverse function

4. Score / ticket set-up function

5.Pervent idle

6.Cart ticket cleat-up

7.Prevent pulling tickets

8.LED display

Product parameters

Operaing Voltage: DC+12V+10%

Ticket width: 29mm

Ticket length: 50mm~120mm

Operaing Current:<30mA

Load Current:<1 A

Output Mode:OC

Pulse width:50ms

Package: 20 PCS/ctn

Dimension: 540x275x270mm

G. W: 12.20kg

Application area

2013 latest redemption ticket dispenserwidely used in  kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .

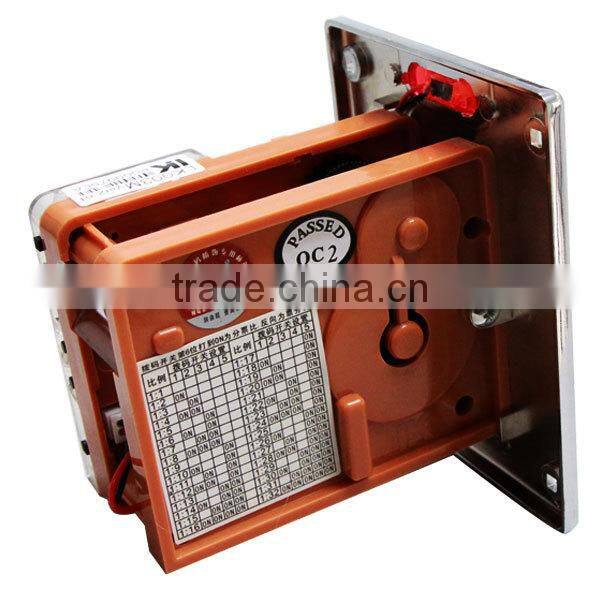

Detailed images

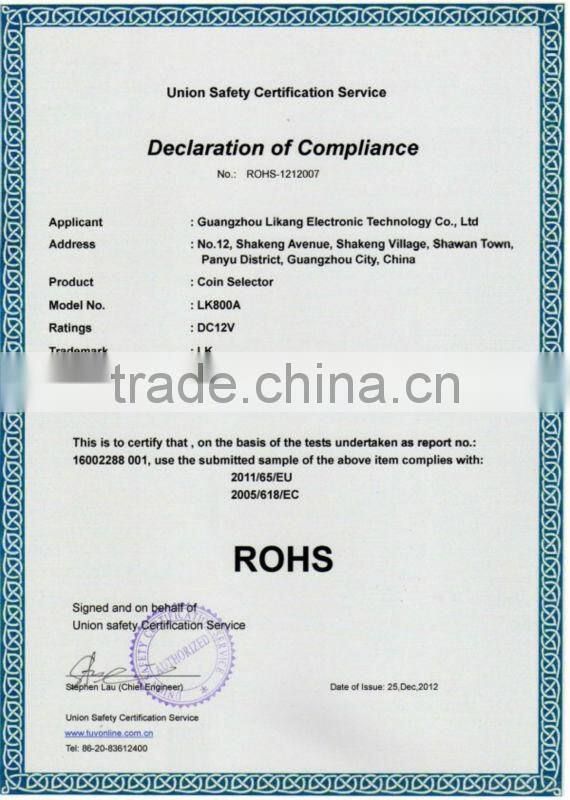

ROHS certification

Company

Shipping

Thanks for your time.For more information,welcome to contact me,Juliet will do my best to support you.
