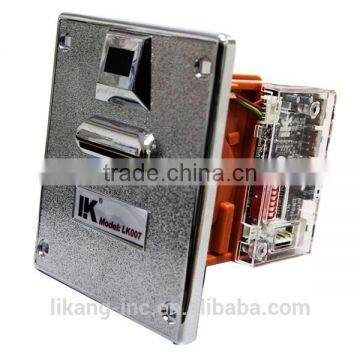

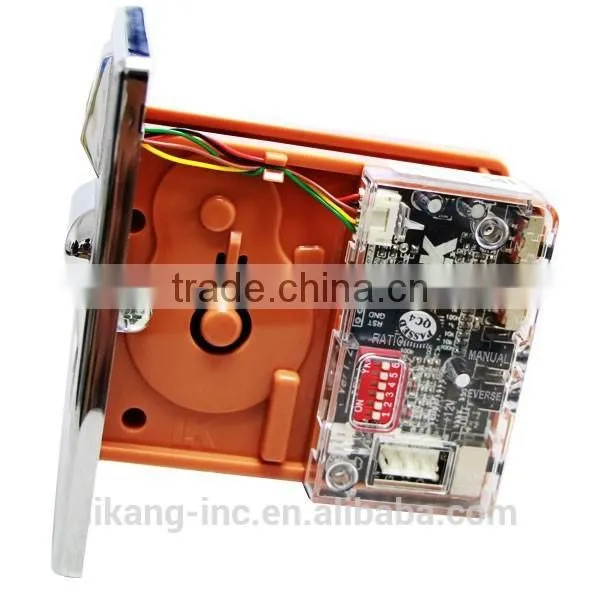

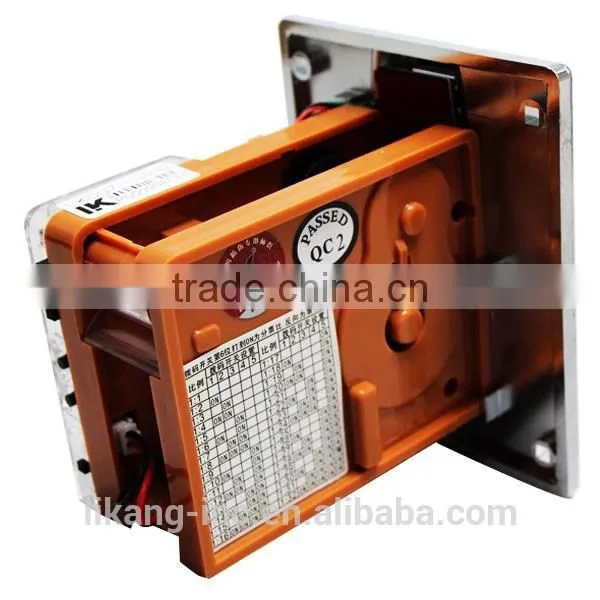

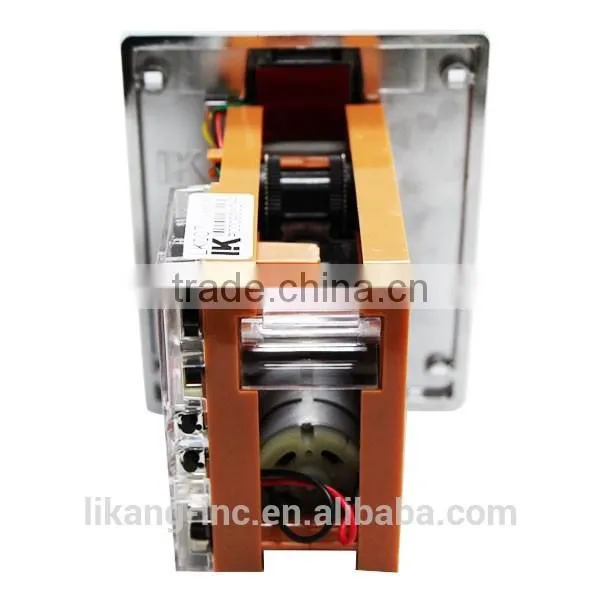

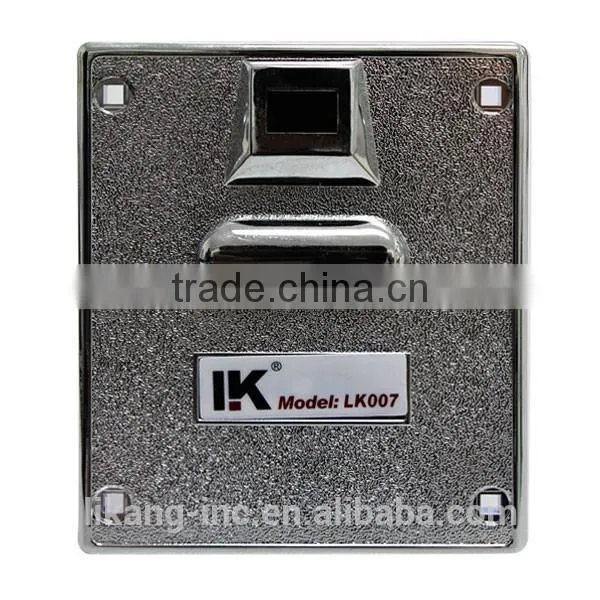

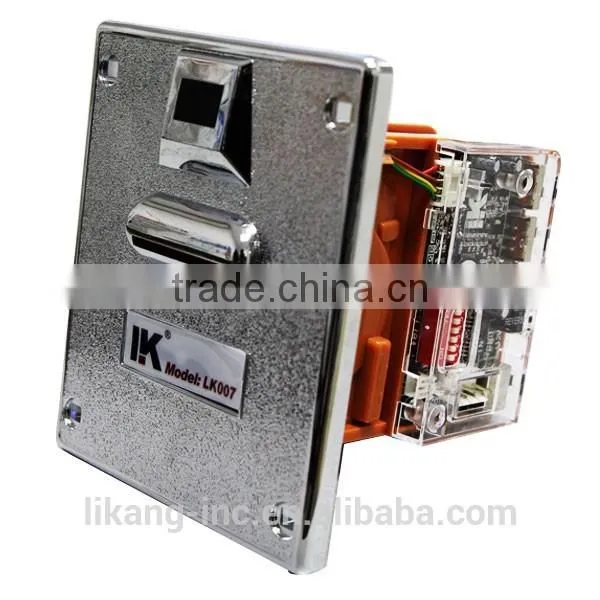

LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine

LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine thumbnail-1
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine thumbnail-2
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine thumbnail-3
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine thumbnail-4
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine thumbnail-5
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine photo-1
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine photo-2
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine photo-3
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine photo-4
LK007 Ticket Dispenser Used in Sega Sonic All-Star Arcade Racing Game Machine photo-5
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LK
Model Number:
LK007
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Likang Electronic Technology Co., Ltd. Panyu Branch
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LK
Model Number LK007
Place of Origin Guangdong, China

LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine







LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine





Function



 1. CPU Program control and counting precision



2. Speed ticket



3. Has a reverse function

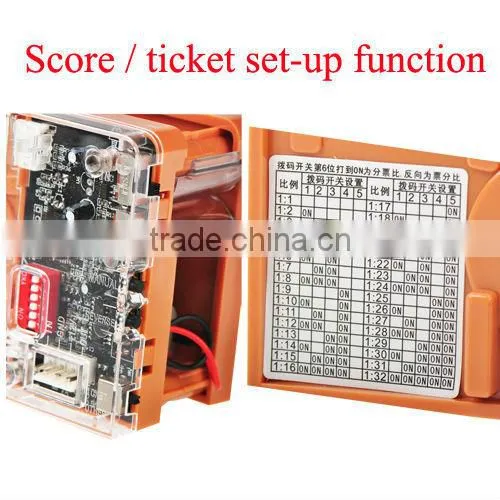

4. Score / ticket set-up function



5.Pervent idle



6.Cart ticket cleat-up



7.Prevent pulling tickets



8.Digital display



9,Matissa and grand total score memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)







Parameters





SpecificationPanel materialElectroplating
VoltageDC 12V ±10%
Operaing current<30mA
Load current<1 A
Output modeOC
Pulse width50ms
Input low voltage<1.5V
Input high voltage2V-24V
Speed of tickets250mm/s
Ticket Width29mm
Ticket Length50mm~120mm
Packing DetailsPackage20 PCS/ctn
G.W.13.20kg
Carton Dimension540x275x270mm
Delivry DetailsDelivry time4-5 days
Payment termT/T or Westem Union
Suitable ForAvailablekiosk, redemption machine, shop ,parking lot etc.







 Instructions





1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.



2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;



3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;



4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.







Application area





2013 latest redemption ticket dispenser widely used in  kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .







Detailed pictures



LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machineLK007 Ticket dispenser used in sega sonic All-Star arcade racing game machineLK007 Ticket dispenser used in sega sonic All-Star arcade racing game machineLK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine



LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine

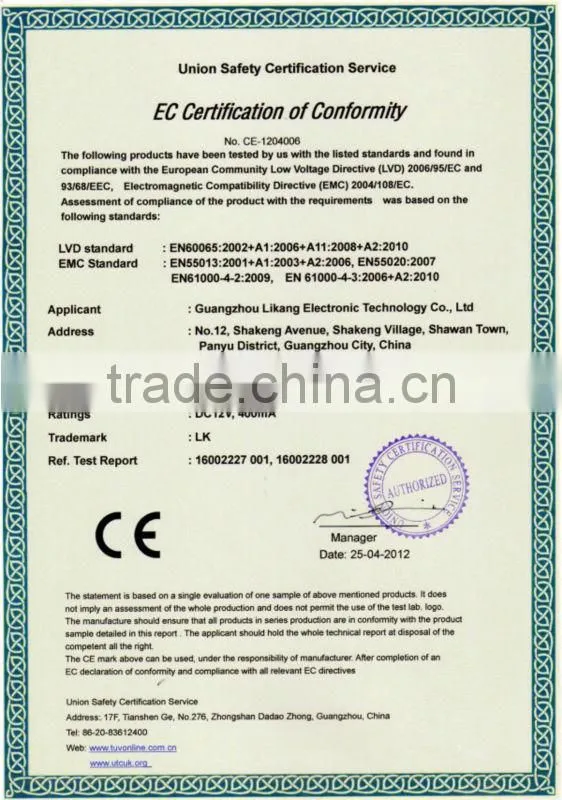

CE&ROHS certification





LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine





LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine





 Shipping





LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine







Company



LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine







Exhibition



 LK007 Ticket dispenser used in sega sonic All-Star arcade racing game machine





Likang is your best choose,why?







1: Quality guaranteed



Special supervision team to control quality. All the products will be inspected carefully before delivery





2: Competitive  price



Compare with other manufacturers in this field , at the same quality , our price is competitive than others .





3: Payment terms



By T/T, 30% of the payment should be paid in advance and the rest should be paid before delivery.





4: Delivery time



1-5 days after payment





5: After service guarantee



 Assure you the best services at all times.





6: Warranty



We offer a warranty period for one year.





7: Shipping



We will prepare favorable and professional shipping for you .







Thanks for your time.For more information,pls feel free to contact me.
