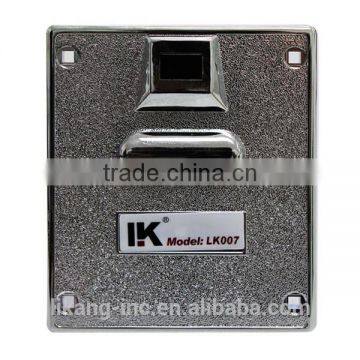

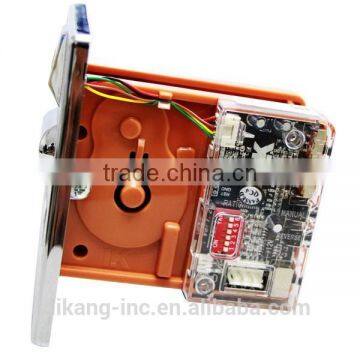

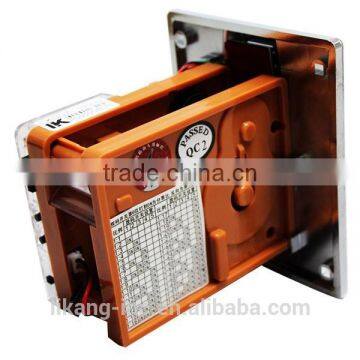

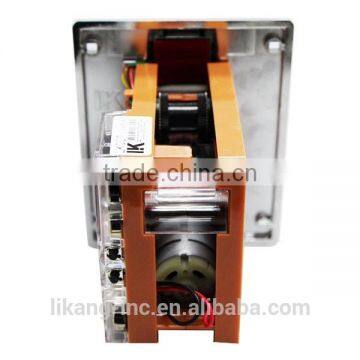

LK007 Ticket dispenser used in tennies ball games
Function
1. CPU Program control and counting precision
2. Speed ticket
3. Has a reverse function

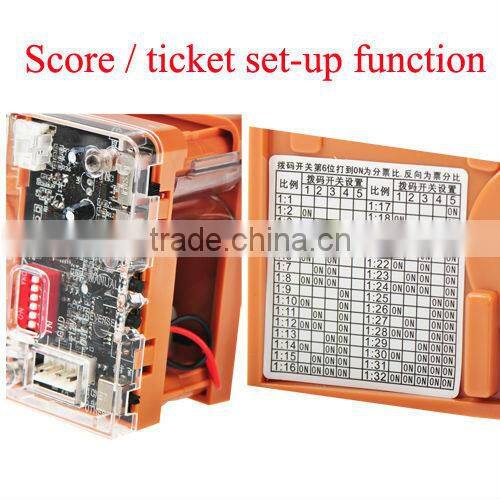

4. Score / ticket set-up function
5.Pervent idle
6.Cart ticket cleat-up
7.Prevent pulling tickets
8.Digital display
9,Matissa and grand total score memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)
Parameters
| Specification | Panel material | Electroplating | |||||||
| Voltage | DC 12V ±10% | ||||||||
| Operaing current | <30mA | ||||||||
| Load current | <1 A | ||||||||
| Output mode | OC | ||||||||
| Pulse width | 50ms | ||||||||
| Input low voltage | <1.5V | ||||||||
| Input high voltage | 2V-24V | ||||||||
| Speed of tickets | 250mm/s | ||||||||
| Ticket Width | 29mm | ||||||||
| Ticket Length | 50mm~120mm | ||||||||
| Packing Details | Package | 20 PCS/ctn | |||||||
| G.W. | 13.20kg | ||||||||
| Carton Dimension | 540x275x270mm | ||||||||
| Delivry Details | Delivry time | 4-5 days | |||||||
| Payment term | T/T or Westem Union | ||||||||
| Suitable For | Available | kiosk, redemption machine, shop ,parking lot etc. | |||||||
Instructions
1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.
2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;
3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;
4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.
Application area
2013 latest redemption ticket dispenser widely used in kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .
Detailed pictures

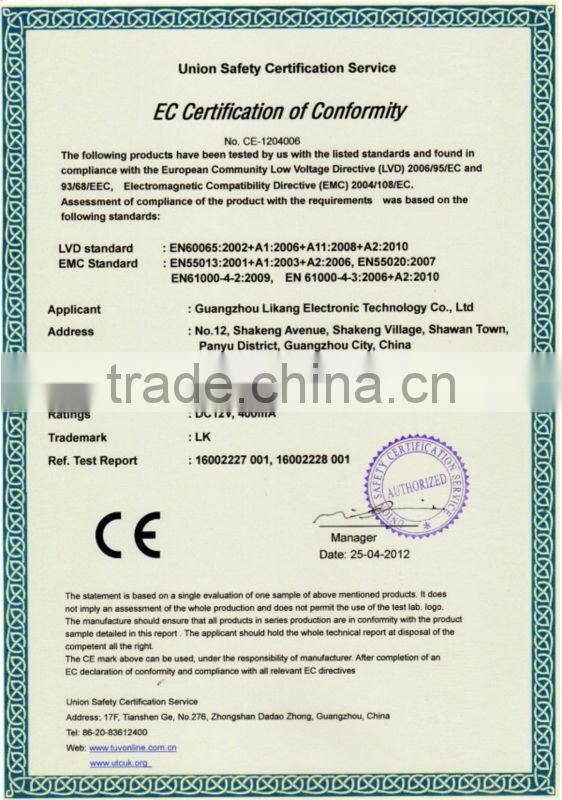

CE&ROHS certification
Shipping
Company
Exhibition
Likang is your best choose,why?
1: Quality guaranteed
Special supervision team to control quality. All the products will be inspected carefully before delivery
2: Competitive price
Compare with other manufacturers in this field , at the same quality , our price is competitive than others .
3: Payment terms
By T/T, 30% of the payment should be paid in advance and the rest should be paid before delivery.
4: Delivery time
1-5 days after payment
5: After service guarantee
Assure you the best services at all times.
6: Warranty
We offer a warranty period for one year.
7: Shipping
We will prepare favorable and professional shipping for you .
Thanks for your time.For more information,pls feel free to contact me.
