LK003A New Arrivals Candy Ticket Dispensing Machine .

LK003A  New arrivals candy ticket dispensing machine

1.Adapt to the machine,switch to SW1,to choose OV low level or +5ν high level as the effective  output voltage.

2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;

3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;

4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.

Function

1. Program control and counting precision

2. Speed ticket

3. Has a reverse function

4.Pervent idle

5.Cart ticket cleat-up

6.Prevent pulling tickets

7. Matissa and grand total score memory(when laying new tickets, the last remaining tickets will automatically outflow, then new tickets begin)

Product parameters

Voltage: DC+12V+10%

Ticket width: 29mm

Ticket length: 50mm~120mm

Package: 20 PCS/ctn

Dimension: 540*275*270

G. W: 12.20kg

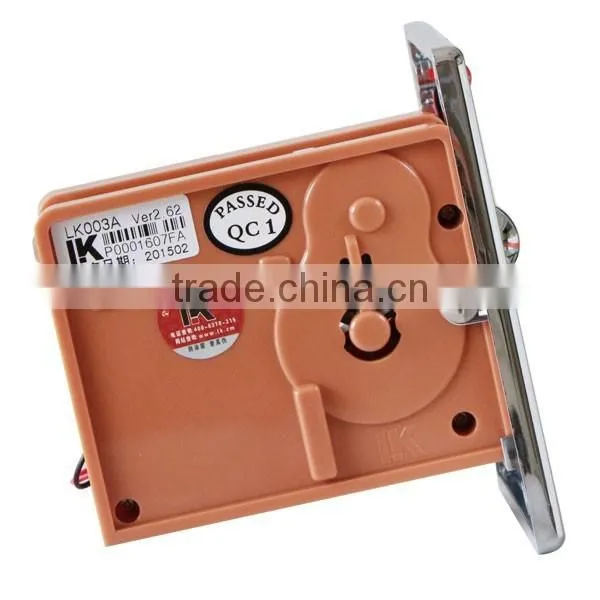

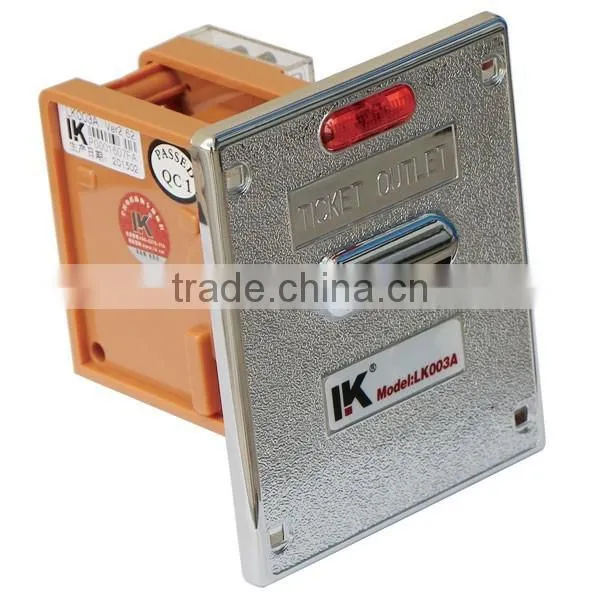

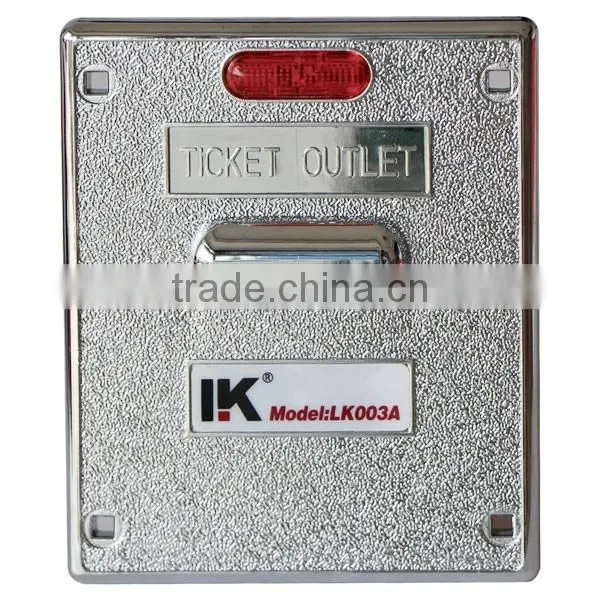

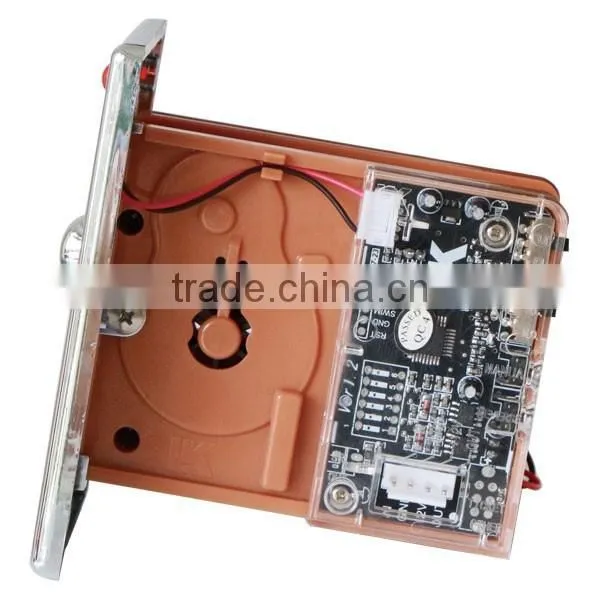

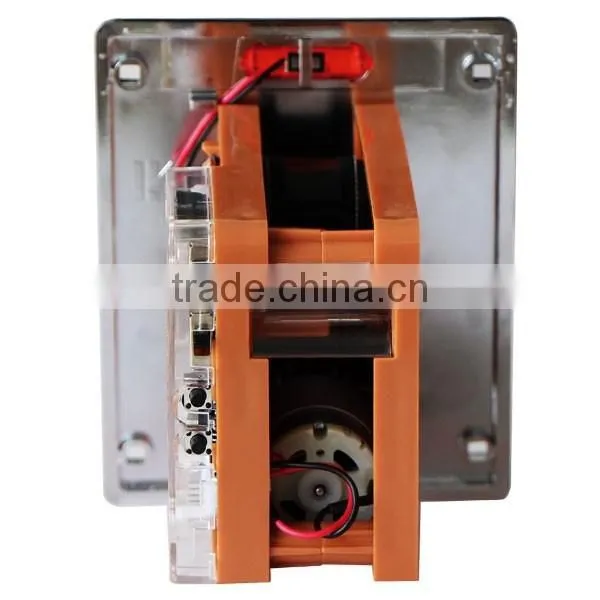

Detailed picture

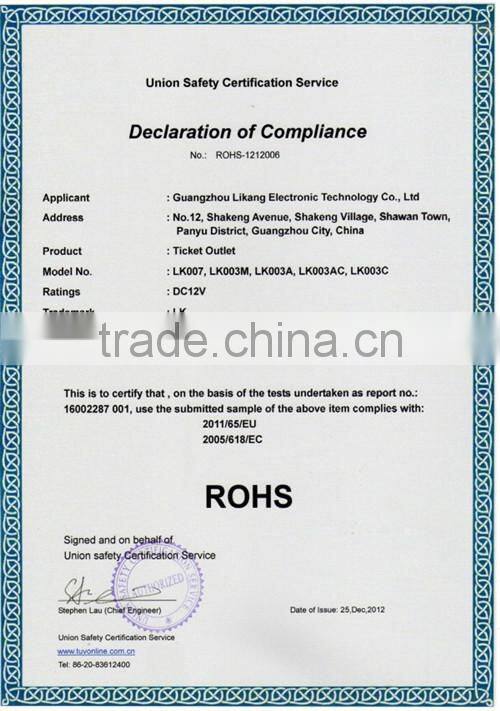

Rohs certification

About our factory

About the fair

Thanks for your interest in our products.Welcome to contatc us directly if anything need help.
