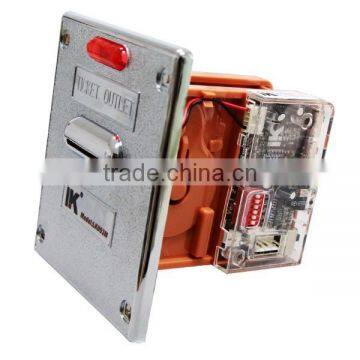

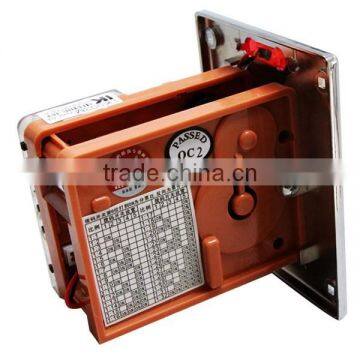

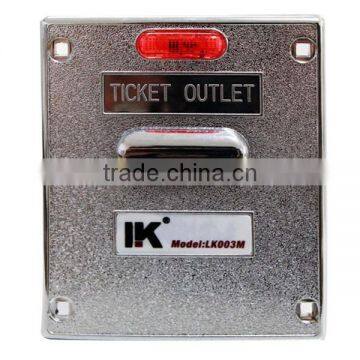

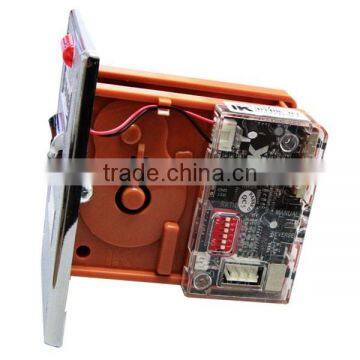

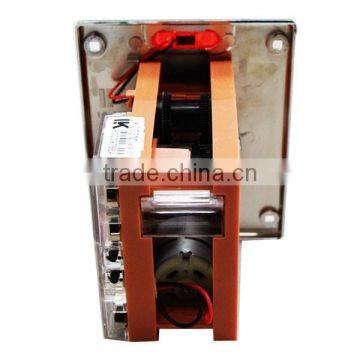

LK003M Bank to Collect the Tickets Machine

LK003M Bank to Collect the Tickets Machine thumbnail-1
LK003M Bank to Collect the Tickets Machine thumbnail-2
LK003M Bank to Collect the Tickets Machine thumbnail-3
LK003M Bank to Collect the Tickets Machine thumbnail-4
LK003M Bank to Collect the Tickets Machine thumbnail-5
LK003M Bank to Collect the Tickets Machine photo-1
LK003M Bank to Collect the Tickets Machine photo-2
LK003M Bank to Collect the Tickets Machine photo-3
LK003M Bank to Collect the Tickets Machine photo-4
LK003M Bank to Collect the Tickets Machine photo-5
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LK
Model Number:
LK003M
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Likang Electronic Technology Co., Ltd. Panyu Branch
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LK
Model Number LK003M
Place of Origin Guangdong, China

LK003M Bank to collect the tickets machine









1.Adapt to the machine,switch to SW1,to choose OV low level or +5V high level as the effective output voltage.



2.Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;



3.Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;



4.The fault light on the pannel will always power on if the ticket is not locket,otherwise the light will power off .It twinkles according to the ticket-out.







Function





1. Program control and counting precision



2. Speed ticket



3. Has a reverse function



4. Score / ticket set-up function



5.Pervent idle



6.Cart ticket cleat-up



7.Prevent pulling tickets



8.LED display







Product parameters





Operaing Voltage: DC+12V+10%



Ticket width: 29mm



Ticket length: 50mm~120mm



Operaing Current:<30mA



Load Current:<1 A



Output Mode:OC



Pulse width:50ms



Package: 20 PCS/ctn



Dimension: 540x275x270mm



G. W: 12.20kg





Application area





2013 latest redemption ticket dispenserwidely used in  kiosk, redemption machine, shop ,parking lot , amusement park ,amusement machine etc .







Detailed images





 LK003M Bank to collect the tickets machineLK003M Bank to collect the tickets machineLK003M Bank to collect the tickets machine









ROHS certification





LK003M Bank to collect the tickets machine







Package











Shipping





LK003M Bank to collect the tickets machine











Thanks for your time.For more information,welcome to contact me,Juliet will do my best to support you.
