LK003AC Ticket Dispenser Used Amusement Boxing Machine

Guangzhou Likang Electronic Technology Co., Ltd. Panyu Branch
LK003AC Ticket Dispenser Used Amusement Boxing Machine thumbnail-1
LK003AC Ticket Dispenser Used Amusement Boxing Machine thumbnail-2
LK003AC Ticket Dispenser Used Amusement Boxing Machine photo-1
LK003AC Ticket Dispenser Used Amusement Boxing Machine photo-2
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LK, LK
Model Number:
003AC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LK, LK
Model Number 003AC
Type Other, Coin Pusher, game machine parts



LK003AC Ticket dispenser used amusement boxing machine

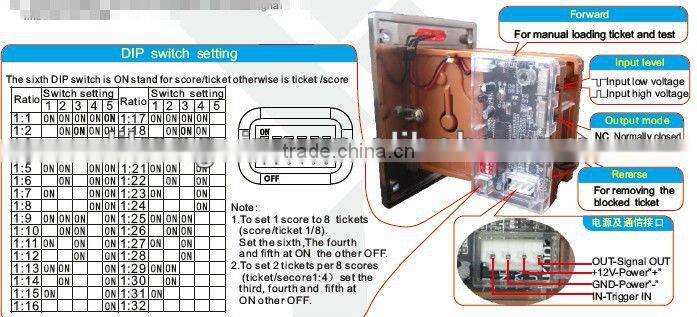

Instructions for use



1.With the motherboart needs to switch the output normally open/normally
closed switch,the general category of computer panels convent light to use
normally closed files(NC),other PC boards nor y open file (NO).




2.Score under Schedule and select the approprate proportion of the ticket.
(Factory set ratio of 1:1)




3 .The lottery ticket into the guide slote,the motor will start automatically
installed tickets.(Hold down the forward button can also be manually installed tickets)




4 .Ticket installed, connect the power lines and signal
lines can be used.









LK003AC Ticket dispenser used amusement boxing machine

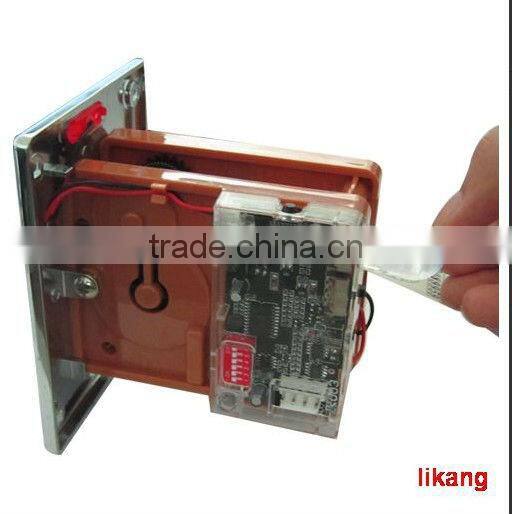

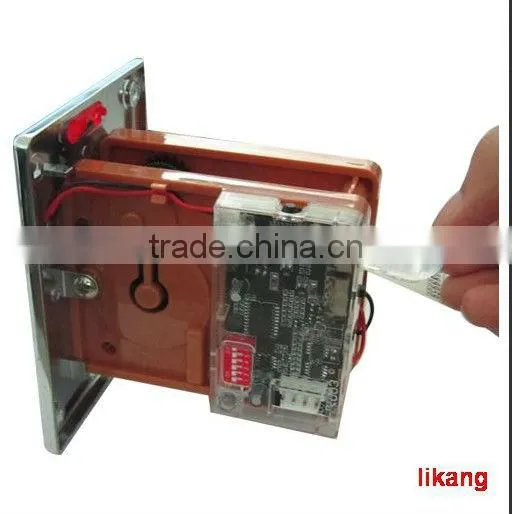

Appearance design



LK003AC Ticket dispenser used amusement boxing machineLK003AC Ticket dispenser used amusement boxing machine









Product parameter





Operating voltage

DC12V±10%

Operating current

<30mA

Load current

<1A

Output mode

0C.

Pulse width

50ms

Output current

<1A

Input low voltage

<1.5V

Input high voltage

2V-24V

Speed of tickets

250mm/s(about 5PCS)

package

20PCS/SET









Notice:press down the upper guided board,then pull it out





LK003AC Ticket dispenser used amusement boxing machine

Workshop of our company



LK003AC Ticket dispenser used amusement boxing machine



Fairs pictures



 LK003AC Ticket dispenser used amusement boxing machine







More products of  our company



LK003AC Ticket dispenser used amusement boxing machine





Thank you for your time to skim our products, If you are interest, Please feel free to contact me .
