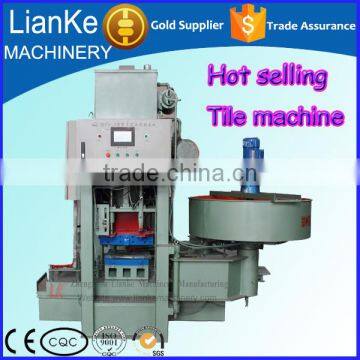

Construction Companies Cement Roof Tile Production Machine/Tile Forming Plant/roof tile making machine for sale in africa
The full-automatic concrete roof tile making machine is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment by far.
1) Main Technical Information
Main technical parameters of the full-automatic concrete roof tile making machine are as follows:
| # | Main technical parameters | MYW-8 roof tile machine | MYW-10 roof tile machine |
| 1 | Voltage | 380 V | 380 V |
| 2 | Molding Cycle | 8-10 seconds / piece | 12-15 seconds / piece |
| 3 | Molding Pressure | 1,800 Kilo Newton | 12,500 Kilo Newton |
| 4 | Output for Roof Tiles Per 8 Hours | 3000-3600 pieces | 1200-1500 pieces |
| 5 | Normal Roof Tile Size 1 | 420 x 330 x 15 mm | 940 x 640 x 15 mm |
| 6 | Normal Roof Tile Size 2 | 424 x 337 x 15 mm | 1230 x 640 x 20 mm |
| 7 | Diameter of the Oil Cylinder | 320 mm | 650 mm |
| 8 | Power of the Main Machine | 7.5 KW | 12 KW |
| 9 | Weight of the Main Machine | 5 Ton | 12 Ton |
| 10 | Dimension of the Main Machine | 2600 x 1900 x 2500 mm | 4800 x 1900 x 3000 mm |
2) Main Components
The full-automatic concrete roof tile making machine includes the following parts:
| # | MYW-8 Components | MYW-10 Components | ||
| 1 | one bucket elevator | one bucket elevator | ||
| 2 | one LK-350 vertical mixer | one LK-500 wheel-rotating mixer | ||
| 3 | one quantitative feeding machine | one quantitative feeding machine | ||
| 4 | one MYW-8 tile press machine | one MYW-10 tile press machine | ||
| 5 | one tile mould | one tile mould | ||
| 6 | one hydraulic pallet truck | 1000 pieces of steel roof tile pallets | ||
| 7 | one manual ridge/edge tile making machine | n/a | ||
| 8 | 2000 pieces of steel roof tile pallets | n/a | ||
| 9 | 5 pieces of plastic ridge tile moulds and 5 pieces of plastic edge tile moulds | n/a | ||

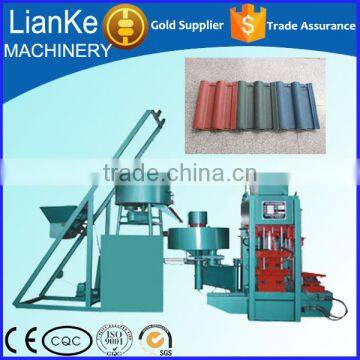

Photo of the whole set concrete roof tile making machine:
Mix water, raw material such as cement, coal ash or stone powder and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete roof tile making machine, and then under the high pressure of a hydraulic cylinder and a tile mould, semifinished concrete roof tiles that become concrete roof tiles after maintenance and painting are produced. If different moulds such as terrazzo moulds are applied, terrazzos can be obtained.
The working flow of the cement roof tile making machine is as follows:
Photo of roof tiles placed on terrazzo tile floor:
A) Features
Features of the new type full-automatic concrete tile making machine:
1) Multi-purposes via moulds changing
2) Easy to operate, environment-protective
3) Extrusion molding by computer numerical control (CNC)
4) Taiwan Delta PLC <Programmable Logic Controller> and HMI <Human Machine Interface> system
B) Advantages
Advantages of the tiles produced by the new type full-automatic concrete tile making machine:
1) Easy to construct
2) Good heat insulation
3) Strong wind resistance
4) Unique water-proof structure
5) Diversified shapes and various colors
6) Freezing-thawing resisting and weathering-resistant
Workes and engineers at Lianke Machinery always pay much attention on details when manufacturing the concrete tile making machines while the details usually decide the smooth running:
A) Our Services
We can provide more than the following services:
1) Design and help adjust the production flow and equipment layout for free.
2) Supply the foundation drawing of the production line for free.
The workshop layout diagram of the MYW-8 full-automatic concrete tile making machine is as follows:
Note:
A. Drain: In actual scene, a drain along side the main machine is required.
This is a sectional drawing of the production line, so the drain is drawn on one side for your easy understanding.
B. Boiler plant: The boiler plant is optional in this production line and is not included in our quotation for
this production line.
B) Quality Guarantee
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long
maintenance for the machine.
We are customer-oriented and quality-focused.
We have established a long-term business relationship with lots of international freight forwarding companies to provide you with fast and safe shipping.
