Home > Products > Concrete Roof Tile Machine > Ceiling Tiles Machine/Tilemachine
Ceiling Tiles Machine/Tilemachine
- 30 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | Lianke | Model Number: | MYW-8 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ceiling Tiles Machine/Tilemachine
The full-automatic concrete roof tile making machine is the most advanced innovative, cost-effective and eco-friendly professional tile forming equipment by far.
1) Main Technical Information
Main technical parameters of the full-automatic concrete roof tile making machine are as follows:
# | Main technical parameters | MYW-8 roof tile machine | MYW-10 roof tile machine |
1 | Voltage | 380 V | 380 V |
2 | Molding Cycle | 8-10 seconds / piece | 12-15 seconds / piece |
3 | Molding Pressure | 1,800 Kilo Newton | 12,500 Kilo Newton |
4 | Output for Roof Tiles Per 8 Hours | 3000-3600 pieces | 1200-1500 pieces |
5 | Normal Roof Tile Size 1 | 420 x 330 x 15 mm | 940 x 640 x 15 mm |
6 | Normal Roof Tile Size 2 | 424 x 337 x 15 mm | 1230 x 640 x 20 mm |
7 | Diameter of the Oil Cylinder | 320 mm | 650 mm |
8 | Power of the Main Machine | 7.5 KW | 12 KW |
9 | Weight of the Main Machine | 5 Ton | 12 Ton |
10 | Dimension of the Main Machine | 2600 x 1900 x 2500 mm | 4800 x 1900 x 3000 mm |
2) Main Components
The full-automatic concrete roof tile making machine includes the following parts:
# | MYW-8 Components | MYW-10 Components | ||
1 | one bucket elevator | one bucket elevator | ||
2 | one LK-350 vertical mixer | one LK-500 wheel-rotating mixer | ||
3 | one quantitative feeding machine | one quantitative feeding machine | ||
4 | one MYW-8 tile press machine | one MYW-10 tile press machine | ||
5 | one tile mould | one tile mould | ||
6 | one hydraulic pallet truck | 1000 pieces of steel roof tile pallets | ||
7 | one manual ridge/edge tile making machine | n/a | ||
8 | 2000 pieces of steel roof tile pallets | n/a | ||
9 | 5 pieces of plastic ridge tile moulds and 5 pieces of plastic edge tile moulds | n/a |

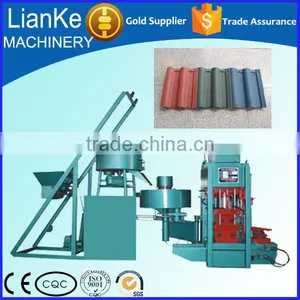

Photo of the whole set concrete roof tile making machine:
Mix water, raw material such as cement, coal ash or stone powder and sand up in proportion and feed the mixture evenly to the main machine of the CNC concrete roof tile making machine, and then under the high pressure of a hydraulic cylinder and a tile mould, semifinished concrete roof tiles that become concrete roof tiles after maintenance and painting are produced. If different moulds such as terrazzo moulds are applied, terrazzos can be obtained.
The working flow of the cement roof tile making machine is as follows:
Photo of roof tiles placed on terrazzo tile floor:
Scenes of engineers and workers busy manufacturing components of the machines:
We can provide more than the following services:
1) According to the actual site, design and help adjust the production flow and equipment layout for free.
2) Supply the foundation drawing of the production line for free.
3) We shall send at least one technician to the site to guide the installation and commissioning, and offer training service.
The workshop layout diagram of the MYW-10 full-automatic concrete tile forming machine is as follows:
B) Quality Guarantee
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long
maintenance for the machine.
We are customer-oriented and quality-focused.
We have established a long-term business relationship with lots of international freight forwarding companies to provide you with fast and safe shipping.
Founded in 1985 as a government-owned enterprise, and then regrouped and re-registered in 2008 as a private company, Zhengzhou Lianke Machinery Manufacture Co.,Ltd is a Chinese specialized manufacturing enterprise incorporating the research, development, production and sale of mainly building material making
machinery, and mining machinery such as cement roof tile machine, terrazzo
making machine, spacer block machine, paving block machine, brick machine, briquette coal machine, ball
press machine, mining processing equipment, crusher, dryer, rod machine, granulator, carbonization stove,
wood charcoal briquette machine,etc.
Ceritificates
Gain many certificates and honors from a lot of governmetal departments.
