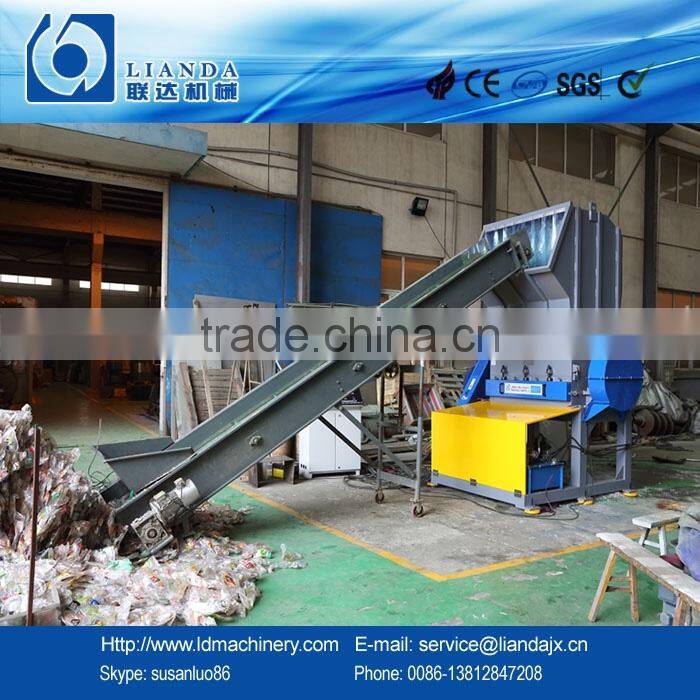

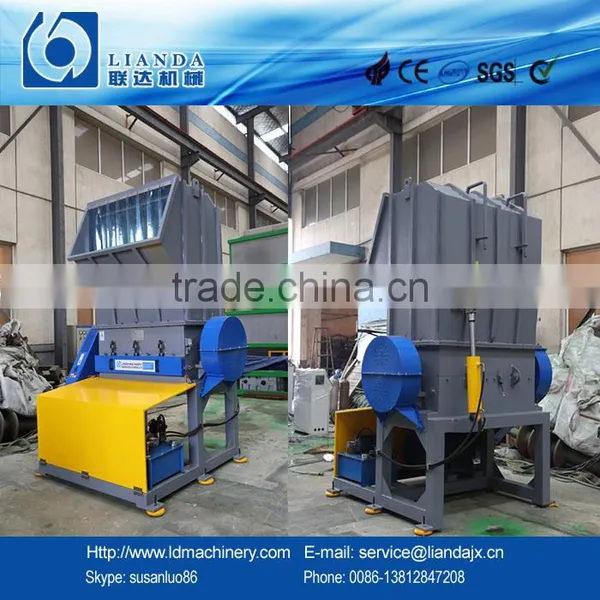

Plastic bottle shredder is specially designed for crushing various plastic material (PET/PE/PP/PVC) bottles, such as coca cola bottles, purified water bottles, spring water bottles, milk bottles and so on. The blade of plastic bottle crusher using claw structure which with strong adhesion for hollow thin-wall products and sheet.
Working principle: Shredding machine completes the whole material broken by rotate blades of the axis and fixed blades on the equipment cut each other, as well rely on inertial impact. During crusher working, motor drive spindle at high speed, the material fed into the crusher evenly and broken by blade impact and shear tear. Crushed material flow down with water. When the size meet the screen requirement, they will come out of the machine.
Our advantages:

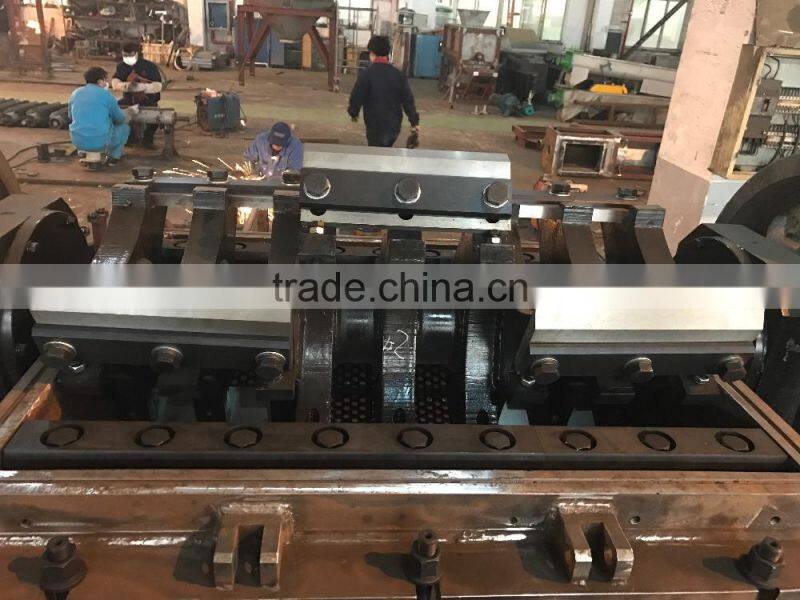

1. Blade material is 9CrSi，SKD-11，D2 optional and through many Wear-resistant treatment.
2. Motor drive control hopper. It can be opened and closed easily to allow swift changing of blades.
3. Blades can be changed quickly and easily to minimize down time.
Specifications:

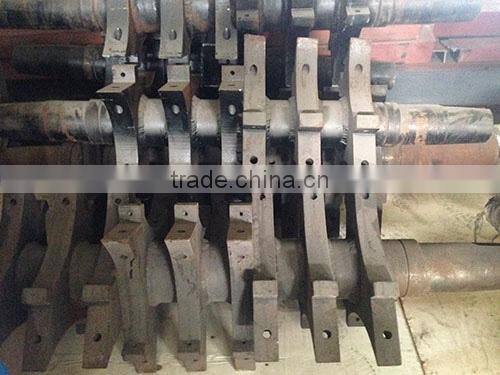

Claw structure design of rotor is quenching treatment. It with long working life.
Blade is easy to be changed, with high quality.

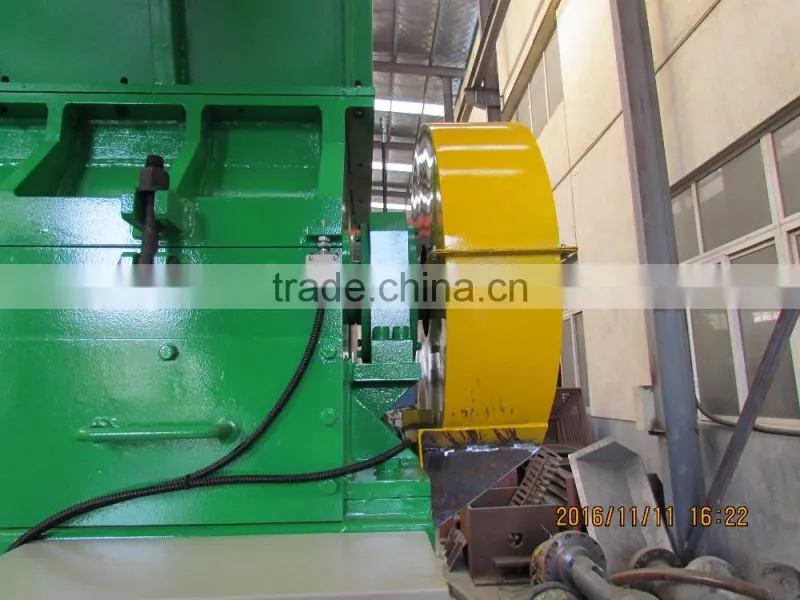

External bearing seat. Effectively avoid the casing of the crushing of material into the bearing, improve the bearing life.
Pre-sales Service
- Your inquire will be replied in 12hours
- View our factory and customer's factory in China
- Machine test support
After-sales Service
- Training installation method and usage
- Engineers available to service machinery overseas
- After one year guarantee, we provide spare part on cost price and technician's visiting maintenance service
We supply below necessary documents
- Machine layout
- Electricity diagram
- Machine certificate
- General manual book/maintenance book
Zhangjiagang Lianda Machinery Co.,Ltd was founded in 1998. For over 18 years of experience in plastic recycling machine, we have dedicate to putting the innovations into practice to satisfy the needs of customer. Lianda Machinery specialized in plastic shredder, PET bottle/PE PP film washing plant design and planning, with CE/ISO9001/TUV certificate. Our equipment have exported to many different countries, such as Japan, Thailand, Korea, Mexico, Russia, Poland, Iran, Saudi Arabia and so on.
We import technology of PET infrared crystal dryer from Germany in 2008 and Lianda Machinery is the only manufacturer to offer this groundbreaking technology to this plastic processors in China.
Our workshop and certificate
1. Do you have engineer service to the customer factory?
Yes, engineer service is allowed.
2. How can I get the after service?
In warranty period, we will send you the spare parts for free if the problems caused by us. If the problem is caused by wrong operation, we supply the spare part in cost price.
3. How long is the warranty period?
One year since date on bill of loading.
4. Do you have inspection procedure for the machine?
All equipment is 100% self inspection before delivery.
