Single shaft shredder
Single shaft shredder can be used for a wide verity of applications, such as shredding lump plastic material, PE PP head material, foam, films, woven bags, ton bags, boards, wood, waste paper and so on. The output is 300kg/h - 2000kg/h.
Single shaft shredder working principle: Belt conveyor send raw material into crushing room which is made up of blade rotor, rotate blades, fixed blades and screen. Raw material is pushed nearby blade and through shredding, pushing, cutting process, final material which size less than mesh hole diameter will drop out from machine. The size bigger than mesh hole diameter will shred in crushing room again till less mesh hole diameter.
According to different physical property of material, the shaft design is different. Such as plastic lump, PE PP head material, it’s suitable for horizontal shaft design and will not block during material feeding. Because films, ton bags material can’t move into shredding room smoothly, we suggest incline shaft design to ensure material feeding continuously.
Applications of single shaft shredder:
- To process plastic material: thick wall diameter plastic pipes, plastic film, waste injection products, plastic bottles, bags, and so on.
- strong crushing shredders
- contrarotation with the structure of close-lined rotary knives in double direction.
Specifications:
Product name |
Single shaft shredder |
|
Electric consumption(KW): |
Capacity |
Motor power |
300kg/h |
18.5kw |
|
500kg/h |
30kw |
|
800kg/h |
45kw |
|
1000kg/h |
55kw |
|
1200kg/h |
75kw |
|
Working voltage: |
380V, 3PHASE, 50HZ(based on customer’s requirements) |
|
Usage material |
Plastic pipe, film, bags and so on |
|
Competitive Advantage of shredder machine for plastic :
1. low noise, low consuming of electricity
2. special design for kinetic knife to prolong its usage time
3. We have specialized in this field for more than 15years, with high quality machinery and big capacity, low power consumption, and easy to maintain
Key words:
- Single shaft shredder, single plastic shredder , plastic shredder/crusher
- shredder,
- plastic shredder, crusher / shredder, waste plastic film shredder
- crusher,
- plastic crusher, shredder machine for plastic bags plastic pet bottle shredder plastic recycling shredder machine,
- shredder supplier plastic bottle shredder shredder for sale waste shredder pet bottle shredder
Our service:
(1) Your inquiry related to our products or prices will be replied in 24hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.

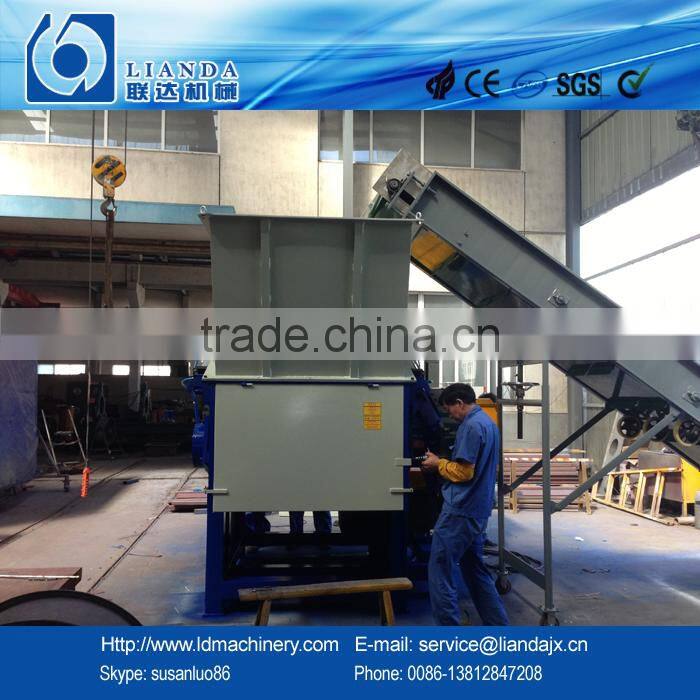

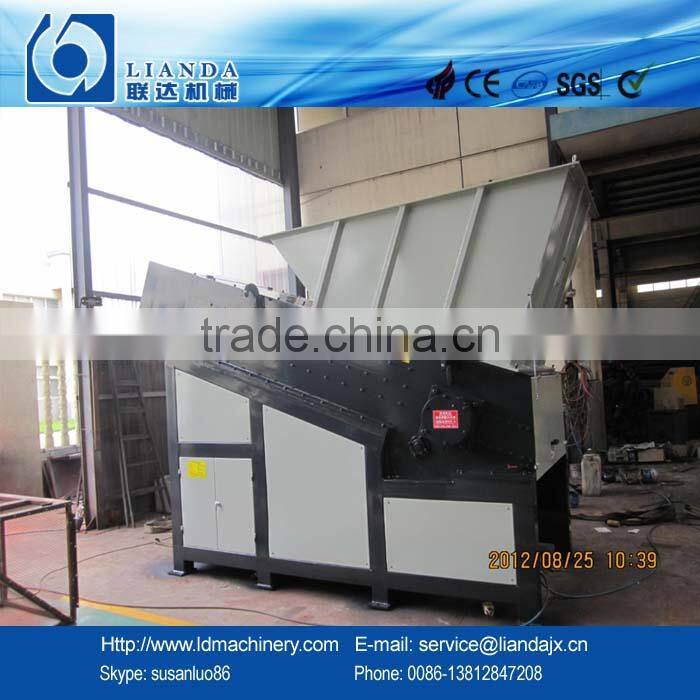

Picture for reference:
