Plastic single shaft shredder machine with CE certificate
Descrition:
Product description: single shaft shredder can be used for a wide verity of applications, such as shredding lump plastic material, PE PP head material, foam, films, woven bags, ton bags, boards, wood, waste paper and so on. The output is 300kg/h - 2000kg/h.
Single shaft shredder working principle: Belt conveyor send raw material into crushing room which is made up of blade rotor, rotate blades, fixed blades and screen. Raw material is pushed nearby blade and through shredding, pushing, cutting process, final material which size less than mesh hole diameter will drop out from machine. The size bigger than mesh hole diameter will shred in crushing room again till less mesh hole diameter.
According to different physical property of material, the shaft design is different. Such as plastic lump, PE PP head material, it’s suitable for horizontal shaft design and will not block during material feeding. Because films, ton bags material can’t move into shredding room smoothly, we suggest incline shaft design to ensure material feeding continuously.
Advantages of single shaft shredder:
1.Low speed, high torque gear drive
2.Knives are concave ground square design, the cutters can be turned after a side is worn out. It with high quality output, save time.
3.Knives material is SKD-11, wear-resisting and durable.
4.PLC control and equip hydraulic pusher system.
Applications:
This machine is suitable to process many kinds of plastic material, such as thick wall diameter plastic pipes, plastic film, waste injection products, plastic bottles, woven bags, Drums, Electronic Waste, Paper, Wood, WEEE derived plastics, Plastic containers, ( IBCs HMHD blue drums) and so on.
Specifications:
Product name |
Single shaft shredder |
|
Electric consumption(KW): |
Capacity |
Motor power |
300kg/h |
18.5kw |
|
500kg/h |
30kw |
|
800kg/h |
45kw |
|
1000kg/h |
55kw |
|
1200kg/h |
75kw |
|
Working voltage: |
380V, 3PHASE, 50HZ(based on customer’s requirements) |
|
Our service:
(1) Your inquiry related to our products or prices will be replied in 24hours.
(2) Our engineer will make machine placement chart according to client’s workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.
Kindly to tell us raw material and capacity, we will send suitable quotation according to your requirement.
Picture for reference:

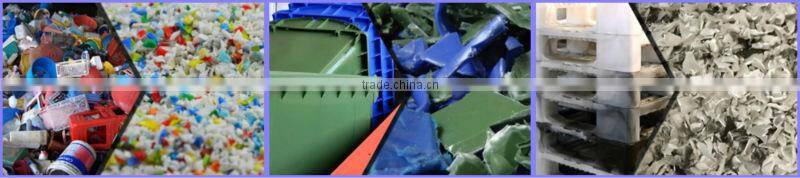

It is suitable for hard plastic material, such as plastic pipe, drums, barrel and so on. As picture:
------
------

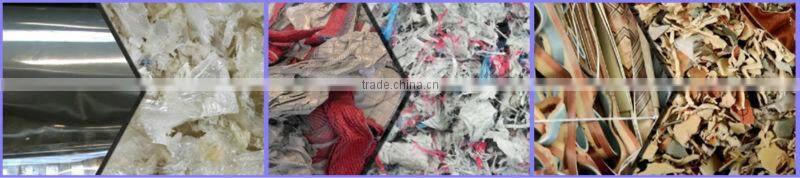

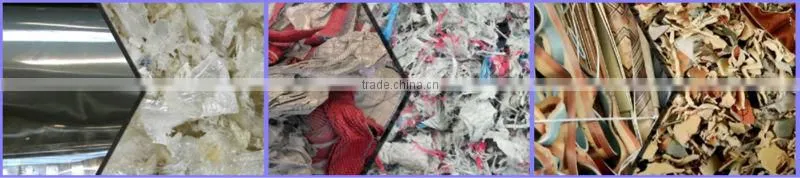

It suitable for follow material:
