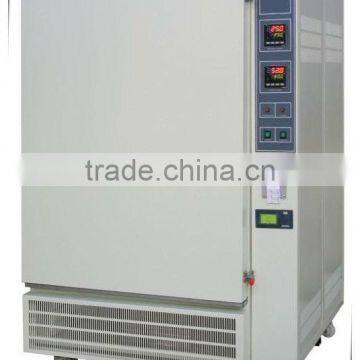

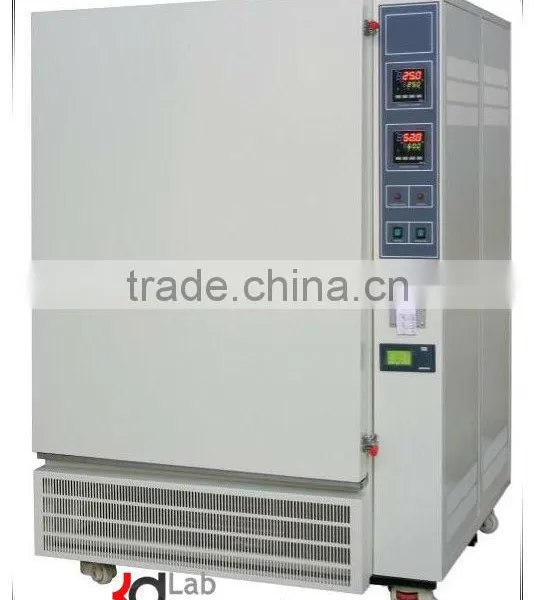

(500L 1000L)GMP Stability Chambers

Stability Chambers(GMP)

Stability Chambers (GMP)

Model

Kingdak-120GS

Kingdak-250GS

Kingdak-500GS

Kingdak-1000GS

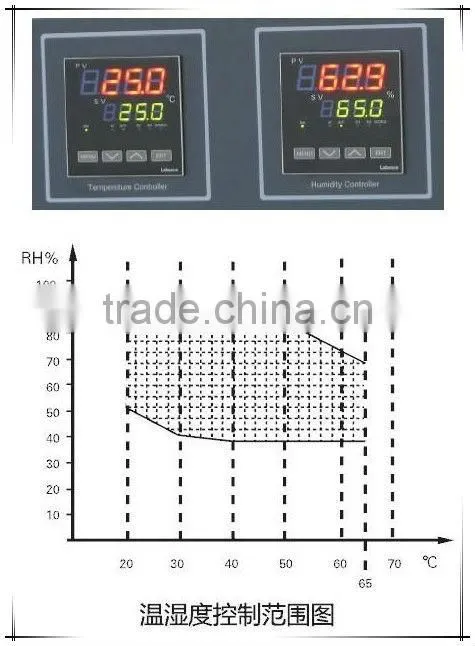

Temperature Range

0~65°C

10~65°C

Accuracy

±0.5°C

±0.5°C

Deviation

±1.5°C

±1.5°C

Humidity Range

40~95%RH

40~95%RH

Accuracy

±3%RH

±3%RH

Deviation

±4%RH

±4%RH

Control manner

Temperature and humidity balance Control

Compressor

Original Imported industry compressor ( European Union)

Humidity Sensor

Original Imported humidity sensor ( European Union)

Controller

Original Imported Digital Display Controller( JAPAN)

Data Recorder

Optional

Test point

40°C 75%RH,25°C 60%RH

Temperature alarm

High and low boundary deviation alarm for temperature(Optional)

Humidity alarm

High and low boundary deviation alarm for humidity(Optional)

Dual protections

Independent overheat protection warning system

Operating temp.

+5~35°C

Internal material

Mirror surface Stainless steel SUS304

External material

Steel powder coated

Water tank

External Water Tank

Power source

AC 220V±10% 50HZ

Safety device

Compressor and blower overheat protection system, Over temperature protection, overpressure and overload protection for compressor, Water scarcity protection

Max Power(kW)

1.5

2.5

3.0

4.0

Capacity(L)

150

250

500

1000

Interior dimensions
(mm)W×D×H

600×405×620

680×500×730

800×700×900

900×920×1200

External dimensions
(mm)W×D×H

760×830×1480

840×870×1550

1080×1180×1790

1300×1380×1830

Trays (standard)

3

3

4

4

Optional

1,Data record:U disk(with microprinter) or Recorder with paper(with chart drive)
2,Dual stage refrigeration system
3,Alarm: Temperature & Humidity deviation alarm
4,3Q validation documents
5,Calibration certificate

Remark

Please confirm whether the external dimension of this model chamber can be smooth for elevator,corridor or gate, whether there is enough space for it in lab.
