KDN Series Infrared Digestive Furnace

Name: KDN Series Infrared Digestive Furnace
Brand: KINGDAK
SKU: 141460498
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KINGDAK

Model Number:

KDN series

Shanghai Kingdak Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KINGDAK

Model Number KDN series

Power Electronic

Usage Other, Digestive Furnace

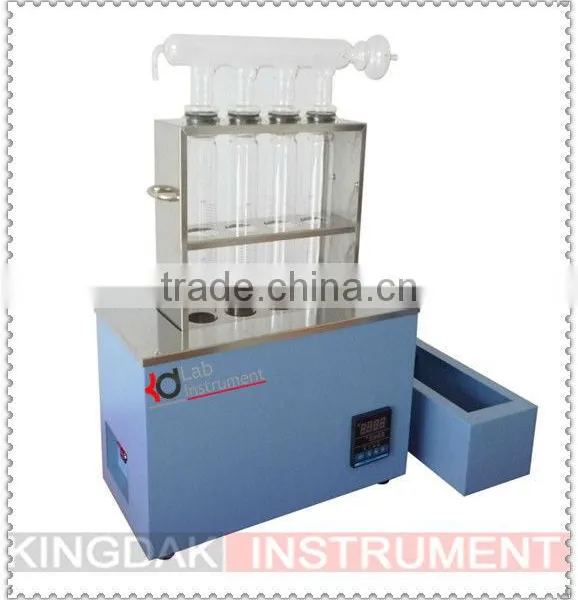

KDN series Infrared digestive furnace

Characteristics:

Type C digestive furnace adopts quartz infrared heating pipe, the radiation is primary and the conduction is auxiliary; short heating time, high efficiency
Type D digestive furnace adopts infrared heating and graphite conduction. Short heating time, small average temperature difference inside furnace, good consistency of sample digestive effect, high heat transfer efficiency
Machine box adopts specially made plastic spray steel; working area adopts stainless steel materials, has good corrosion resistance.
Double-shell design, double thermal insulation effect with air thermal insulation layer and aluminum silicate thermal insulation layer
Has multiple protection: over pressure, over current, overheating
1. Small and beautiful, easy to operate, user-friendly.

Technical parameters:

Temperature controlling mode: digital

Temperature control range: room temperature-600°C

Temperature control accuracy: ±1°C

Heating speed: 30°C/min

Measurement range: 0.1mgN-200mgN (mg nitrogen)

Measurement quantity: measure several varieties simultaneously at a time

(4 holes, 8 holes, 12 holes, 20holes)

Digest time: 60-90 min/batch (according to sample quantity)

Digestive pipe capacity: 300ml

Temperature control accuracy: ±1°C

Power: 1000W/1500W/2000W/2500W

Model difference:

Model	Difference
KDN-04C	With 4 holes digital digest furnace
KDN-04D	With 4 holes digital graphite digest furnace
KDN-08C	With 8 holes digital digest furnace
KDN-08D	With 8 holes digital graphite digest furnace
KDN-12C	With 12 holes digital digest furnace
KDN-20C	With 20 holes digital digest furnace
