Home > Instruments & Meters > Test Instrument > Test Machine > KDN Series Semi-automatic Kjeldahl Nitrogen Analyzer

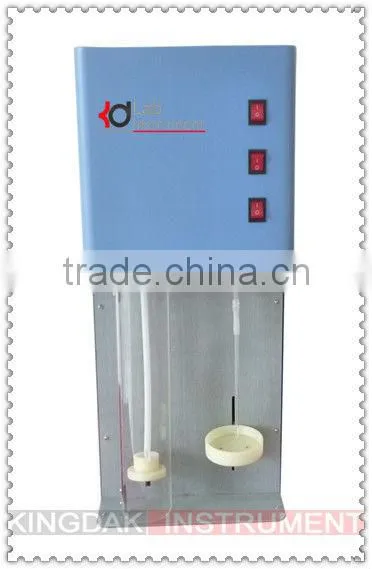

KDN Series Semi-automatic Kjeldahl Nitrogen Analyzer

Shanghai Kingdak Industries Co., Ltd.
KDN Series Semi-automatic Kjeldahl Nitrogen Analyzer thumbnail-1
KDN Series Semi-automatic Kjeldahl Nitrogen Analyzer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KINGDAK
Model Number:
KDN series
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name KINGDAK
Model Number KDN series
Power Electronic
Usage Other, nitrogen analyzer

KDN series Semi-automatic Kjeldahl Nitrogen Analyzer



Characteristics:

1. Adopt microcomputer controlling process

2. Automatically control distills, add water, control water level and cut off water supply

3. Various security protections: digestive system security device, steam generator water shortage alarm, water level detection fault alarm

4. Instrument shell adopts specially made plastic spray steel; working area adopts ABS anticorrosive board. Avoid chemical reagent corrosion and mechanical surface damage, acid proof and alkali proof.

5. Once detected fault, controlling system will power off automatically

6. Adopt tap water source, wide adaptability, and requirement for test is low.



Technical parameters:

Measuring varieties: grain, feed, food, dairy products, drink, soil, medicine, precipitate, chemicals and so on

Working mode: semi-automatic

Water-in mode: tap water and distilled water

Sample quantity: solid: 0.20g-2.00g,

               Semisolid: 2.00g-5.00g

               Liquid: 10.00ml-25.00ml

Measuring range: 0.1mgN-200mgN (mg nitrogen)

Recovery rate: ≥99% (relative error, including digestive process)

Distillation speed: 5-15 min/sample (according to sample amount)

Cooling water consumption: 3L/min

Repetition rate: relative standard deviation <±1%

Power: AV 220V/50Hz, 1000W

Water supply: water pressure >1.5MPa

             Water temperature<20°C

Shape size:380*320*670mm

Weight: 20Kg



Model difference

Model

KDN-04C

KDN-04D

KDN-08C

KDN-08D

KDN-12C

KDN-20C

function

difference

Tap water source; with 4 holes digital digest furnace

Tap water source; with 4 holes digital graphite digest furnace

Tap water source;

with 8 holes digital digest furnace

Tap water source;

with 8 holes digital graphite digest furnace

Tap water source;

with 12 holes digital digest furnace

Tap water source; with 20 holes digital digest furnace



KDN series semi-automatic kjeldahl nitrogen analyzerKDN series semi-automatic kjeldahl nitrogen analyzerKDN series semi-automatic kjeldahl nitrogen analyzer

KDN series semi-automatic kjeldahl nitrogen analyzerKDN series semi-automatic kjeldahl nitrogen analyzerKDN series semi-automatic kjeldahl nitrogen analyzer
