Specifications
Liquid nitrogen containers are high-strength aluminum alloy structure, light emptyweight.YDH-3/YDH-8-80 Liquid Nitrogen Dry Shipper
Introduction:
Liquid nitrogen absorbent is designed in the vessel of this series of containers, which absorbs and stores liquid nitrogen inside. Even if the container is turned over during transportation, liquid nitrogen never spills out. With lower static evaporation loss, these containers are especially suitable for air transportation.
Main Features:
High-strength aluminum alloy structure, light empty weight;
Optional locking cover to protect stored biological samples;
Protective jacket to prevent collision, portable;
Two-year vacuum warranty.
Specification:
| Model | Unit | YDH-3 | YDH-8-80 | |
| Capacity | L | 3.5 | 8 | |
| Empty Weight | kg | 5.2 | 8.9 | |
| Neck Diameter | mm | 50 | 80 | |
| Outer Diameter | mm | 224 | 303 | |
| Height | mm | 505 | 590 | |
| Static Evaporation Loss | L/d | 0.14 | 0.22 | |
| Static Hold Time | d | 25 | 36 | |
| Canister Outer Diameter | mm | 38 | 70 | |
| Canister Height | mm | 276 | 276 | |
| Numbers of Canisters | ea | 1 | 1 | |
| Straw Holding Capacity | 0.5ml | ea | 214 | 820 |
| 0.25ml | ea | 472 | 1780 | |
| Numbers of Canes | ea | 4 | 15 | |
| Numbers of Vials | ea | 20 | 75 | |
| Optional Locking Cover | ea | √ | √ | |
| Remarks:"YDH" is the abbreviation of Liquid Nitrogen Dry Shipper" in Chinese. | ||||

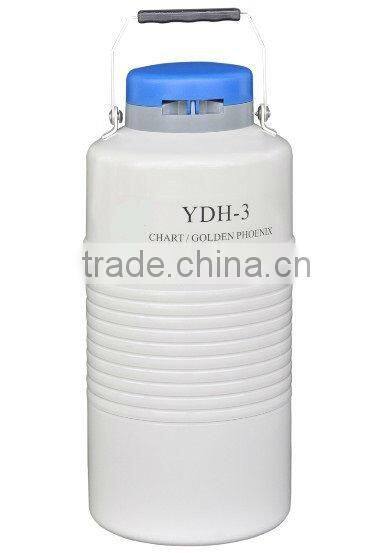

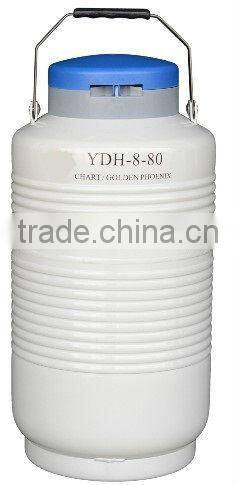

YDH-3 YDH-8-80
