YDS Series Liquid Nitrogen Tank

YDS Series Liquid Nitrogen Tank thumbnail-1
YDS Series Liquid Nitrogen Tank photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
35.5L-47L
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Kingdak Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity 35.5L-47L
Place of Origin Shanghai, China
Brand Name KINGDAK
Model Number YDS-35,YDS-35-80,YDS-35-125,YDS-47-127

Specifications

Liquid nitrogen containers are high-strength aluminum alloy structure, light emptyweight.

Dewar vessle Liquid Nitrogen Biological Container for Storage



Introduction:




These large capacity containers feature longer hold time and are ideal for customers with high storage volume under static environment.


Main Features:


High-strength aluminum alloy structure;
Multi-layer thermal isolation design;
Optional locking cover to protect stored biological samples;
Protective jacket to prevent collision;

Two-year vacuum warranty



Specification:

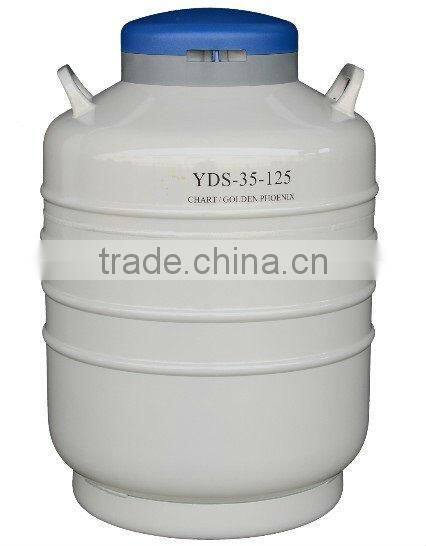

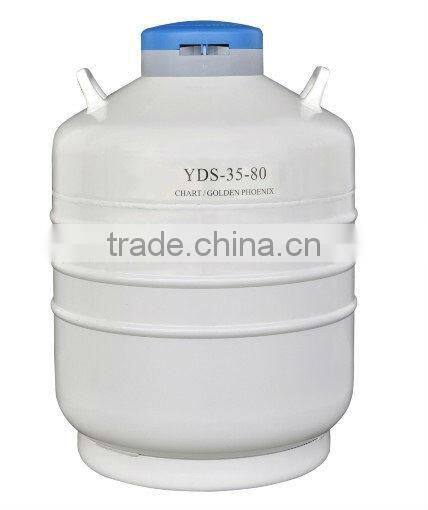

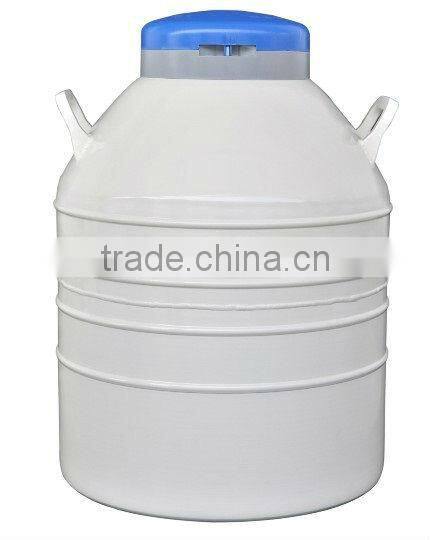

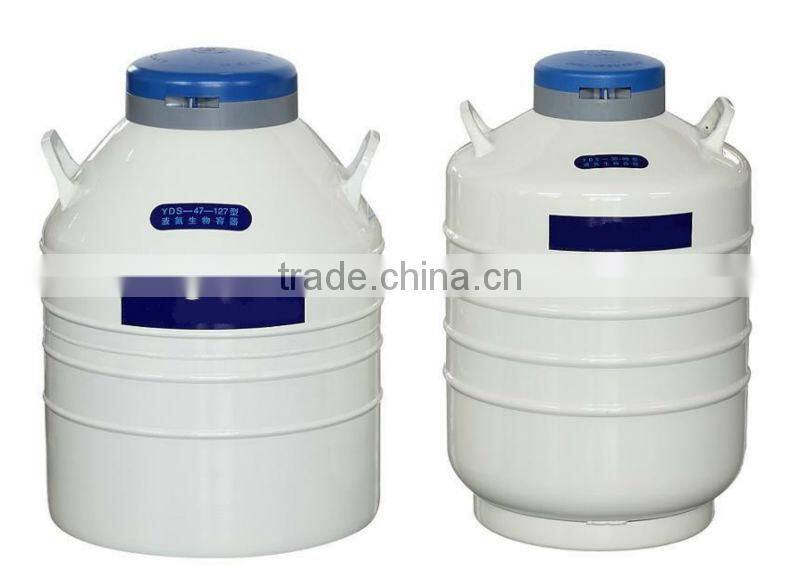

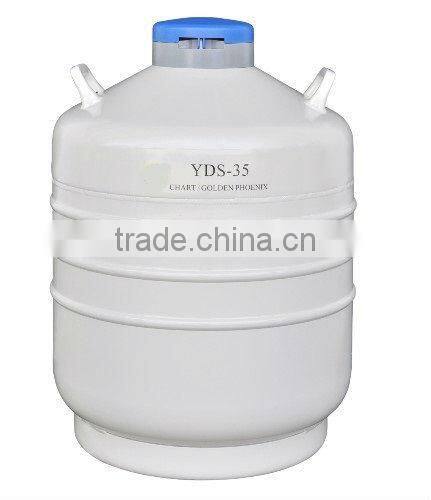

Model Unit YDS-35 YDS-35-80 YDS-35-125 YDS-47-127
Capacity L 35.5 35.5 35.5 47
Empty Weight kg 13.8 14.1 15.1 19
Neck Diameter mm 50 80 125 127
Outer Diameter mm 473 473 473 500
Height mm 680 680 690 675
Static Evaporation Loss L/d 0.11 0.19 0.29 0.33
Static Hold Time d 333 187 123 142
Canister Outer Diameter mm 38 63 97 103
Canister Height mm 120/276 120/276 120/276 120/276
Numbers of Canisters ea 6 6 6 6
Straw Holding Capacity (single level) 0.5ml ea 792 2244 5124 6702
0.25ml ea 1788 5022 11952 14046
Straw Holding Capacity (double level) 0.5ml ea 1284 3624 9048 10704
0.25ml ea 2832 8460 19944 23604
Numbers of Canes ea 24 72 198 204
Numbers of Vials ea 120 360 990 1020
Optional Locking Cover ea √ √ √ √







   YDS-35,YDS-35-80,YDS-35-125,YDS-47-127
