Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Storage & Transportation Equipment > YDS Series Liquid Nitrogen Container
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
31.5L-35.5L
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
YDS Series Liquid Nitrogen TankNegotiableMOQ: 1 Piece -
YDS Series Liquid Nitrogen ContainersNegotiableMOQ: 1 Piece
-
YDS Series Dewar Vessle Small Capacity Large Caliber Liquid Nitrogen ContainerNegotiableMOQ: 1 Piece
-
YDS Series Liquid Nitrogen ContainerNegotiableMOQ: 1 Piece
-
YDS Series Liquid Nitrogen ContainersNegotiableMOQ: 1 Piece
Condition
New
Capacity
31.5L-35.5L
Place of Origin
Shanghai, China
Brand Name
KINGDAK
Model Number

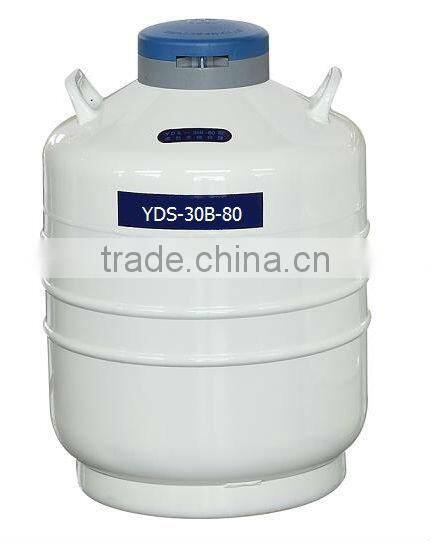

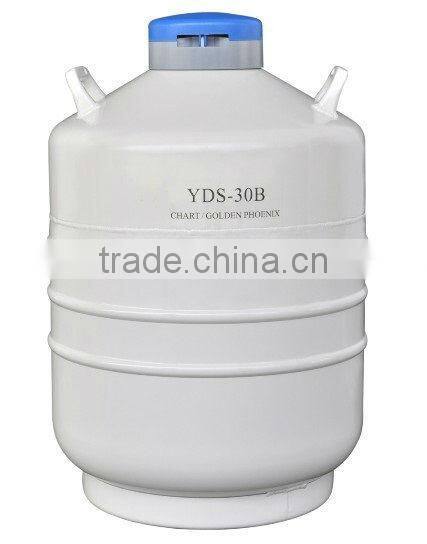

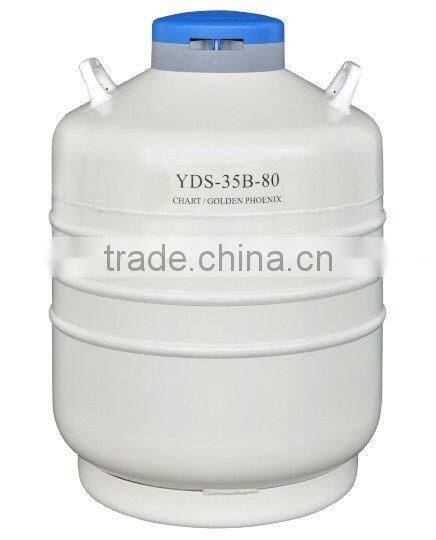

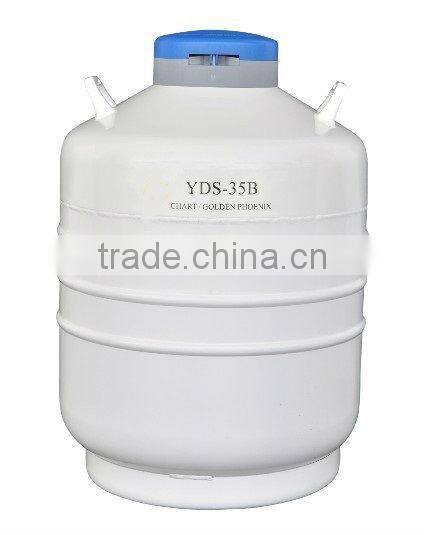

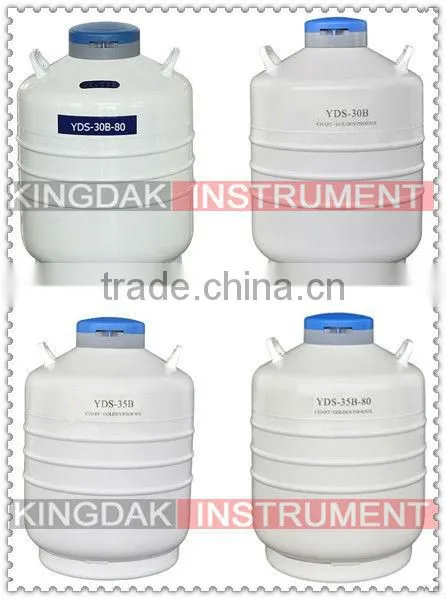

YDS-30B,YDS-30B-80,YDS-35B,YDS-35B-80
Specifications
Liquid nitrogen containers are high-strength aluminum alloy structure, light emptyweight.Dewar vessle Liquid Nitrogen Biological Container for Storage
Introduction:

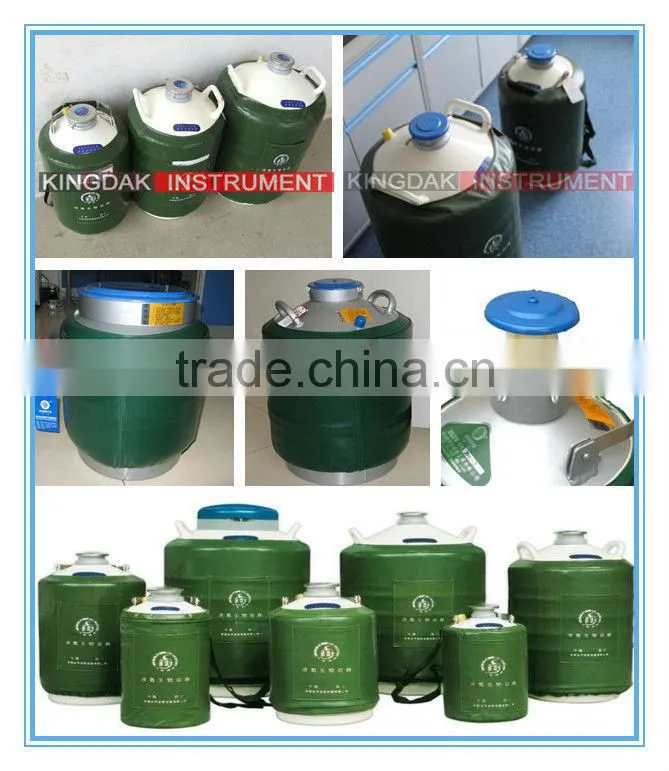

This series is designed for sample transportation with special side or bottom reinforcements.
Main Features:
High-strength aluminum alloy structure;
Multi-layer thermal isolation design;
Optional locking cover to protect stored biological samples;
Optional roller base to move the container easily;
Protective jacket to prevent collision;
Two-year vacuum warranty.
Specification:
| Model | Unit | YDS-30B | YDS-30B-80 | YDS-35B | YDS-35B-80 | |
| Capacity | L | 31.5 | 31.5 | 35.5 | 35.5 | |
| Empty Weight | kg | 13.1 | 13.7 | 14 | 14.3 | |
| Neck Diameter | mm | 50 | 80 | 50 | 80 | |
| Outer Diameter | mm | 446 | 446 | 473 | 473 | |
| Height | mm | 675 | 680 | 680 | 680 | |
| Static Evaporation Loss | L/d | 0.17 | 0.23 | 0.17 | 0.23 | |
| Static Hold Time | d | 191 | 136 | 215 | 154 | |
| Canister Outer Diameter | mm | 38 | 63 | 38 | 63 | |
| Canister Height | mm | 120/276 | 120/276 | 120/276 | 120/276 | |
| Numbers of Canisters | ea | 6 | 6 | 6 | 6 | |
| Straw Holding Capacity (single level) | 0.5ml | ea | 792 | 2244 | 792 | 2244 |
| 0.25ml | ea | 1788 | 5022 | 1788 | 5022 | |
| Straw Holding Capacity (double level) | 0.5ml | ea | 1284 | 3624 | 1284 | 3624 |
| 0.25ml | ea | 2832 | 8460 | 2832 | 8460 | |
| Numbers of Canes | ea | 24 | 72 | 24 | 72 | |
| Numbers of Vials | ea | 120 | 360 | 120 | 360 | |
| Optional Locking Cover | ea | √ | √ | √ | √ | |
YDS-30B,YDS-30B-80,YDS-35B,YDS-35B-80
