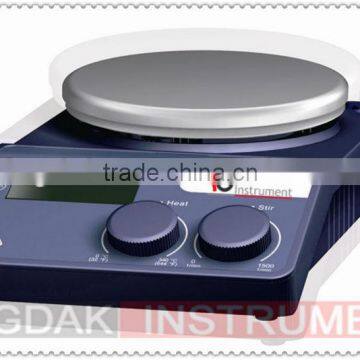

Digital (Hotplate) Magnetic Stirrer

Name: Digital (Hotplate) Magnetic Stirrer
Brand: KINGDAK
SKU: 141460252
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

KINGDAK

Model Number:

MS-H-Pro/ MS-Pro

Place of Origin:

Shanghai, China

Shanghai Kingdak Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Brand Name KINGDAK

Model Number MS-H-Pro/ MS-Pro

Place of Origin Shanghai, China

Digital (Hotplate) Magnetic Stirrer

Features

Magnetic stirrer suitable for unsupervised operation, with new stir technology
Automatic judgment stirring bar displacement and capture
Easy-to-read backlit LCD display
Fuzzy logic control microprocessor technology guarantee maximum control accuracy
A.B Mode ensure the stirring function not change due to external factors(MS-Pro)
PC control via RS232 interface, the special StirPC software, can realize the setting of instrument parameters on the PC and the display of working curves red-time, and this software can be download free on our website

Features of MS-H-Pro

High accuracy of heating temperature controlling and the control of safe temperature
Hotplate with stainless steel surface or porcelain enamel surface with excellent chemical resistance
2 adjustable safety circuits
Separateness temperature sensor, protection temperature can be set
Temperature sensor for heat transfer fluid and medium available(PT1000)
Warning display indicating presence of any residual heat when the unit is switched off
A, B, C Mode, ensure the stirring function not change due to external factors(MS-Pro)
Bushing according to DIN 12878 for the use of contact thermometers

Specifications

	MS-H-Pro	MS-Pro
Voltage [VAC]	100-120/200-240	100-120/200-240
Frequency [Hz]	50/60	50/60
Power [W]	550	50
Stirring point position quantity	1	1
Max. stirring quantity(H2O)[L]	20	20
Stirring point position quantity [mm]	80	80
Motor type	External rotor brushless motor	External rotor brushless motor
Motor rating input [W]	18	18
Motor rating output [W]	10	10
Speed range [rpm]	100-1500	100-1500
Speed display	LCD	LCD
Speed display accuracy [rpm]	1	1
Material	Porcelain enamel/Stainless steel	Porcelain enamel/Stainless steel
Dimension of Plate [mm]	φ135	φ135
Heating power [W]	500	--
Heat rate(1Lwater)[K/min]	6	--
Heating Temperature Range [°C]	RT-340	--
Temperature display	LCD	--
Temperature display accuracy [°C]	0.1	--
Control accuracy of heating temperature[°C]	1	--
Adjustable safety circuit(heating plate)[°C]	100-350	--
Control accuracy of heating temperature with temperature[°C]	0.2	--
Temperature sensor of extra position	PT1000	--
Dimension [mm]	280×160×85	280×160×85
Weight[kg]	2.8	2.8
Permissible ambient temperature [°C]	5-40	5-40
Permissible relative humidity	80%	80%
Protection class acc. to DIN EN60529	IP42	IP42
RS232 interfaces	Yes	Yes
