Specifications
1.waterworks2.treatment stations of domestic sewage
3.beverage factories
4.environmental protection departments
5.portable

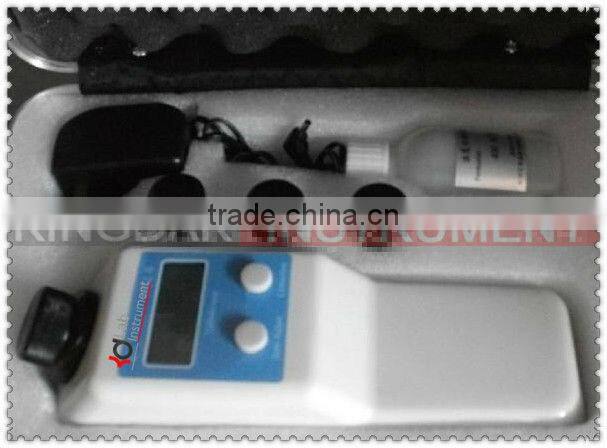

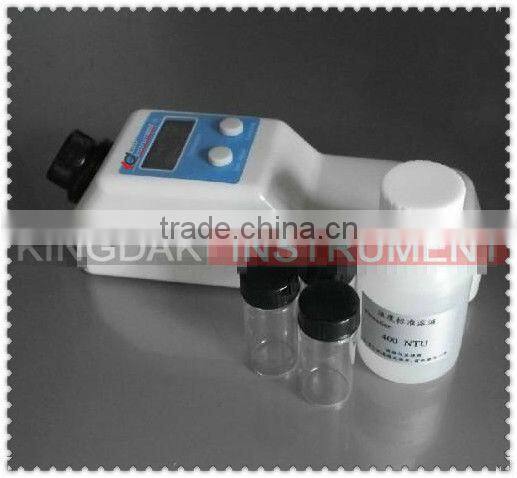

KGZ-20B/1B Portable turbidimeter
Summary of functions
KGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters.
It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.
Product Characteristics
a) AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;
b) Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery;
c) Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;
d) Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance
e) Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability;
f) Low voltage indication, cuing users to change battery, to ensure exact and effective measurement;
g) Configured with output port of measured values, possible to connect with recording meter
Specifications
Model | KGZ-20B | KGZ-1B |
Minimum Principle | 90º scattered light | |
Minimum readout NTU | 0.01 | 0.1 |
Measuring range NTU | 0-20 | 0-200 |
Basic error F.S | 8%(2.5%F.S) | 8%(2.5%F.S) |
Repeatability | 1% | 1% |
Zero draft NTU | 1%F.S | 1%F.S |
Power supply | DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter | |
External dimension | 235*75*65 mm | |
