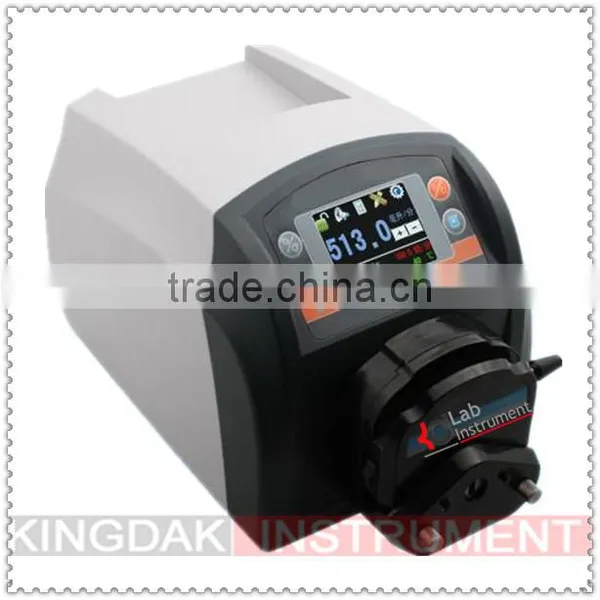

BT601F/YZ25 LCD Display and Touch Screen Intelligent Dispensing Peristaltic Pump

BT601F/YZ25 LCD Display and Touch Screen Intelligent Dispensing Peristaltic Pump photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KINGDAK
Model Number:
BT601F
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name KINGDAK
Model Number BT601F
Theory Electromagnetic Pump
Structure Gear Pump
Usage Other, viscosity fluid
Power Electric
Standard or Nonstandard Standard
Fuel Other, electricity
Pressure Low Pressure

  BT601F flow intelligent peristaltic pump

Feature:

• Color touch screen, making the information more intuitive and the operation more convenient;
• Intelligent expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
• Motor rotation angle precision control technology, reducing the dispensing errors under traditional time control distribution pattern due to motor slow start
• The expert operating system can prompt the tube specifications, materials, pump head types and other information, guiding the operator set peristaltic pump correctly according to the input flow, fluid volume, working hours and other data.
• Intelligent temperature control technology greatly reduces the operating noise of peristaltic pump;
• It has three kinds of distribution patterns, time dispense mdoe, fluid volume dispense mode, copying dispense mode. It can meet different needs,
• The function of accumulated distribution of liquid can record total liquid volume;
• Infrared remote control function, it can be non-contact control;
• Sleek lines plastic case design, suitable for laboratory use


Specification:



YZ15 Flow Range (ml / min)
Tube type
13#
14#
16#
25#
0.1-600 rpm
0.006~36
0.02~130
0.08~480
0.17~1000
Tube type
17#
18#


0.1-600 rpm
0.28~1700
0.38~2300



YZ25 Flow Range (ml / min)
Tube type
15#
24#


0.1-600 rpm
0.17~1000
0.28~1700

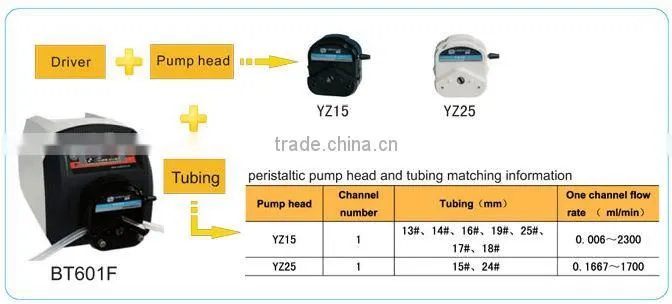

Drive

Pump heads

Channel

Applicable tubing(mm)

Single channel flow rate

(ml/min)

BT601F

(streamlined plastic case)

YZ15

1

13#14#16#19#25#17#18#

0.006~2300

YZ25

1

15#24#

0.1667~1700





Technical parameters
• Speed range: 0.1 ~ 600 rpm
• Speed resolution: 0.1 rpm, with accuracy 0.2%
• Display: 65535 color LCD + touch screen
• Supply Voltage: AC220V ± 10% 50/60HZ
• Power ratio: < 60W
• Working Environment: Temperature 0 ~ 40 °C Relative humidity <80%
• Protection level :IP31
• Dimensions: (L × W × H) 255mm×180mm×185mm
• Weight: 5.6kg

External control functions:
• External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V ,4-20mA ,0-10KHz speed control input; support RS485 bus, MODBUS communication protocol.



BT601F/YZ25 LCD display and touch screen intelligent dispensing peristaltic pump



BT601F/YZ25 LCD display and touch screen intelligent dispensing peristaltic pumpBT601F/YZ25 LCD display and touch screen intelligent dispensing peristaltic pumpBT601F/YZ25 LCD display and touch screen intelligent dispensing peristaltic pump
