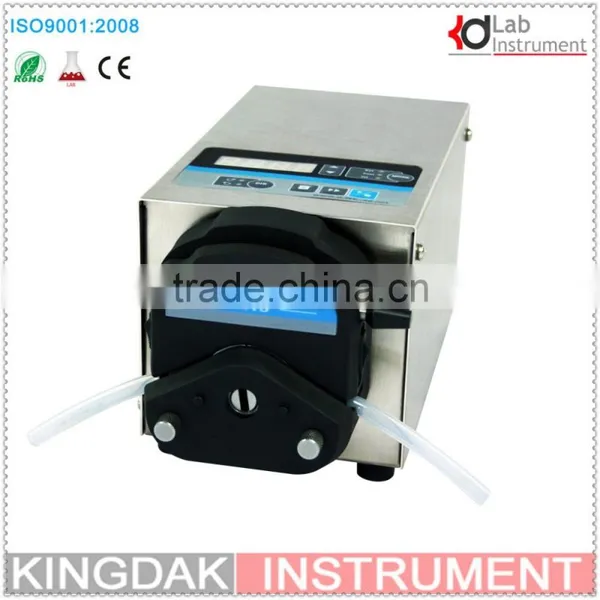

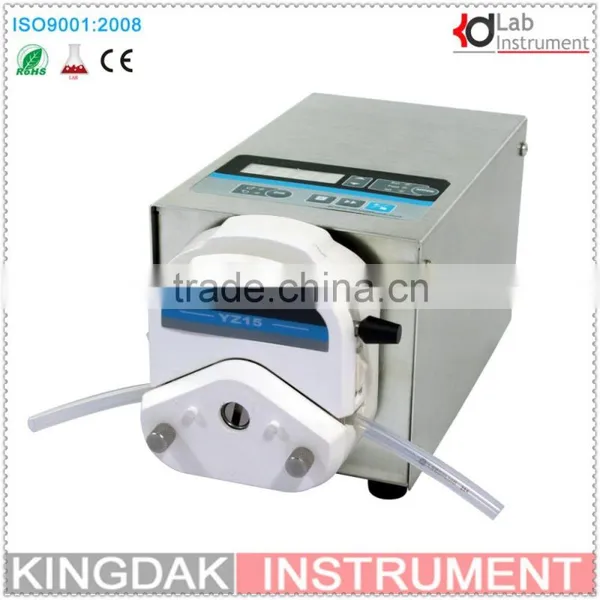

Easy-load Economic Price Peristaltic Pump BT102S With YZ25 Flow0.1667~280ml/min CE Peristaltic Pump

KBT102S peristaltic pump(speed regulation)

Function and Feature:

•Four-figure digital LED indicator displayers working speed.

• The LED indicator displays the internal control, external control mode.

•mask keypad operation.

• Reversible direction, start/stop and full speed, state memory (power-down memory).

• Easy dispensing function, it realizes the repeat timing quantitative dispensing,

•  Speed resolution is above 0.1rpm.

•Stainless steel housing, easy to chean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic Solvents.

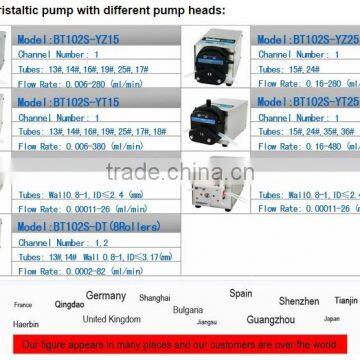

•  Can drive multi-channels and various types of pump heads.

•The circuit board with conformal coating makes it dust-proof and moisture-proof.

• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

• Extermal high-low electrical level controls the start/stop,reversible direction and easy dispensing function, optically coupled isolator; Extermal analog adjusts the rotate speed.

•5V, 12V, 24V level input options.

• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

• Optional footswitch or timer for dispensing fluid.

Technical parameters :

• Flow range :0.0001-480ml/min

• Speed range : 0.1-100rmp

• Speed resolution : 0.1 rmp

• Flow accuracy : <0.5%

• Power supply : AC 220V±10%,50Hz/60Hz(standard),AC110V±10%,50Hz/60Hz(optional)

• Power consumption : <30W

•External control :  Input level 5V,12V(standard),24(optional)

•Commumication interface :  RS485communication interface, MODBUS protocol is available.

• Operating condition : Temperature 0 ~ 40°C; Relative humidity <80%

• IP garde : IP31

• Dimensions : 224mm*127mm*128mm (L*W*H)

• Weight : 2.7KG

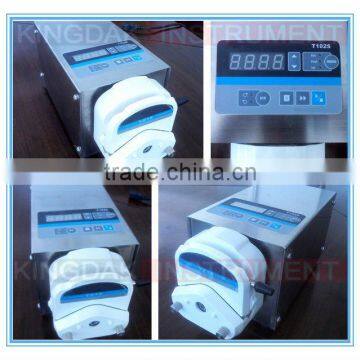

The control panel of the peristaltic pump:
