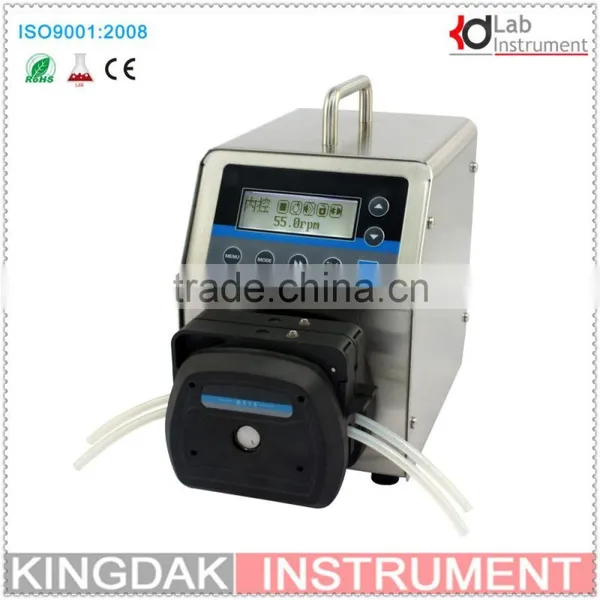

BT300S led digital display Precise variable speed peristaltic pump / dosing pump for water pumps fluid /DT15-24 head

BT300S Speed-Variable Peristaltic Pump

Function and Feature:

• Four-figure digital LED indicator displays working speed.

• The LED indicator displays the internal , external control mode.

• Mask keypad operation.

• Reversible direction, start/stop, full speed, state memory (power-down memory).

• Easy dispensing function, it realizes the repeat timing quantitative dispensing .

• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.

• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.

• Can drive multi-channels and various types of pump heads.

• Internal double-deck isolation structure;circuit board with conformal coating makes it dust-proof and moisture-proof

• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

• Optional footswitch or timer for dispensing fluid.

Technical parameters :

• Flow range :0.006-1600ml/min

• Speed range : 350mp

• Speed resolution : 1 rmp

• Flow accuracy : <0.5%

• Power supply : AC 220V±10%,50Hz/60Hz(standard),AC110V±10%,50Hz/60Hz(optional)

• Power consumption : <50W

•External control : Input level 5V,12V(standard),24(optional)

•Commumication interface : RS485communication interface, MODBUS protocol is available.

• Operating condition : Temperature 0 ~ 40°C; Relative humidity <80%

• IP garde : IP31

• Dimensions : 226mm*150mm*238mm (L*W*H)

• Weight : 4.9KG

The control panel of the peristaltic pump:

 A:speed-down keypad.

B:speed-up keypad.

C:mode conversion keypad. The mode could be changed from external control,food control to internal control.

D:Direction keypad.You could choose the positive rotation or the negative rotation.

E:Easy dispensing keypad.You could press this keypad to achieve easy dispensing when the pump is stopped.

F:Full speed keypad.This keypad could be used to change speed between max. and original condition.

G:Start/stop keypad.

The structure of the back view:

The packing of the peristaltic pump:
