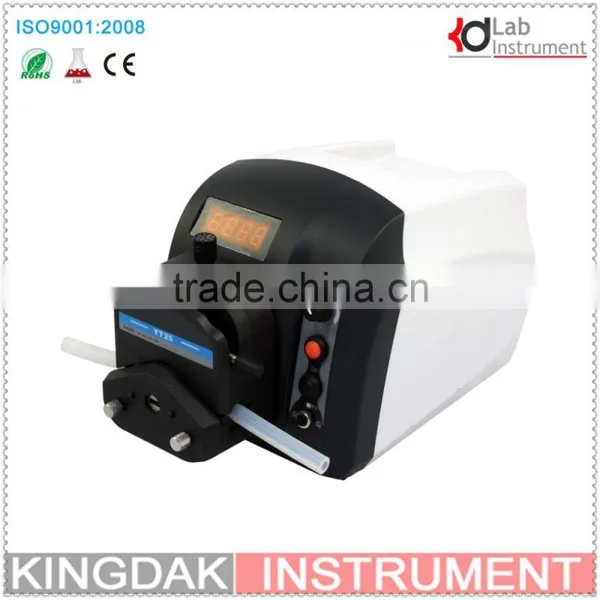

KBT301S / YT25 Variable Big Flow Speed Peristaltic Pump Fluid Water Dosing Pump 0.17 To1600 (ml / Min)

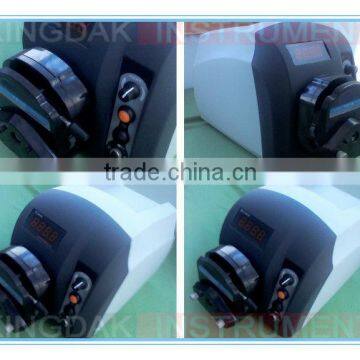

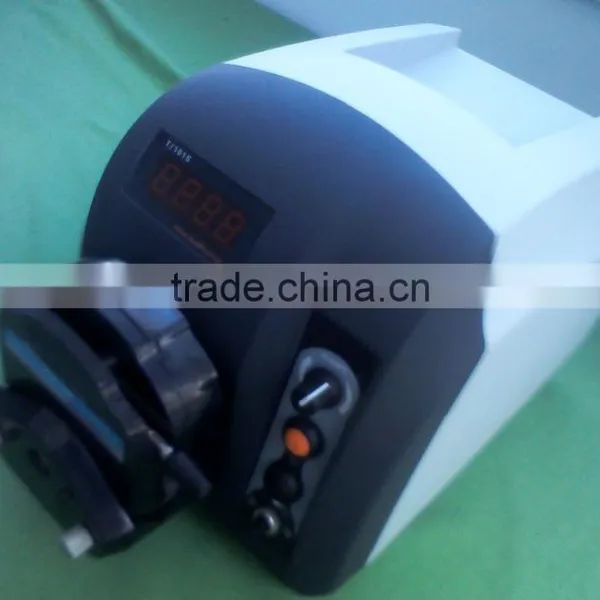

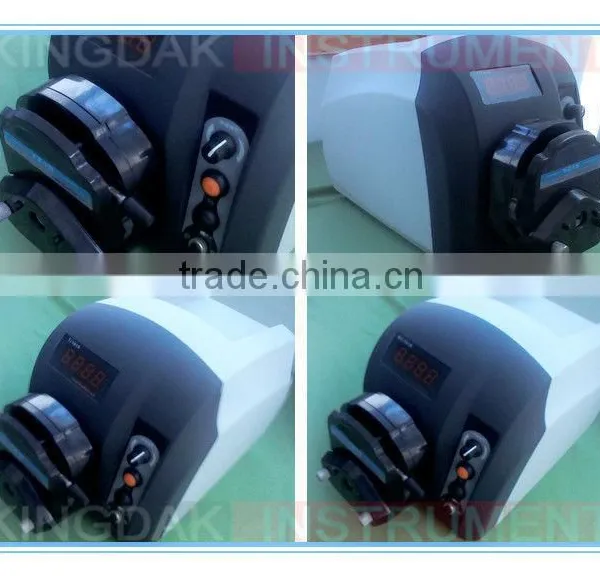

KBT301S variable speed peristaltic pump

LED display peristaltic pump price with reliable quality

BT301S Basic Speed –Variable Peristaltic Pump flow range is 0.006-1600ml/min. Rotate speed is 0.1-350rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC

Function and Feature

•Four-figure digital LED indicator displays working speed.

•LED indicator displays the internal control, external control, footswitch and other working mode.

•Mask keypad operation.

•Reversible direction, start/stop, full speed, state memory (power-down memory).

•Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.

• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.

•ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.

•Can drive multi-channels and various types of pump heads.

•The circuit board with conformal coating makes it dust-proof and moisture-proof.

•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

•External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

•RS485 interface, MODBUS protocol is available, easy to connect other equipments.

•Optional footswitch or timer for dispensing fluid.

  Technical parameters

• Flow range :0.006-1600ml/min

• Speed range : 350mp

• Speed resolution : 1 rmp

• Flow accuracy : <0.5%

• Power supply : AC 220V±10%,50Hz/60Hz(standard),AC110V±10%,50Hz/60Hz(optional)

• Power consumption : <40W

•External control :  Input level 5V,12V(standard),24(optional)

•Commumication interface :  RS485communication interface, MODBUS protocol is available.

• Operating condition : Temperature 0 ~ 40°C; Relative humidity <80%

• IP garde : IP31

 • Dimensions : 261mm*180mm*197mm (L*W*H)

• Weight : 4.7KG



KBT301S Applicable pump head and tubing, flow parameters

Drive type	Pump head	channel	Tube size(mm)	Flow rate
				(ml/min)
				one channel
BT301S	YZ15	1	13#14#16#19#25#17#18#	0.006~990
(Streamline plastic house)	YZ25	1	15#24#	0.1667~990
	YT15	1	13#14#16#19#25#17#18#	0.006~1300
<0.1MPa	YT25	1	15#24#35#36#	0.17~1600

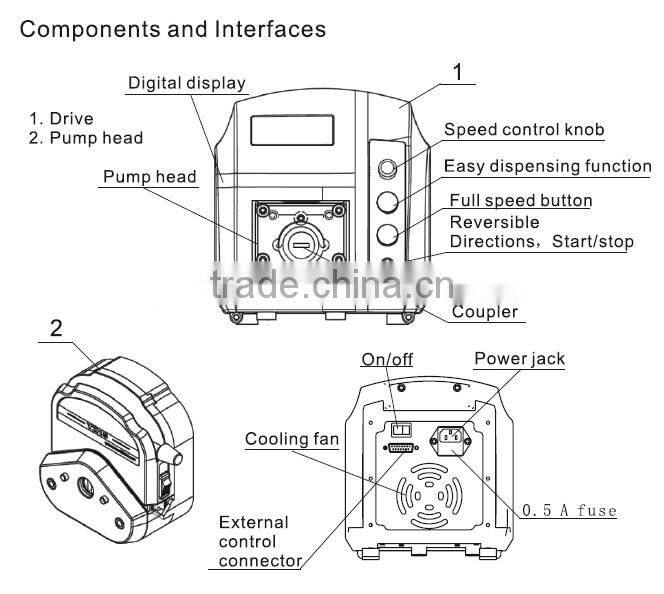

  The control panel of the peristaltic pump:

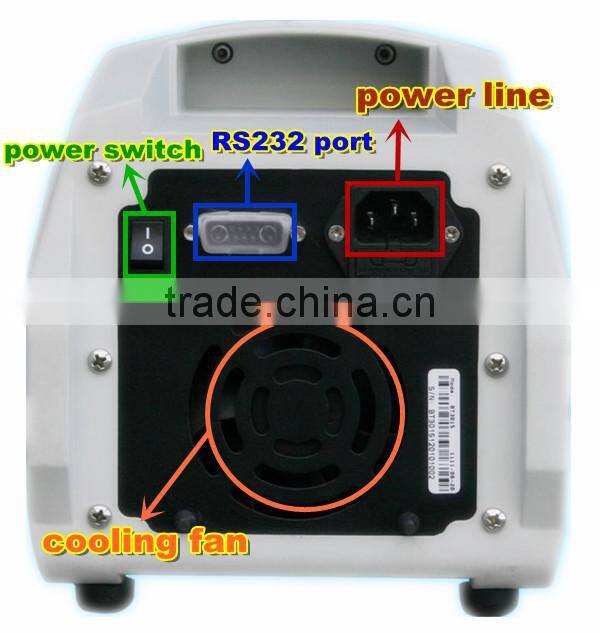

The structure of the back view:

After Sales:

Shipment : We will send out your order within 7 days via express.

Usually it takes about 5-7 days on the way to worldwide, but sometimes some delay would happen out of our controls, hope you could wait in patience and understand this.

 if you need other Pump heads, please leave me message or chat with me online.we keep our lowest price and best quality to u.

Problems:  If there is any problems or defective, do not leave me negative feedback and please do not hesitate to contact me and i will do my best to assist you. And our items are all good quality and 100% Quality assurance

The packing of the peristaltic pump:
