lab freeze drying equipment
Technical performance:
GFD-0.5 mini freeze dryer machine is consisted of freezing and drying pot, vacuum pumps, heating system, refrigerating machines, pre-frozen system and control system, etc.
In composition and design, GFD-0.5 is a miniaturization of large equipment, so that craft curve made by GFD-0.5 could extensively apply with large equipment’s industrial production. Compared with the larges, GFD-0.5 has a larger capacity in vacuum, refrigeration and heating, convenient for various trial studies of specific technics.
The whole processing line including the following parts
1. pretreatment system
2. freezing and drying tank
3. heating system
4. vacuum system
5. refrigeration system
6. material conveyor
7. control system
pretreatment system→frozen(controlled by refrigeration system)→vacuum drying(controlled by heating&vacuum system)→packing
Main technical parameters:
drying area: 0.5m2
average output: 0.6kg/h
size of material tray: 310*540*30mm
number of tray: 3 pcs
size of pot: 0.5*1.7m
operation vacuum:13.3-200pa
heating plate temperature: normal temperature~+120°C
electric heating: 2kw
cold load consumption: 1.5kw
power required: 6.5kw

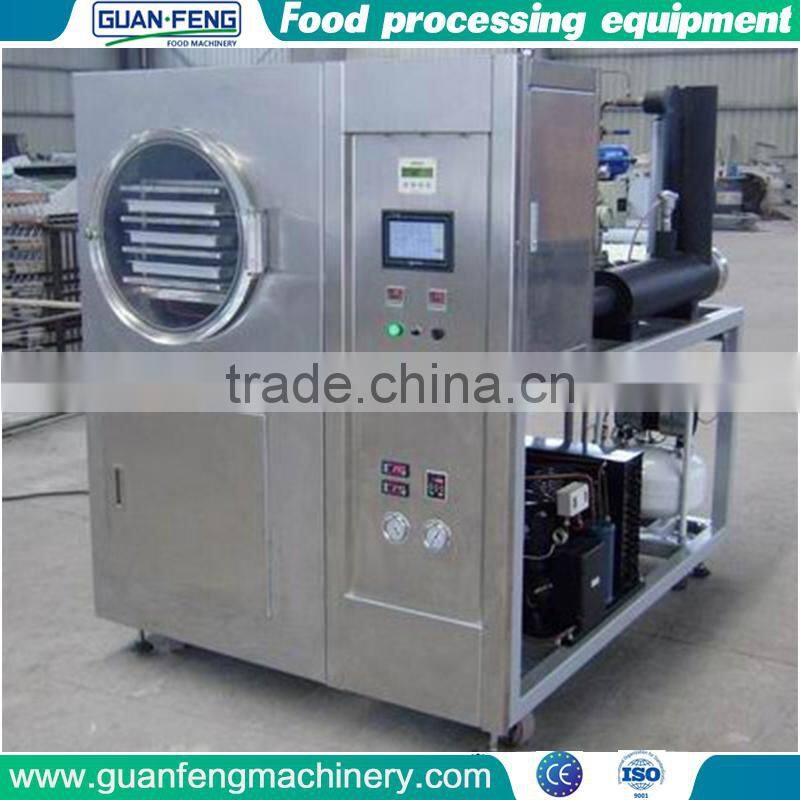

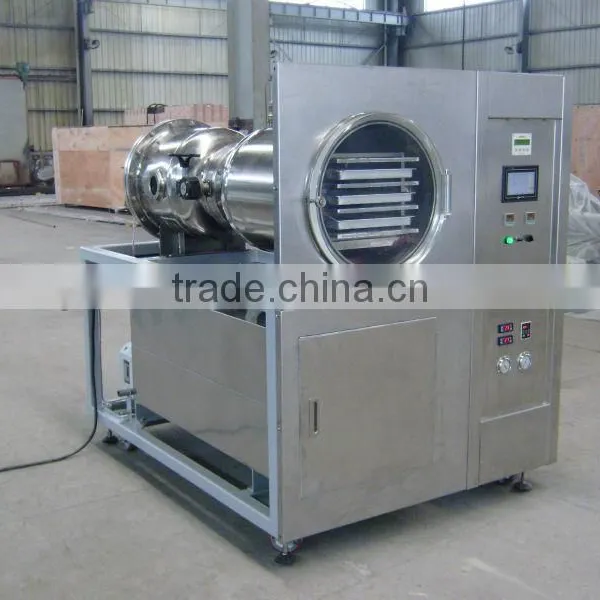

The vacuum experimental meter The control panel
The hot water pump The vacuum system

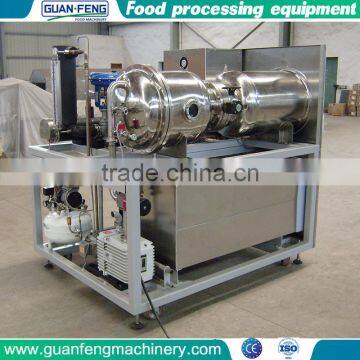

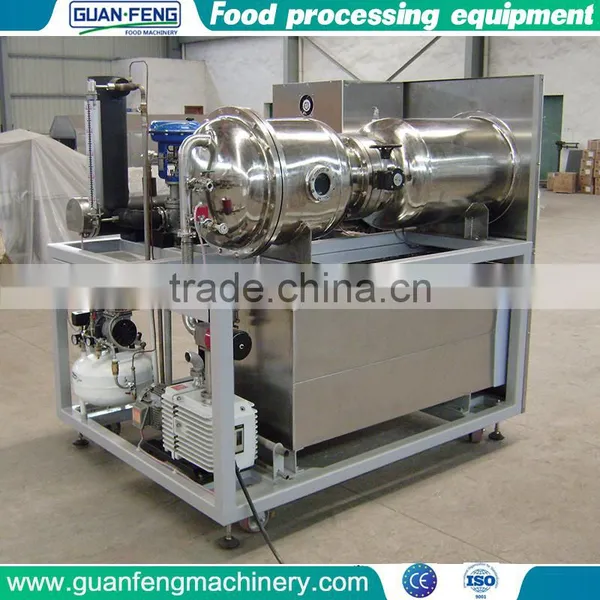

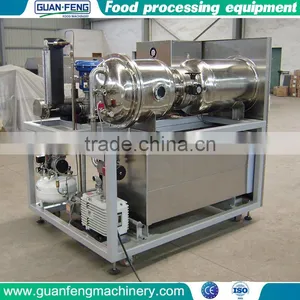

The inner parts of the machine
