2017 best offer green sand casting machine
- 2147483647 Set / Sets per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
- Supply Wax Injection Machine for the investment casting line
- supply semi-automatic Dewaxing Autoclave for investment casting industriy
- New energy copper and aluminum busbar bending machine Copper busbar stamping CNC machine
- WATER MOLD TEMPERATURE MACHINE
- OIL TYPE MOLD TEMPERATURE MACHINE
- WATER-COOLED INDUSTRIAL CHILLER
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HENGLIN |
Model Number: | Customized | Voltage: | customized | Power(W): | customized |
Dimension(L*W*H): | customized | Weight: | customized | Certification: | ISO9001:2008 |
Warranty: | 3 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

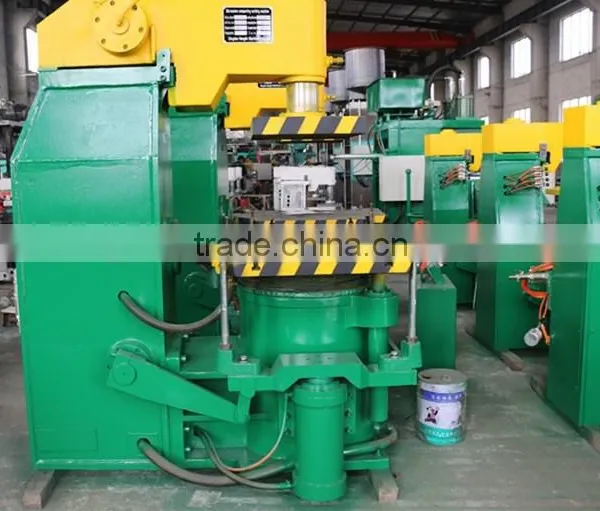

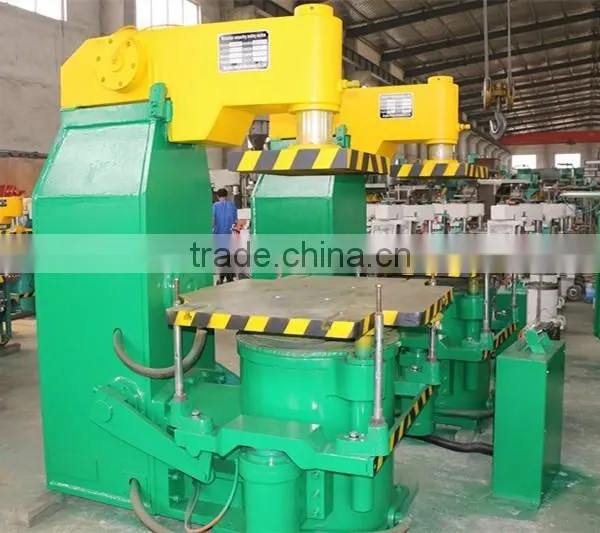

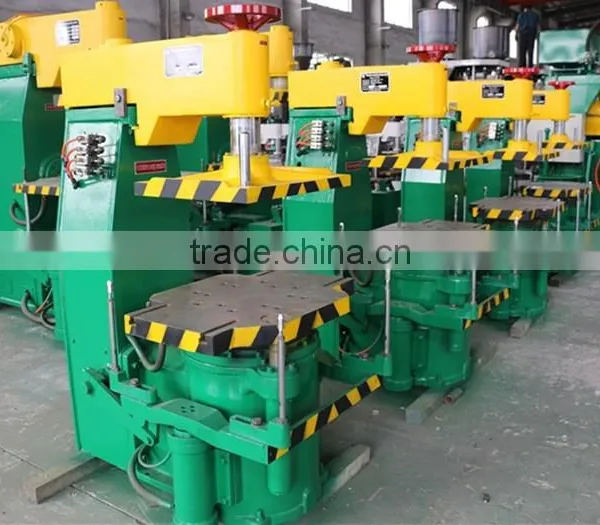

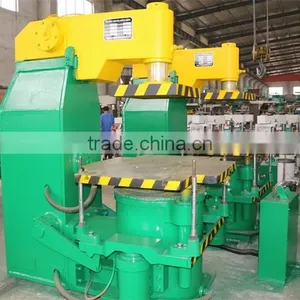

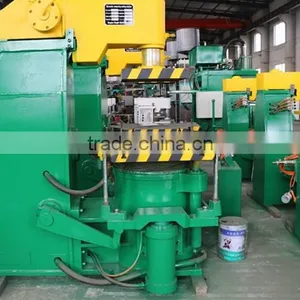

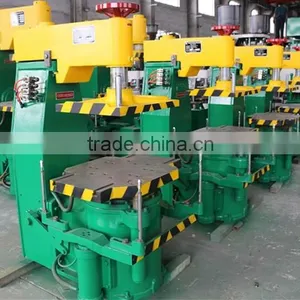

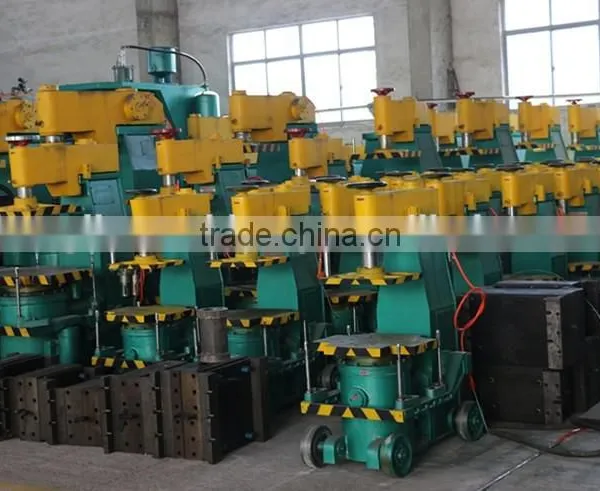

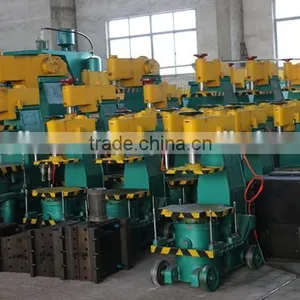

Jolt Sequeeze Molding Machine
Including various types of pneumatic micro Jolt Molding Machine,contact molding machine horizontal(vertical) type cold(hot) core box shoot core machine,shell core machine, aluminum alloy automatic pouring machine.According to the different casting,making shell.Shell will be buried in the quartz sand or (grit), or direct molding;produce high quality castings;equipment covers small area,saving cost,will get much more pfofit.
Item | Foundry Flask Maximum Dimension(mm) | Worktable Dimension(mm) | Jolting Load(Kgf) | Compressive Stress(Kgf) | Compress Process(mm) | Moulding Process(mm) | Productivity(carton/hour) | Jolting Cylinder Diameter ( ∅ mm) | Consumption of Free Air (m³/carton) | Outline Dimension L*W*H(mm) |
Z145WA | 500x450x200 | 600x550 | 300 | 5500 | 200 | 180 | 40-60 | ∅150 | 0.4m³/carton | 1300x800x1700 |
Z145WB | 500x450x200 | 600x550 | 300 | 6300 | 200 | 2000 | 40-60 | ∅150 | 0.4m³/carton | 1200x800x1680 |
Z146W | 600x500x250 | 700x550 | 400 | 7500 | 200 | 220 | 40-60 | ∅150 | 1200x800x1680 | |
Z148W | 800x600 | 900x730 | 600 | 10000 | 200 | 250 | 40-60 | 1760x1180x2280 |
PACKING: EXPORT PACKING:big parts on a wooden pallet and wrapping by film, single parts put together on wooden pallet and wrapping by film, precise parts packing by wood. (Packing woods are not recycled.)
SHIPMENT MARK(S): On the surface of each package, a corresponding shipping mark in the English language shall be stenciled legibly in fadeless or shipping labels tie on non-packing packages in the English language.
AFTER-SALES SERVICE:we have a professional technician team,if clients need us,we will install and test equipment ON-SITE.
CUSTOMERS VISITING:
Welcome to contact us or visit our factory.
